Открытый узел

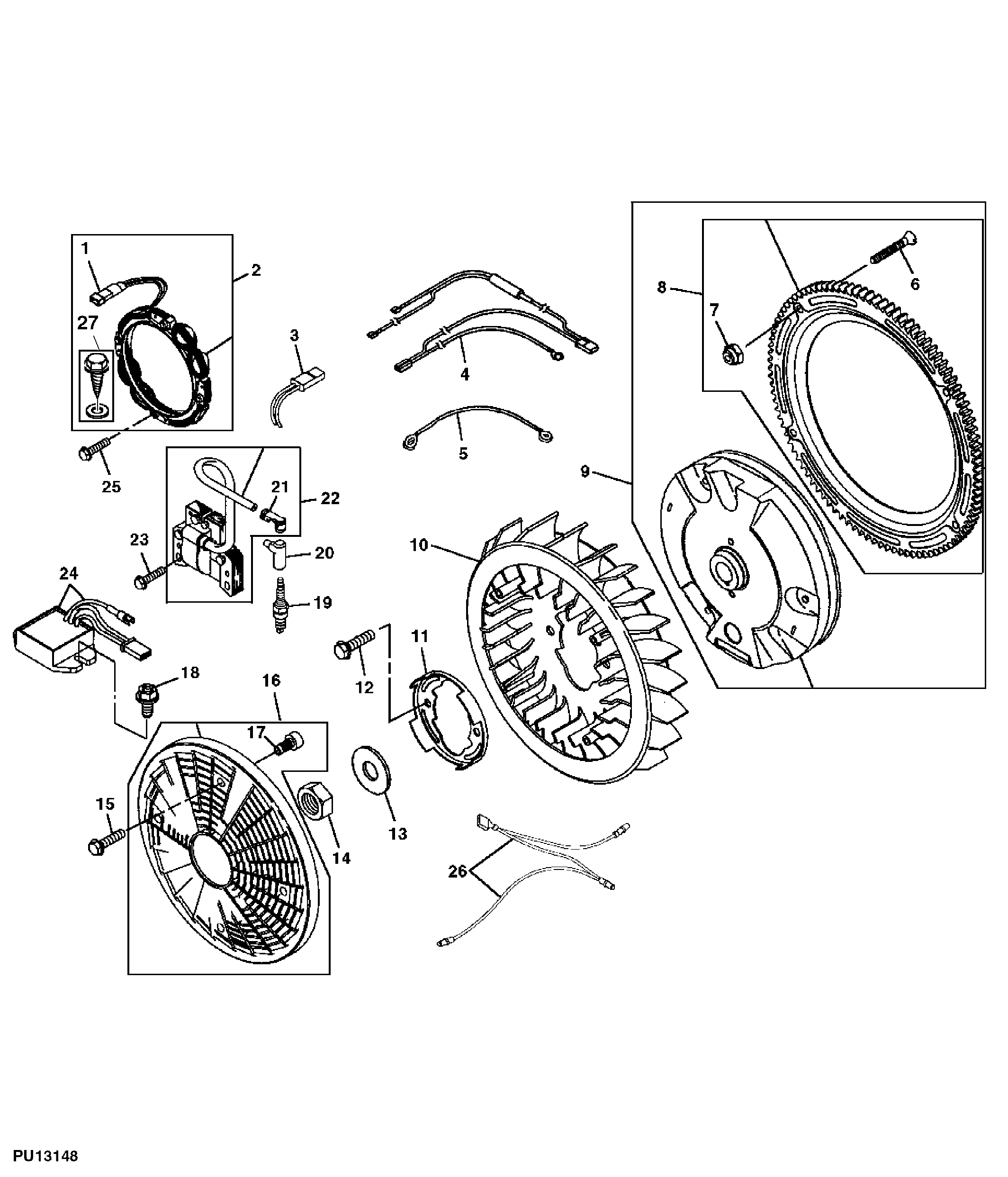

Flywheel, Screen and Engine Electrical Parts

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LG393456	1	Wiring Lead	ENGINE MARKED 406777-0115-E1
1	LG399916	1	Wiring Harness	ENGINE MARKED 407777-0027-E1; ORDER AM132174
1	LG393537	1	Electrical Connector Assy	USE WITH M147559
2	AM132174	1	Alternator	10 A, ENGINE MARKED 407777-0027-E1; ORDER MIA12785
2	MIA12785	1	Alternator	10 A, ENGINE MARKED 407777-0027-E1
2	AM132175	1	Alternator	3 AMP, ORDER MIA12850; ENGINE MARKED 406777-0115-E1
2	MIA12850	1	Alternator	3 AMP, ENGINE MARKED 406777-0115-E1
2	MIA12776	1	Alternator	SUB FOR M147559
3	LG398661	1	Wiring Harness	SUB FOR LG691237
4	LG691220	1	Wiring Harness	-
4	M144616	1	Clip	WIRE (NOT ILLUSTRATED)
4	AM133285	1	Wiring Harness	USE WITH MIA10361
5	AM131023	1	Wire	ENGINE STOP (ENGINE MARKED 407777-0027-E1)
6	M146572	4	Screw	-
7	LG693148	4	Nut	-
8	LG499612	1	Ring Gear	-
9	AUC17335	1	Flywheel Kit	ENGINE MARKED 407777-0027-E1; SUB FOR AM131025
9	LG691054	1	Flywheel	ENGINE MARKED 406777-0115-E1
10	M150601	1	Fan	ORDER MIA13147, SUB FOR LG691243
10	MIA10299	1	Fan	USE WITH MIA10361
11	LG691247	1	Retainer	-
12	LG691058	2	Bolt	-
13	LG691056	1	Washer	-
14	14H810	1	Nut	7/8"
15	AM134850	4	Screw	SUB FOR LG691057
16	LG494439	1	Screen	SUB FOR LG497417 OR LG691055
17	LG691215	4	Spacer	-
18	LG692067	2	Cap Screw	(A)
18	MIU11040	2	Screw	USE WITH MIU12514
19	M78543	2	Spark Plug	-
20	LG66538S	2	Boot	-
21	LG493880S	1	Elec. Connector Terminal	-
22	MIA12346	2	Armature	ORDER MIA12788
22	MIA12788	2	Armature	-
22	LG691060	2	Electrical Coil	ORDER MIA12346
23	LG691061	4	Bolt	-
24	LG691185	1	Voltage Regulator	(A), ORDER MIU12514
24	MIU14388	1	Voltage Regulator	SUB FOR MIU12514
25	21H1319	4	Screw	0.164" X 7/8"
26	AM129702	1	Jumper	(A)
27	AM135094	1	Hardware Kit	USE WITH M147559, AM132174 AND MIA12776
28	MIA13147	1	Housing	(Not Illustrated) Blower
..	AM129744	1	Regulator Kit	10 AMP, Stator (ENGINE MARKED 406777-0115-1E) (INCLUDES PARTS MARKED (A)) (SEE SIB 01-11-25-13)
..	LG280275	1	Tie Band	USE WITH MIA10361)

Flywheel, Screen and Engine Electrical Parts
