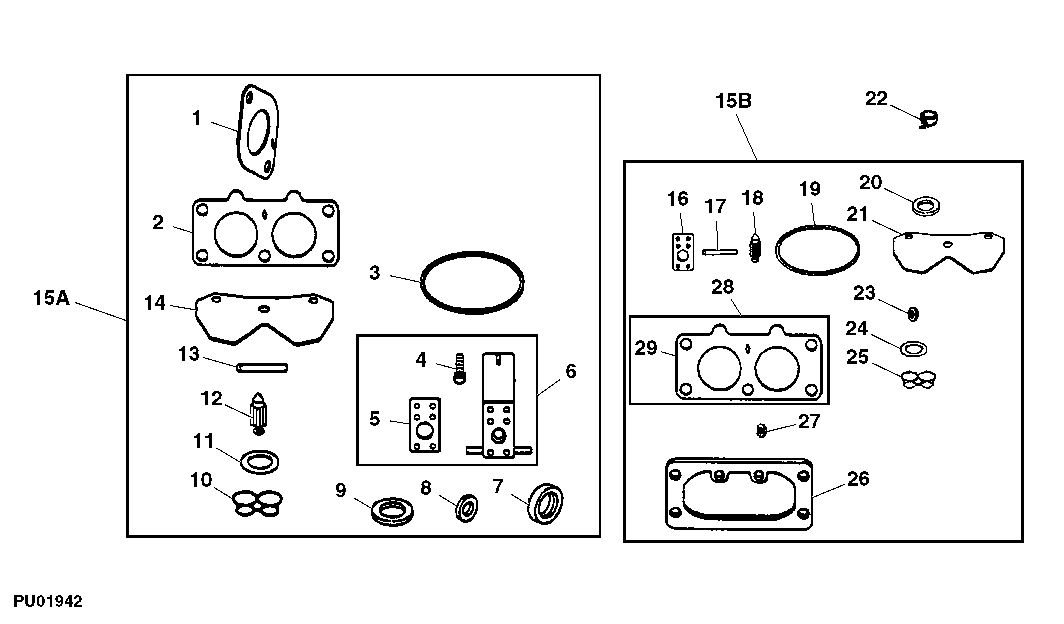

Carburetor Repair Kit (Carburetor Marked 699709)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LG690949	2	Gasket	INTAKE
2	LG690950	1	Gasket	(A) CARBURETOR INTAKE
3	LG690994	1	Gasket	FLOAT BOWL
4	LG690990	1	Screw	-
5	LG690995	1	Gasket	NOZZLE
6	AM134088	1	Nozzle	CARBURETOR
7	LG691000	1	Seal	(A) THROTTLE SHAFT
8	LG690998	1	Seal	(A) CHOKE SHAFT
9	LG690997	1	Sealing Washer	(A)
10	LG690988	1	Seal	-
11	M151309	1	O-Ring	(A) SOLENOID
12	MIU12706	1	Valve	NEEDLE, (SUB FOR LG690985)
13	M144321	1	Pin Fastener	FLOAT HINGE
14	LG690234	1	Gasket	(A) PLATE
16	LG690995	1	Gasket	NOZZLE
17	M144321	1	Pin Fastener	FLOAT HINGE
18	MIU12706	1	Valve	NEEDLE, (SUB FOR M151308 OR LG690985)
19	LG690994	1	Gasket	FLOAT BOWL
20	M144324	1	Washer	(SUB FOR MIU12507)
21	LG690234	1	Gasket	PLATE
22	LG690998	1	Seal	CHOKE SHAFT
23	LG691000	1	Seal	THROTTLE SHAFT
24	MIU11271	1	O-Ring	SOLENOID RETAINER
25	LG690988	1	Seal	-
26	LG691001	1	Gasket	AIR CLEANER
27	M153274	1	Seal	THROTTLE SHAFT
28	MIU11985	3	Gasket	INTAKE
29	LG690950	6	Gasket	INTAKE
..	MIA10882	1	Gasket Kit	CARBURETOR (INCLUDES PARTS MARKED (A)) (SUB FOR AM134104) (SUB MIA10854)
15A	AM134102	1	Gasket Kit	Carburetor Repair; NLA; ORDER MIA10854
15B	MIA11779	1	Carburetor Kit	-
15B	MIA10854	1	Gasket Kit	Carburetor Repair; NLA; ORDER MIA11779

Carburetor Repair Kit (Carburetor Marked 699709)
