Primary Valve Stack, W/ Grain Tank Doors, 26 ft

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5002	1	Adapter Fitting	-
2	T77613	6	O-Ring	-
3	51M7041	7	O-Ring	11.300 X 2.200 mm
4	38H5005	1	Adapter Fitting	-
5	T77858	1	O-Ring	-
6	51M7047	1	O-Ring	23.600 X 2.900 mm
7	38H5006	2	Adapter Fitting	-
8	T76938	2	O-Ring	-
9	51M7048	2	O-Ring	29.600 X 2.900 mm
10	38H5009	1	Adapter Fitting	-
11	T77857	2	O-Ring	-
12	38H5076	1	Adapter Fitting	-
13	51M7045	2	O-Ring	19.300 X 2.200 mm
14	38H5035	1	Elbow Fitting	-
15	51M7042	5	O-Ring	13.300 X 2.200 mm
16	38H5010	1	Adapter Fitting	-
17	38H5030	1	Tee Fitting	-
18	T77932	2	O-Ring	-
19	AXE73737	1	Seal Kit	USE WITH AXE73736
19	AXE73736	1	Check Valve	D33, Grain Tank Door, SUB FOR AH205583 APPL
19	F433465	1	Seal Kit	USE WITH AH205583
19	AXE73736	1	Check Valve	D32, Unloading Auger Swing, SUB FOR AH205583 APPL
20	AH228044	3	Solenoid Valve Coil	-
21	AH230746	4	Solenoid Valve Coil	-
22	AN206491	1	Check Valve	D40, Pressure Capture
22	AT224862	1	Seal Kit	-
23	AN221521	1	Spool Valve	Y1, Pressure Supply Solenoid Valve Primary Control Orifice, O25
23	AT224862	1	Seal Kit	-
24	AN221523	1	Spool Valve	Y14, Unloading Auger Swing Retract Unloading Auger Swing Extend, Y15
24	AN221523	1	Spool Valve	Y210, Grain Tank Cover Solenoid Valve (Close)
24	F433465	2	Seal Kit	-
25	AT302908	1	Solenoid Valve	Y6, Threshing Speed Increase
25	AH209121	1	Seal Kit	-
26	AXE15625	1	Solenoid Valve	Y202, Threshing Speed Increase/Decrease
26	AT224862	1	Seal Kit	-
27	38H5037	3	Adapter Fitting	-
28	38H5011	1	Adapter Fitting	-
29	N223292	2	Nut	-
30	AXE15631	1	Check Valve	V7, Shuttle Valve
30	AH209121	1	Seal Kit	-
31	T77814	2	O-Ring	-
32	AXE15632	1	Flow Control Hyd. Valve	V120, Bleed Down
32	AH209116	1	Seal Kit	-
33	AXE15629	1	Pressure Relief Valve	V61, Threshing Speed
33	AXE15629	1	Pressure Relief Valve	V133, Grain Tank
33	AT224862	2	Seal Kit	-
34	AXE15633	1	Valve	V121, Steering Priority
34	F304050	1	Seal Kit	-
35	51M7043	1	O-Ring	15.300 X 2.200 mm
36	-	1	Part 50	(Yellow)
37	H170523	1	Washer	(Green)
38	-	1	Part 52	(Red)
39	-	1	Part 53	(Orange)
40	H170526	1	Washer	(Light Blue)
41	N305926	1	Orifice	-
42	R77175	5	Cover	-
43	RE190805	1	Diagnostic Coupling	X31, Supply Pressure
43	RE190805	1	Diagnostic Coupling	X54, Steering Line Signal
43	RE190805	1	Diagnostic Coupling	X28, Signal Pressure
43	RE190805	1	Diagnostic Coupling	X29, Brake Pressure
43	RE190805	1	Diagnostic Coupling	X53, Steering
44	RE225377	2	Fitting Plug	-
45	HXE30516	1	Orifice	-
46	AXE62694	1	Orifice	O24, Signal Line Supply
47	HXE15810	1	Orifice	-
48	HXE15811	1	Orifice	-
49	38H5178	1	Adapter Fitting	-
50	RE315707	1	Fitting Plug	-
51	AXE62977	1	Valve Stack	-
52	RE315706	1	Fitting Plug	-
53	RE308225	1	Orifice Kit	O12, Threshing Speed Orifice

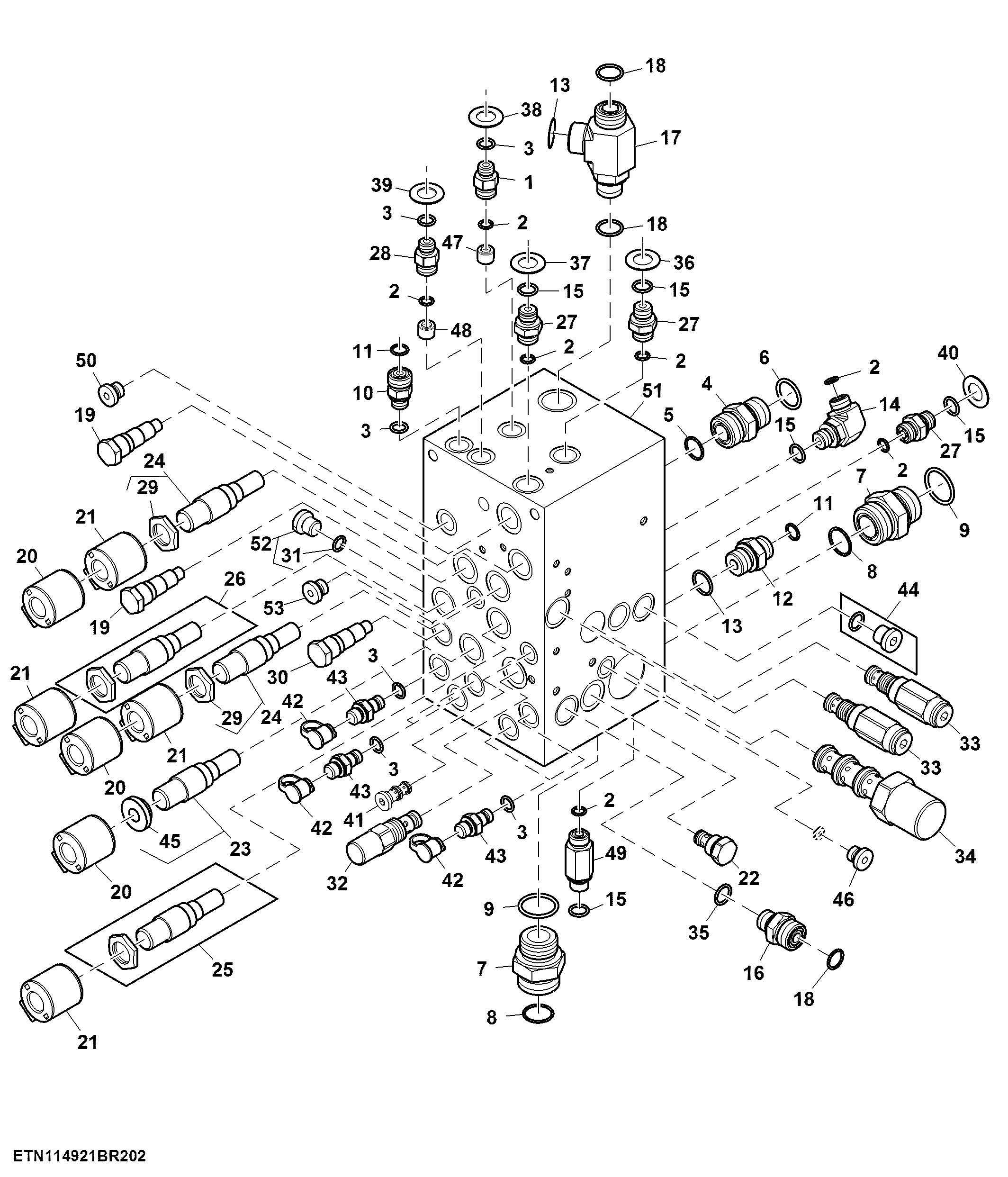

Primary Valve Stack, W/ Grain Tank Doors, 26 ft
