Открытый узел

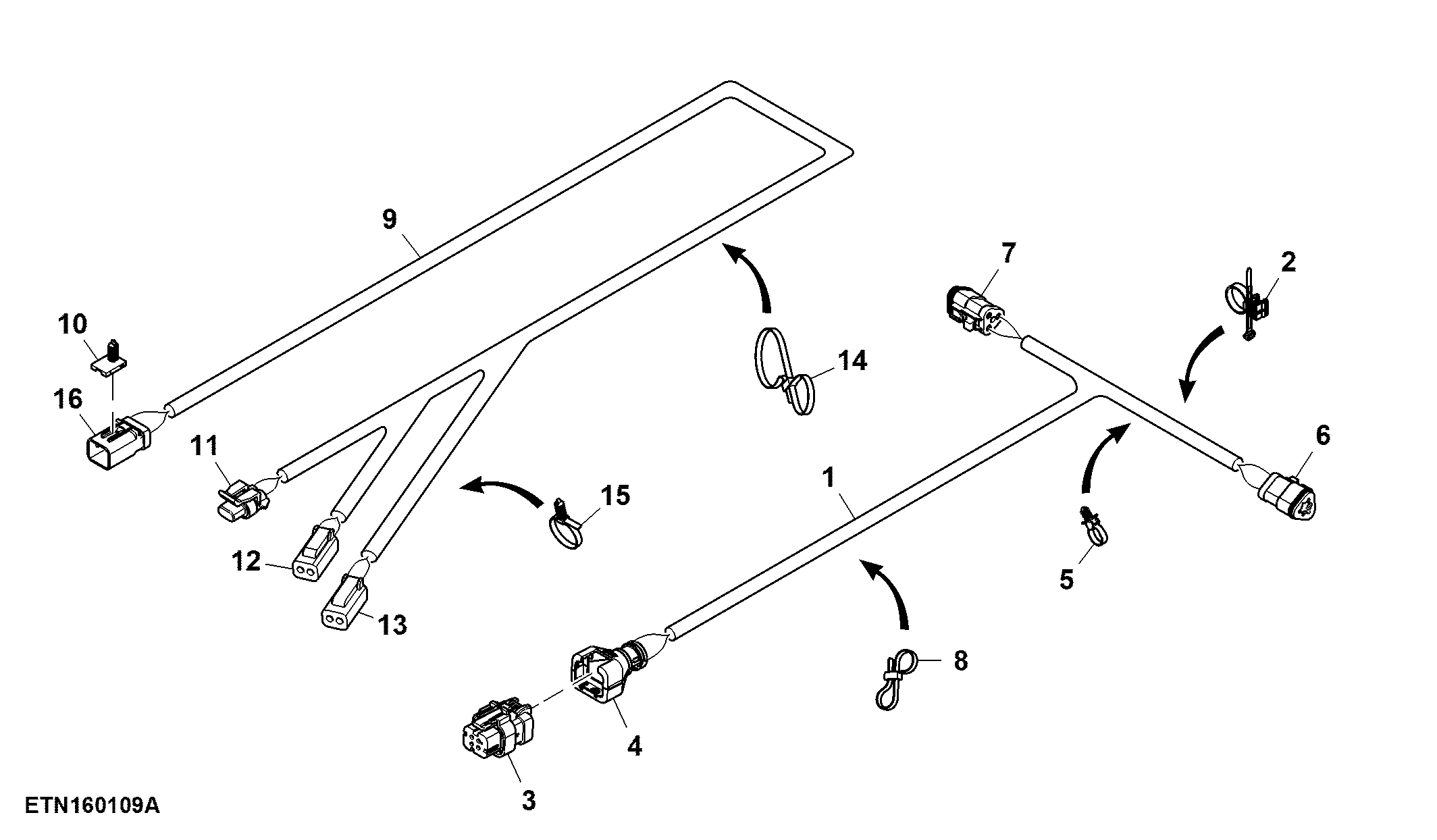

Wiring Harness, HillMaster™ Tilt Sensor W/ Active Terrain Adjustment™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE41735	1	Wiring Harness	Active Terrain Adjustment™ Harness
2	AH225365	1	Clip	-
3	57M9817	1	Elec. Connector Housing	LC1 Main Harness / Chassis Tilt Sensor Extension Harness
3	57M9808	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
4	57M9839	1	Elec. Connector Accessory	-
5	57M10233	3	Tie Band	-
6	57M11285	1	Elec. Connector Accessory	-
6	57M8019	1	Elec. Connector Terminal	-
6	57M9808	3	Elec. Connector Terminal	Cavity A, B, C
6	57M9652	1	Elec. Connector Terminal	B130 Up-Hill / Down-Hill Pitch Sensor
7	57M9652	1	Elec. Connector Terminal	B70 Chassis Tilt Position Sensor
7	57M9808	3	Elec. Connector Terminal	Cavity A, B, C
7	57M8019	3	Elec. Connector Terminal	-
7	57M11285	1	Elec. Connector Accessory	-
8	57M10421	5	Elec. Connector Accessory	-
9	AXE18132	1	Wiring Harness	Chassis Tilt Harness
10	57M9939	1	Elec. Connector Accessory	-
11	57M7254	1	Elec. Connector Housing	Y86 Chassis Tilt Left Solenoid
11	57M9215	2	Elec. Connector Seal	Cavity A, B
11	57M9712	1	Elec. Connector Accessory	-
11	57M9541	2	Elec. Connector Terminal	Cavity A, B
12	57M10517	1	Elec. Connector Housing	Y87 Chassis Tilt Right Solenoid
12	57M8165	2	Elec. Connector Terminal	Cavity A, B
12	57M8022	1	Elec.Connect Locking Device	-
13	57M10517	1	Elec. Connector Housing	Y90 Chassis Lowering Solenoid
13	57M8165	2	Elec. Connector Terminal	Cavity A, B
13	57M8022	1	Elec.Connect Locking Device	-
13	57M10486	1	Elec. Connector Accessory	-
14	57M10421	9	Elec. Connector Accessory	-
15	57M10233	3	Tie Band	-
16	57M9796	1	Elec. Connector Housing	LC2 Harness / Chassis Tilt Harness
16	57M10603	6	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 7
16	57M9842	1	Elec. Connector Accessory	-
16	57M9939	1	Elec. Connector Accessory	-

Wiring Harness, HillMaster™ Tilt Sensor W/ Active Terrain Adjustment™

Нет текстового описания
