Большое обновление пильных узлов

Смотреть

Открытый узел

Wiring Harness, ActiveVision™, Cab Video

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE51324	1	Wiring Harness	Image Processing Module to Cab Wall Video Harness
2	57M9821	1	Elec. Connector Housing	A117 Camera Cable Jumper / Video Camera 1
2	57M9840	1	Elec. Connector Accessory	-
2	57M9841	1	Elec. Connector Accessory	-
2	57M9812	2	Elec. Connector Terminal	Cavity 3, 4
2	57M10336	2	Elec. Connector Cavity Plug	Cavity 1, 2
3	57M10421	4	Elec. Connector Accessory	-
4	AH76882	1	Clip	-
5	14M7298	2	Flange Nut	M8
6	19M7865	2	Screw	M8 X 16
7	57M10334	4	Elec. Connector Cavity Plug	Cavity L1, L2, M1, M2
7	57M10613	1	Elec. Connector Housing	-
7	57M10617	4	Elec. Connector Housing	Cavity L3, L4, M3, M4
7	57M10333	36	Elec. Connector Cavity Plug	Cavity A1, A2, B1, B2, B3, B4, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, F4, G1, G2, G3, G4, H1, H2, H3, H4, J1, J2, J3, J4, K1, K2
7	57M10590	2	Elec. Connector Housing	Cavity A3, A4
7	57M10615	1	Elec. Connector Housing	A170 Grain Quality Image Processing Module
7	57M10330	2	Elec. Connector Terminal	Cavity K3, K4
8	57M9812	2	Elec. Connector Terminal	Cavity 9, 10
8	57M9814	4	Elec. Connector Cavity Plug	Cavity 1, 2, 11, 12
8	57M9813	2	Elec. Connector Terminal	Cavity 5, 6
8	57M10603	4	Elec. Connector Terminal	Cavity 3, 4, 7, 8
8	57M9844	1	Elec. Connector Accessory	-
8	57M9804	1	Elec. Connector Housing	Right Main Harness to Grain Quality Image Processing Module Jumper Harness
9	57M9940	1	Elec. Connector Accessory	-
10	AXE51607	1	Wiring Harness	Image Processing Module to Right Main Jumper Harness
11	R44302	4	Tie Band	-
12	AH96317	2	Clip	-
13	24H1289	2	Washer	21/64" X 5/8" X 0.049"
14	19M7866	1	Screw	M8 X 20
15	AH90990	2	Clip	-

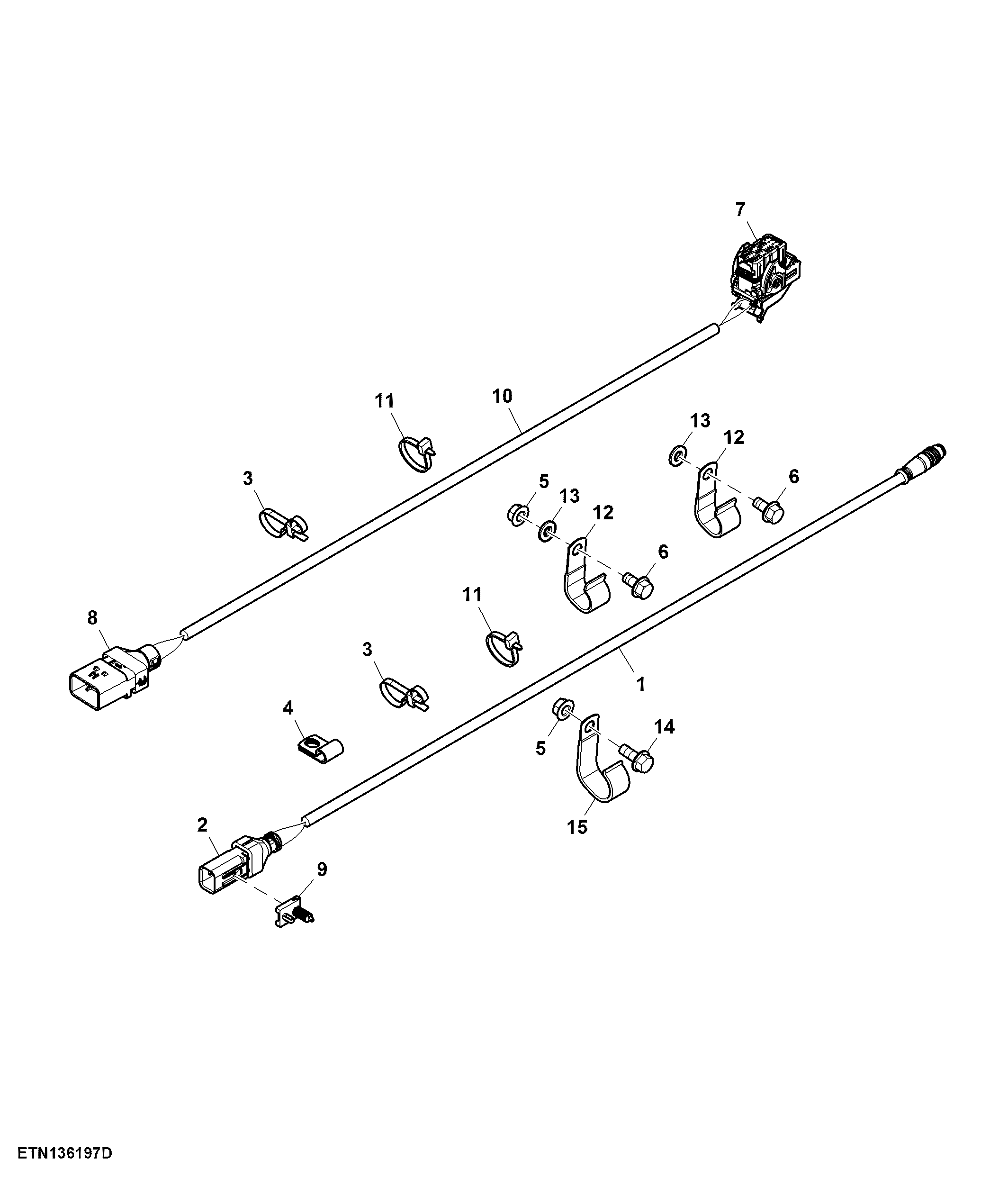

Wiring Harness, ActiveVision™, Cab Video
