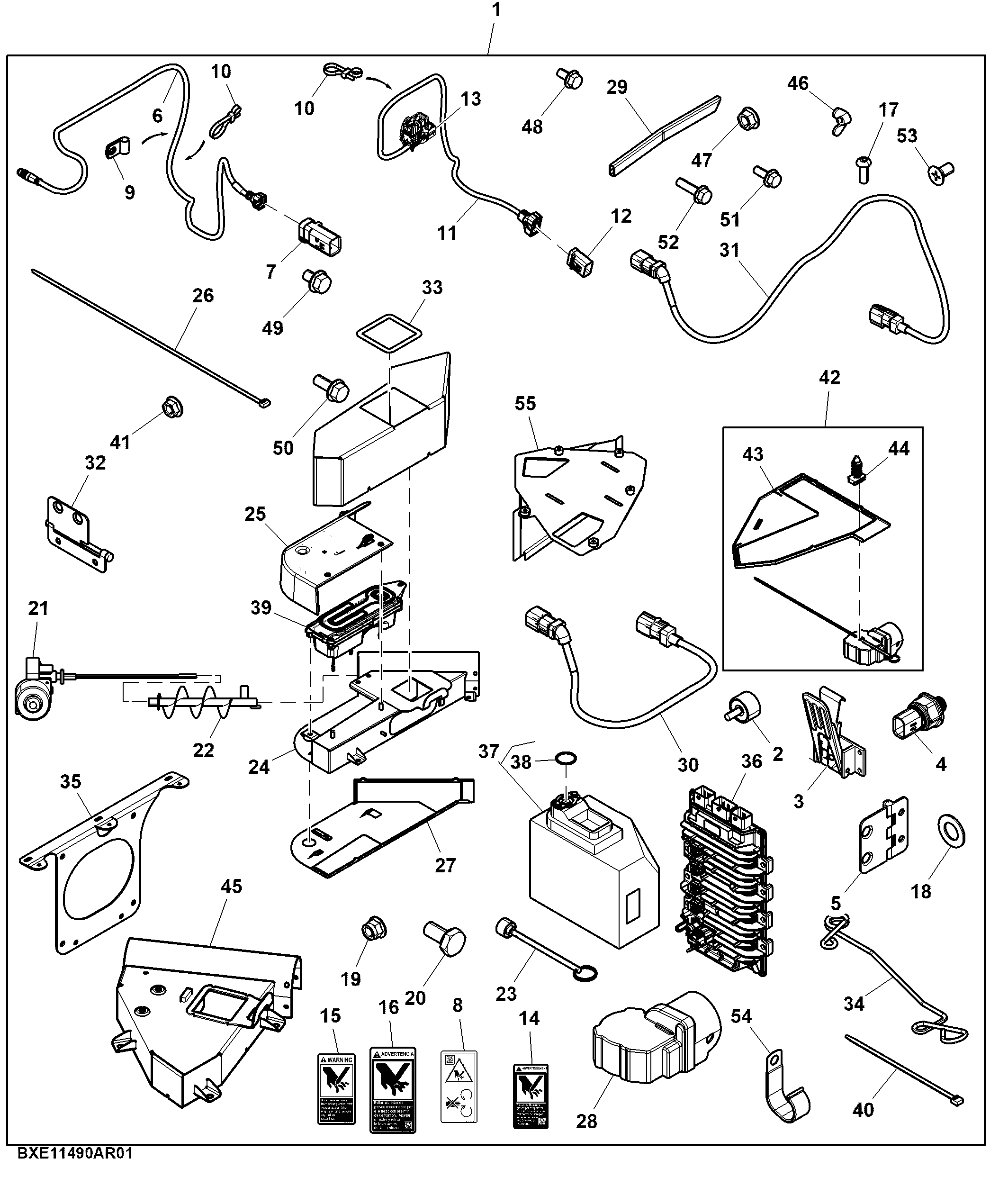

Moisture Sensor Module, Attachment

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE11490	1	Moisture Sensor Module	-
2	AH154566	2	Bumper	-
3	AH87272	2	Latch	-
4	AXE24515	1	Pressure Sensor	-
5	AXE39821	1	Hinge	-
6	AXE51324	1	Wiring Harness	-
7	57M9821	1	Elec. Connector Housing	-
8	HXE172410	2	Label	-
9	AH76882	2	Clip	-
10	57M10421	8	Elec. Connector Accessory	-
11	AXE51607	1	Wiring Harness	Image Processing Module to Right Main Jumper Harness
12	57M9940	2	Elec. Connector Accessory	-
12	57M9814	4	Elec. Connector Cavity Plug	Cavity 1, 2, 11, 12
12	57M9812	2	Elec. Connector Terminal	Cavity 9, 10
12	57M9813	2	Elec. Connector Terminal	Cavity 5, 6
12	57M10603	4	Elec. Connector Terminal	Cavity 3, 4, 7, 8
12	57M9844	1	Elec. Connector Accessory	-
12	57M9804	1	Elec. Connector Housing	Right Main Harness to Grain Quality Image Processing Module Jumper Harness
13	57M10615	1	Elec. Connector Housing	A170 Grain Quality Image Processing Module
13	57M10613	1	Elec. Connector Housing	-
13	57M10334	4	Elec. Connector Cavity Plug	Cavity L1, L2, M1, M2
13	57M10617	4	Elec. Connector Housing	Cavity L3, L4, M3, M4
13	57M10330	2	Elec. Connector Terminal	Cavity K3, K4
13	57M10333	36	Elec. Connector Cavity Plug	Cavity A1, A2, B1, B2, B3, B4, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, F4, G1, G2, G3, G4, H1, H2, H3, H4, J1, J2, J3, J4, K1, K2
13	57M10590	2	Elec. Connector Housing	Cavity A3, A4
14	HXE172832	2	Safety Sign	-
15	HXE172397	2	Safety Sign	-
16	HXE172829	2	Safety Sign	-
17	HXE116998	8	Screw	-
18	12H297	6	Lock Washer	1/4"
19	14M7396	2	Lock Nut	M8
20	19H1227	6	Cap Screw	1/4" X 1/2"
21	AXE13658	2	Sensor	-
22	AXE13660	2	Auger	-
23	AXE13661	4	Detent	-
24	AXE65788	1	Housing	-
25	AXE66800	1	Sensor	-
26	H77698	2	Tie Band	-
27	HXE118983	1	Gasket	-
28	HXE131981	2	Cover	-
29	HXE16934	2	Bracket	-
30	AXE85318	1	Wiring Harness	-
31	AXE85320	1	Wiring Harness	-
32	HXE114036	1	Hinge	-
33	HXE80440	2	Gasket	-
34	HXE84402	1	Spring	-
35	HXE94440	1	Support	-
36	PFA10402	1	Module	-
37	PFA12672	1	Sensor	-
38	R533599	1	O-Ring	-
39	PH90233234	1	Sensor	-
40	R44302	14	Tie Band	-
41	H137327	2	Lock Nut	-
42	AXE86523	1	Sensor	-
43	HXE79116	1	Gasket	-
44	57M9555	1	Clip	-
45	AXE86376	1	Bracket	-
46	14M7019	1	Wing Nut	M6
47	14M7298	8	Flange Nut	M8
48	19M7775	2	Screw	M6 X 16
49	19M7864	4	Screw	M8 X 12
50	19M7865	10	Screw	M8 X 16
51	19M7866	1	Screw	M8 X 20
52	19M7868	4	Screw	M8 X 30
53	21M7297	4	Screw	M8 X 16
54	AH90990	2	Clip	-
55	AXE70915	1	Bracket	-
