№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE10700	1	Compressor Kit	-
2	14M7298	16	Flange Nut	M8
3	19M7786	5	Screw	M10 X 30
4	19M7866	13	Screw	M8 X 20
5	19M7868	2	Screw	M8 X 30
6	38H1618	2	Adapter Fitting	-
7	T77814	7	O-Ring	-
8	38H5027	1	Elbow Fitting	-
9	51M7045	1	O-Ring	19.300 X 2.200 mm
10	T77857	1	O-Ring	-
11	38H5075	1	Tee Fitting	-
12	AH77869	1	Clip	-
13	AH89557	2	Clip	-
14	AH90990	3	Clip	-
15	TY22462	2	Clamp	-
16	AXE45092	1	Air Gun	-
17	AXE43087	1	Air Gun	-
18	AXE45093	1	Air Gun	-
19	AXE42995	1	Air Gun	-
20	AXE45158	2	Adapter Fitting	-
21	AXE48084	1	Compressed Air Hose	LGTH = 7620 mm
22	AXE48085	1	Compressed Air Hose	LGTH = 15240 mm
23	AXE48269	2	Pneum.Quick-Connect Coupler	-
24	AXE48270	2	Pneum.Quick-Connect Coupler	-
25	H158135	5	Nut	-
26	H224073	13	Tie Band	-
27	H238573	3	Adapter Fitting	-
28	H238574	2	Adapter Fitting	-
29	H75541	8	Clamp	-
30	HXE74185	1	Lock Nut	-
31	HXE83713	1	Compressed Air Hose	LGTH = 3300 mm
32	HXE84656	1	Bracket	-
33	HXE84899	1	Bracket	-
34	HXE84900	1	Bracket	-
35	HXE84901	1	Bracket	-
36	HXE86809	1	Hose Fitting	-
37	R35668	1	Clamp	-
38	RE544763	1	Fitting	-
39	51M7039	1	O-Ring	8.100 X 1.600 mm
40	Z105554	1	Grommet	-
41	RE223628	1	Fitting	-
42	AXE54851	1	Compressed Air Hose	LGTH = 4925 mm
43	HXE105813	1	Compressed Air Hose	LGTH = 2650 mm
44	AXE59494	1	Compressed Air Hose	LGTH = 5700 mm
45	14M7296	4	Flange Nut	M10
46	AXE48351	1	Compressed Air Hose	LGTH = 3450 mm
47	AXE52956	1	Air Intake	-
48	AL64588	1	Clamp	-
49	A15898	2	Cap	-
50	H120379	1	Spacer	-
51	T24959	2	Clamp	-
52	AXE61283	1	Line	-
53	H131526	3	Angle	-
54	H165237	1	Spacer	-
55	19M7867	6	Screw	M8 X 25
56	19M7913	1	Screw	M8 X 90
57	T77932	3	O-Ring	-
58	AT342251	1	Adapter Fitting	-
59	T348520	1	Fitting	-
60	38H5011	1	Adapter Fitting	-
61	51M7041	1	O-Ring	11.300 X 2.200 mm
62	38H1447	1	Adapter Fitting	-
63	R29936	1	O-Ring	-
64	AXE45579	1	Oil Line	-
65	AXE55111	1	Oil Line	-
66	AH233413	1	Label	-
67	19M7784	2	Screw	M10 X 20
68	HXE81393	1	Bracket	-
69	AH77724	3	Clip	-
70	T27550	4	Clip	-
71	HXE85220	2	Label	Decal Safety Air Dryer
72	HXE94451	2	Label	Decal Safety Air Dryer
73	HXE85221	2	Label	Decal Safety Air Dryer
74	HXE85222	2	Label	Decal Safety Air Compressor
75	T237872	1	Packing	-
76	-	1	Part 76	CTL 150 mm, MF AH122244

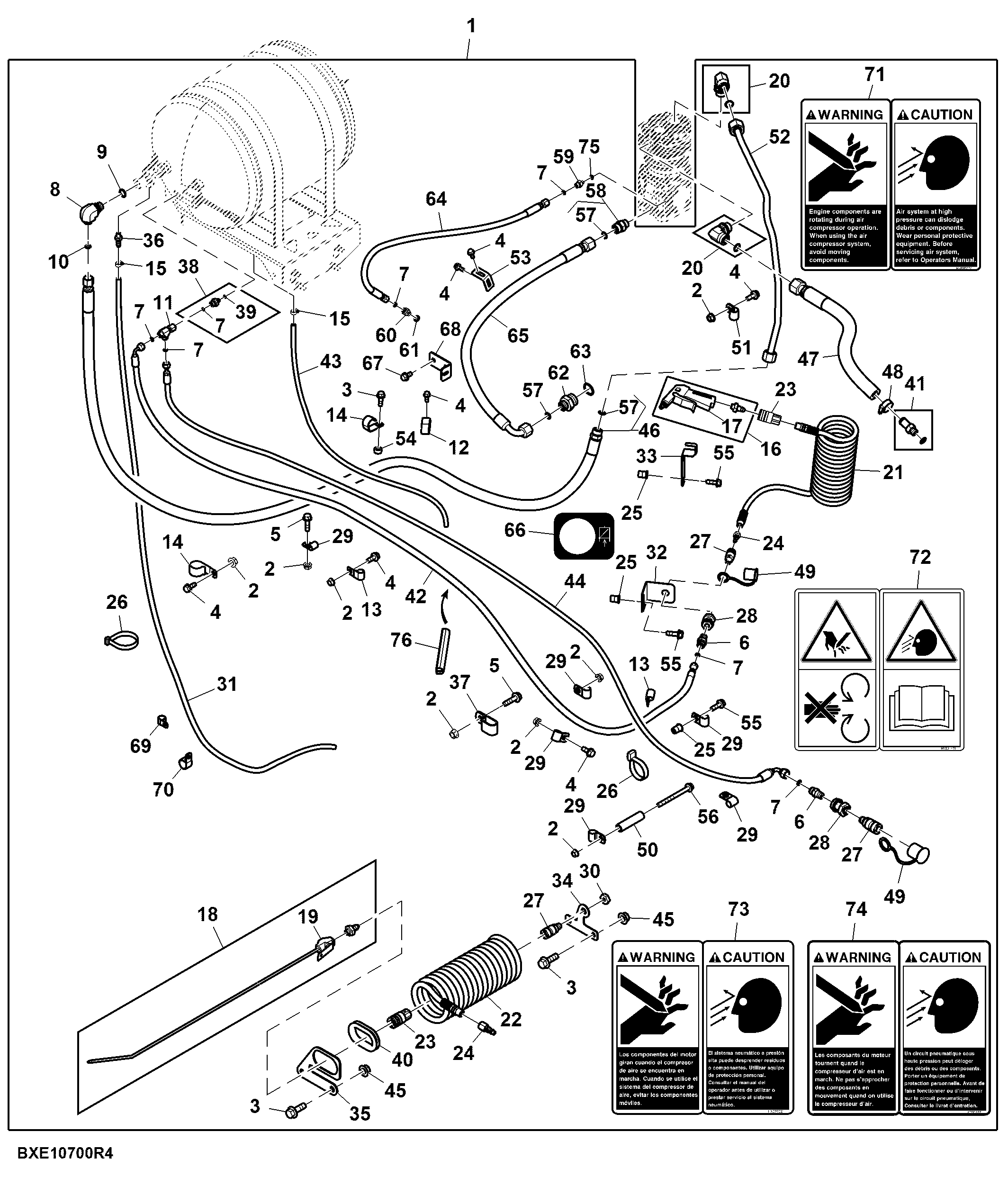

Attachment, Air Compressor Install Kit, Final Tier 4
