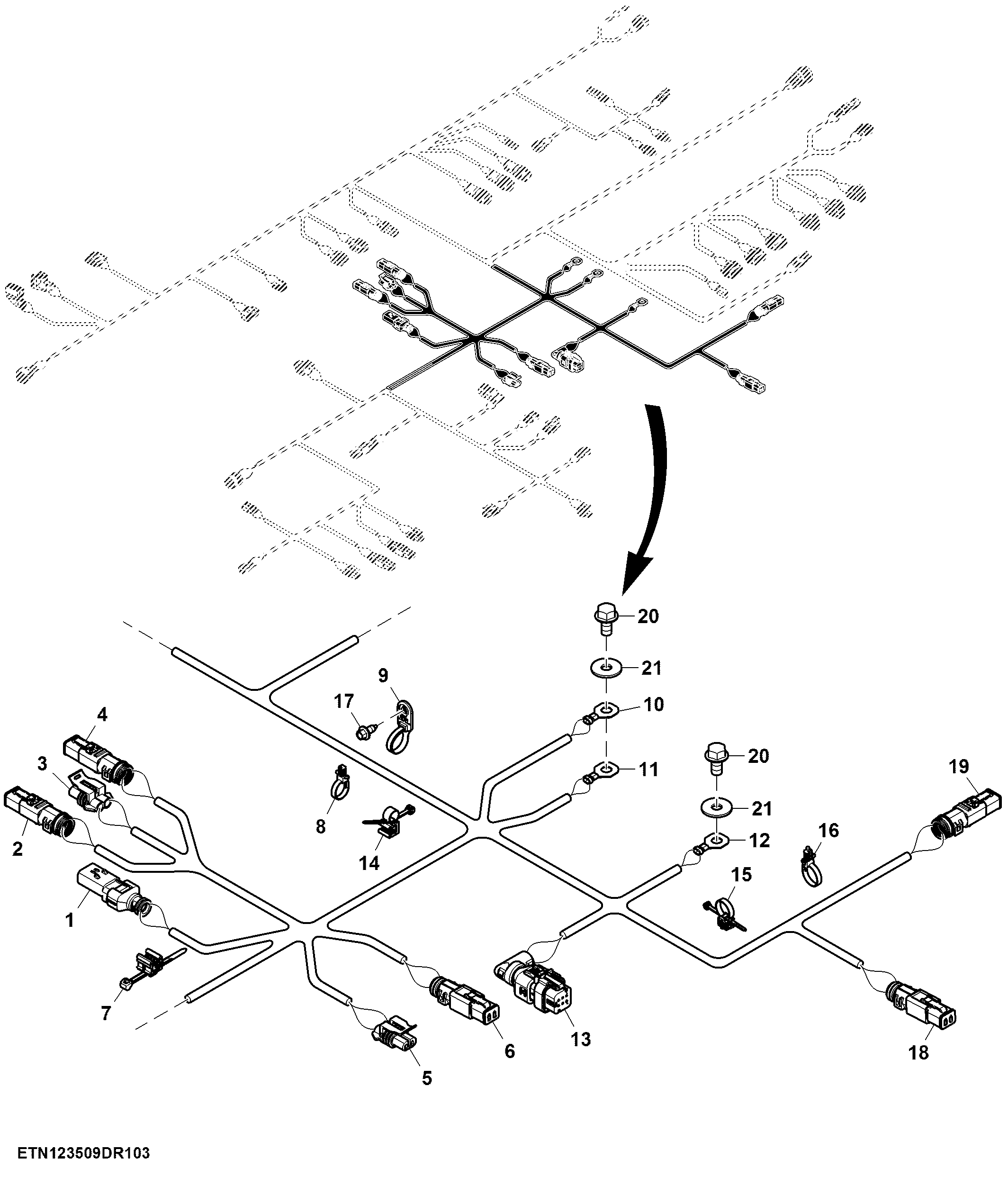

Main Wiring Harness, Left Control Unit 1 (3 of 5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9838	1	Elec. Connector Accessory	-
1	57M9784	1	Elec. Connector Housing	LC1 Main Harness / Front Extension Harness (Lighting), LH
1	57M9813	1	Elec. Connector Terminal	Cavity 2
1	57M9939	1	Elec. Connector Accessory	-
1	57M10602	2	Elec. Connector Terminal	Cavity 1, 3
2	57M10517	1	Elec. Connector Housing	Y95 Reel Reverse Solenoid
2	57M10486	1	Elec. Connector Accessory	-
2	57M8022	1	Elec.Connect Locking Device	-
2	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
3	57M7254	1	Elec. Connector Housing	Y114 Reel Speed Adjust Solenoid
3	57M9556	1	Elec. Connector Accessory	-
3	R104846	2	Elec. Connector Terminal	Cavity A, B
3	57M9215	2	Elec. Connector Seal	Cavity A, B
4	57M10517	1	Elec. Connector Housing	Y34 Feeder House Reverse Solenoid
4	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
4	57M8022	1	Elec.Connect Locking Device	-
4	57M10486	1	Elec. Connector Accessory	-
5	57M7254	1	Elec. Connector Housing	Y206 Feeder House Tilt Fore Solenoid
5	57M7256	1	Elec. Connector Housing	-
5	57M9556	1	Elec. Connector Accessory	-
5	R104846	2	Elec. Connector Terminal	Cavity A, B
5	57M9215	2	Elec. Connector Seal	Cavity A, B
6	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
6	57M8022	1	Elec.Connect Locking Device	-
6	57M10486	1	Elec. Connector Accessory	-
6	57M10517	1	Elec. Connector Housing	Y205 Feeder House Tilt Aft Solenoid
6	57M11230	1	Elec. Connector Accessory	-
7	AH225364	1	Clip	-
8	57M10233	1	Tie Band	-
9	57M10528	2	Elec. Connector Accessory	-
10	57M8866	1	Elec. Connector Terminal	Front Chassis Ground 1, LH (0010U)
11	57M8867	1	Elec. Connector Terminal	Front Chassis Ground 1, LH (0010V)
12	57M8868	1	Elec. Connector Terminal	LC1 Electronics Ground
13	57M9786	1	Elec. Connector Housing	B17 Threshing Clearance Sensor
13	57M10230	1	Elec. Connector Accessory	-
13	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	R78069	3	Elec. Connector Cavity Plug	Cavity 4, 5, 6
14	AH225366	1	Clip	-
15	AH225365	1	Clip	-
16	57M10492	2	Elec. Connector Accessory	-
17	GX22456	3	Screw	-
18	57M10517	1	Elec. Connector Housing	B11 Conveyor Auger Speed Sensor
18	57M10486	1	Elec. Connector Accessory	-
18	57M8022	1	Elec.Connect Locking Device	-
18	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
19	57M8639	1	Elec. Connector Housing	B16 Cleaning Fan Speed Sensor
19	57M8022	1	Elec.Connect Locking Device	-
19	57M12218	1	Elec. Connector Accessory	-
19	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
20	19M7865	2	Screw	M8 X 16
21	24M7207	2	Washer	8.400 X 24 X 2 mm

Main Wiring Harness, Left Control Unit 1 (3 of 5)
