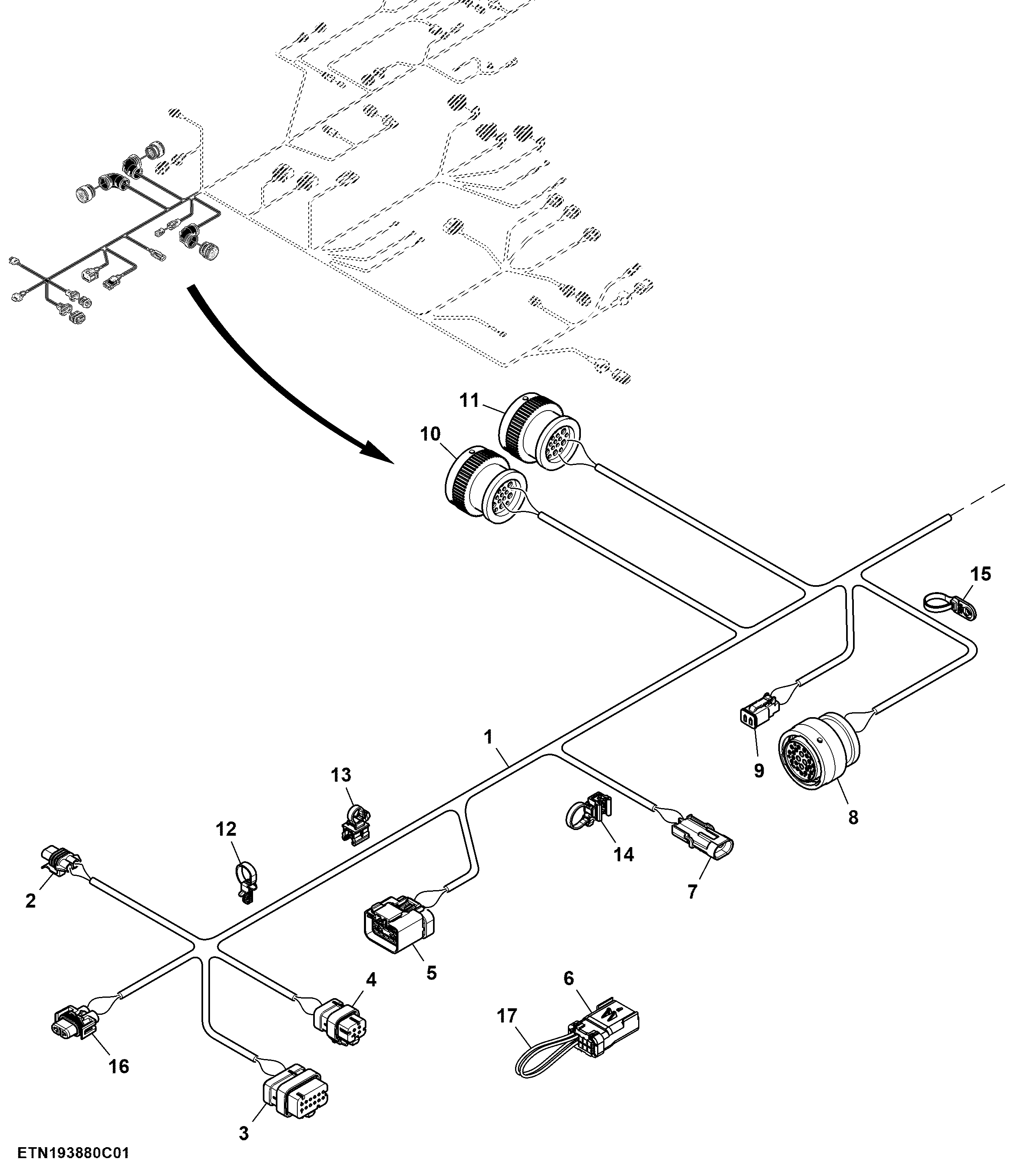

Right Main Wiring Harness W/ Power Shift Transmission Control Unit (1/7) ( - 140110)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE74049	1	Wiring Harness	-
2	57M7254	1	Elec. Connector Housing	S24 Engine Service Light Switch
2	57M7494	2	Elec. Connector Terminal	Cavity A, B
2	57M9214	2	Elec. Connector Seal	Cavity A, B
2	57M9556	1	Elec. Connector Accessory	-
3	57M9800	1	Elec. Connector Housing	Right Main Harness / Flex Residue Harness
3	57M9808	8	Elec. Connector Terminal	Cavity 5, 6, 7, 8, 10, 11
3	57M9809	2	Elec. Connector Terminal	Cavity 1, 2, 3, 4
3	57M10336	2	Elec. Connector Cavity Plug	Cavity 9
3	57M9844	1	Elec. Connector Accessory	-
3	57M9940	1	Elec. Connector Accessory	-
3	57M10663	1	Elec. Connector Terminal	Cavity 12
3	57M10338	1	Elec. Connector Accessory	-
4	57M11335	1	Elec. Connector Accessory	-
4	57M9940	1	Elec. Connector Accessory	-
4	57M9839	1	Elec. Connector Accessory	-
4	57M9809	1	Elec. Connector Terminal	Cavity 2
4	57M10631	2	Elec. Connector Terminal	Cavity 1, 3
4	57M9817	1	Elec. Connector Housing	RH Main / Tail Light Extension Harness
4	57M10663	1	Elec. Connector Terminal	Cavity 4
5	57M10299	1	Elec. Connector Housing	Right Main / Knifebank Jumper Harness
5	57M8543	1	Elec. Connector Terminal	Cavity 1
5	57M9176	4	Elec. Connector Terminal	Cavity 4, 5, 9, 10
5	57M8572	5	Elec. Connector Cavity Plug	Cavity 2, 3, 6, 7, 8
5	57M11374	1	Elec. Connector Accessory	-
5	57M15072	1	Elec. Connector Accessory	-
6	57M15133	4	Elec. Connector Terminal	Cavity 4, 5, 9, 10
6	57M8572	6	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 6, 7, 8
6	57M10300	1	Elec. Connector Housing	Connectors Cap
7	R78053	1	Electrical Connector Assy	M17 Chop to Drop Actuator Motor
7	57M7882	2	Elec. Connector Terminal	Cavity A, B
7	57M9216	2	Elec. Connector Seal	Cavity A, B
7	RE12363	1	Electrical Connector Assy	-
8	57M9227	1	Elec. Connector Accessory	-
8	57M7771	5	Elec. Connector Terminal	Cavity 18, 20, 23, 24, 27
8	57M8165	5	Elec. Connector Terminal	Cavity 5, 6, 14, 15, 16
8	R78069	4	Elec. Connector Cavity Plug	Cavity 4, 12, 13, 19
8	57M8430	1	Elec. Connector Terminal	Cavity 29
8	57M9526	3	Elec. Connector Terminal	Cavity 9, 10, 11
8	57M8261	3	Elec. Connector Terminal	Cavity 7, 21, 28
8	57M8593	3	Elec. Connector Terminal	Cavity 1, 2, 3
8	57M8795	1	Elec. Connector Housing	LC1 Main Harness / Right Main Harness
8	R78065	2	Elec. Connector Terminal	Cavity 22, 26
9	57M8022	1	Elec.Connect Locking Device	-
9	57M10486	1	Elec. Connector Accessory	-
9	57M11230	1	Elec. Connector Accessory	-
9	57M8537	2	Elec. Connector Terminal	Cavity 1, 2
9	57M10517	1	Elec. Connector Housing	B13A Discharge Beater Speed Sensor
10	57M8794	1	Elec. Connector Housing	Right Main / Engine Platform Harness
10	57M8261	6	Elec. Connector Terminal	Cavity A, B, D, F, G, N
10	57M8537	5	Elec. Connector Terminal	Cavity H, L, M, U, V
10	R78069	10	Elec. Connector Cavity Plug	Cavity C, E, J, K, O, P, Q, R, S, T
10	57M8704	1	Elec. Connector Accessory	-
11	57M8261	4	Elec. Connector Terminal	Cavity 2, 3, 11, 13
11	57M8704	1	Elec. Connector Accessory	-
11	R78069	6	Elec. Connector Cavity Plug	Cavity 1, 5, 7, 14, 15, 18
11	57M7546	1	Elec. Connector Terminal	Cavity 17
11	57M8593	2	Elec. Connector Terminal	Cavity 10, 12
11	57M8537	3	Elec. Connector Terminal	Cavity 6, 9, 19
11	57M8569	2	Elec. Connector Terminal	Cavity 4, 8
11	57M9513	1	Elec. Connector Housing	Right Main / Engine Platform Harness
12	57M10233	12	Tie Band	-
13	AH225363	2	Clip	-
14	AH225365	2	Clip	-
15	HXE141706	2	Clamp	-
16	57M7344	1	Elec. Connector Housing	E51 Right Rear Discharge Light
16	57M7491	2	Elec. Connector Terminal	Cavity A, B
16	57M9218	2	Elec. Connector Seal	Cavity A, B
16	57M7371	1	Electrical Connector Assy	-
17	AXE81060	1	Wiring Harness	Knifebank Connector´s Cap
