Main Wiring Harness W/O Power Shift Transmission Control Unit, Left Control Unit 2 (2/5)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE74057	1	Wiring Harness	-
2	57M8985	1	Elec. Connector Housing	A11 Left Power Module 2A- J1 (Green)
2	57M7299	2	Elec. Connector Terminal	Cavity B, C
2	57M7298	1	Elec. Connector Terminal	Cavity E
2	57M8294	2	Elec. Connector Terminal	Cavity F, G
2	57M9216	2	Elec. Connector Seal	Cavity B, C
2	57M9218	1	Elec. Connector Seal	Cavity E
2	57M9549	2	Elec. Connector Seal	Cavity F, G
2	R78064	3	Elec. Connector Cavity Plug	Cavity A, D, H
2	57M9083	1	Elec. Connector Accessory	-
2	57M13120	1	Elec. Connector Accessory	-
3	57M9783	1	Elec. Connector Housing	B99 Aftertreatment Enclosure Filter Restricted Sensor
3	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 3
3	57M9847	1	Elec. Connector Accessory	-
4	57M9536	1	Elec. Connector Terminal	Debris Management Sensor Static Ground
5	57M10421	1	Elec. Connector Accessory	-
6	57M10233	6	Tie Band	-
7	AH225366	4	Clip	-
8	57M8986	1	Elec. Connector Housing	A11 Left Power Module 2A- J3 (Blue)
8	57M7299	2	Elec. Connector Terminal	Cavity B, C
8	57M9547	1	Elec. Connector Terminal	Cavity F
8	57M7298	1	Elec. Connector Terminal	Cavity H
8	57M9216	2	Elec. Connector Seal	Cavity B, C
8	57M9219	1	Elec. Connector Seal	Cavity F
8	57M9218	1	Elec. Connector Seal	Cavity H
8	R78064	4	Elec. Connector Cavity Plug	Cavity A, D, E, G
8	57M9083	1	Elec. Connector Accessory	-
8	57M13120	1	Elec. Connector Accessory	-

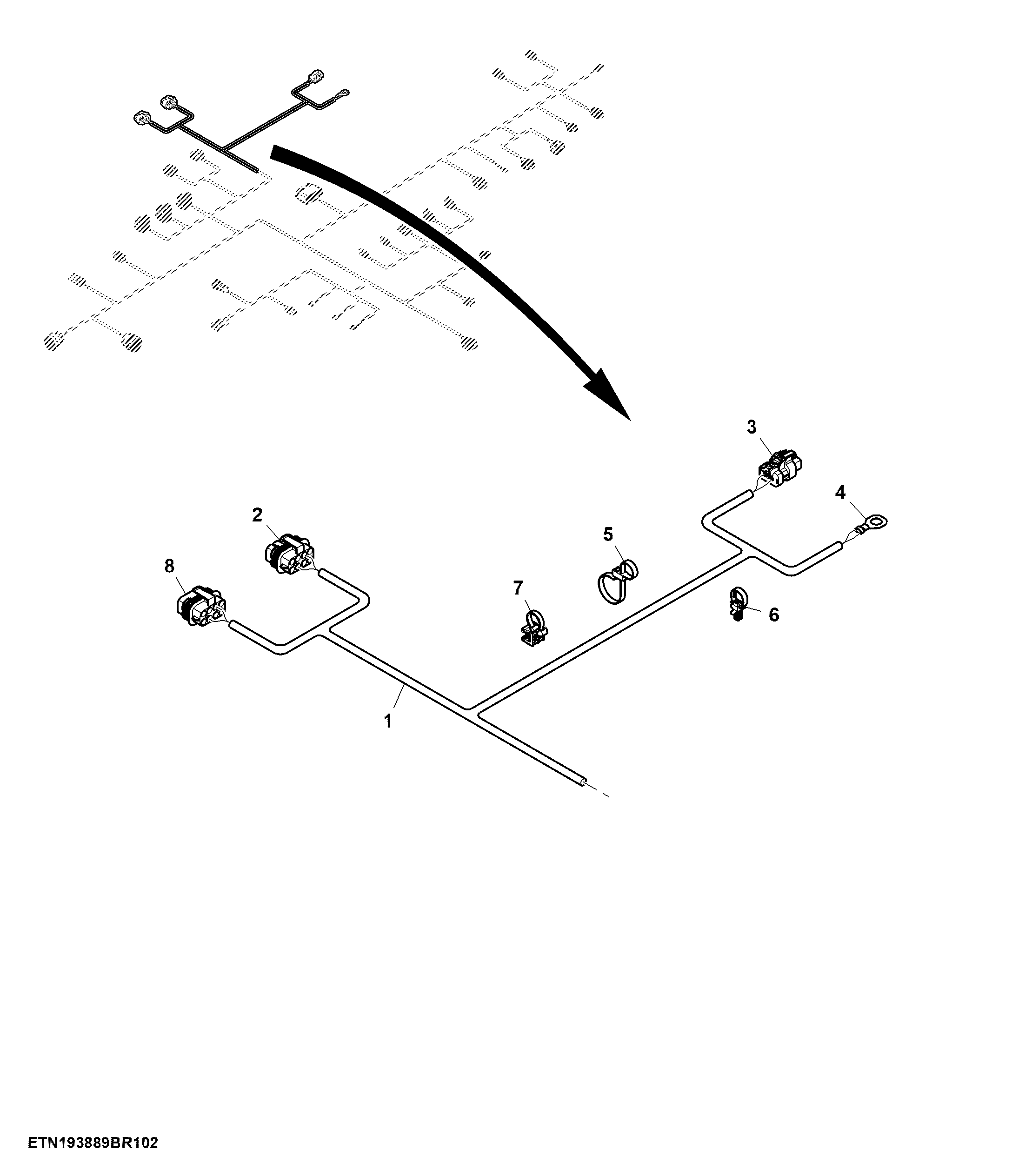

Main Wiring Harness W/O Power Shift Transmission Control Unit, Left Control Unit 2 (2/5)
