Main Wiring Harness, Left Control Unit 2 (3/5) (810051 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE74057	1	Wiring Harness	-
2	57M7263	1	Elec. Connector Housing	LC2 Main Harness / Trailer Extension Harness
2	57M7259	6	Elec. Connector Seal	-
2	57M11407	1	Elec. Connector Accessory	-
2	57M7291	2	Electrical Connector Assy	-
2	57M7260	1	Elec. Connector Housing	-
2	57M9214	1	Elec. Connector Seal	Cavity E
2	57M9215	2	Elec. Connector Seal	Cavity A, F
2	57M7495	1	Elec. Connector Terminal	Cavity E
2	57M11342	3	Elec. Connector Terminal	Cavity B, C, D
2	57M7252	2	Elec. Connector Terminal	Cavity A, F
2	57M7258	3	Elec. Connector Seal	Cavity B, C, D
3	57M8128	1	Electrical Connector Assy	E37 Left Shoe Light
3	57M7491	2	Elec. Connector Terminal	Cavity A, B
3	57M9218	2	Elec. Connector Seal	Cavity A, B
3	57M8129	1	Elec. Connector Terminal	-
4	57M8865	1	Elec. Connector Terminal	Flex Residue Chassis Ground (0010N)
5	57M8865	1	Elec. Connector Terminal	Left Rear Chassis Ground 1 (0010P/ 0010R)
6	57M9535	1	Elec. Connector Terminal	LC2 Electronics Ground (0040)
7	57M10321	3	Elec. Connector Terminal	Cavity 1, 4, 7
7	57M9844	1	Elec. Connector Accessory	-
7	57M10336	2	Elec. Connector Cavity Plug	Cavity 3, 6
7	57M9808	7	Elec. Connector Terminal	Cavity 2, 5, 8, 9, 10, 11, 12
7	57M9800	1	Elec. Connector Housing	LC2 Main Harness / Shoe Harness
8	57M9961	1	Elec. Connector Housing	M8 Left Chopper Raise / Lower Actuator
8	57M7588	2	Elec. Connector Terminal	Cavity A, B
8	57M7706	2	Elec. Connector Terminal	Cavity A, B
8	57M9962	1	Elec.Connect Locking Device	-
9	57M7344	1	Elec. Connector Housing	LC2 Main / Flex Residue Harness
9	57M7299	2	Elec. Connector Terminal	Cavity A, B
9	57M9216	2	Elec. Connector Seal	Cavity A, B
9	57M15135	1	Elec. Connector Accessory	-
10	57M7259	2	Elec. Connector Seal	Cavity A, F
10	57M9214	4	Elec. Connector Seal	Cavity B, C, D, E
10	57M7260	1	Elec. Connector Housing	S32 Sieve Adjust Switch
10	57M7494	4	Elec. Connector Terminal	Cavity B, C, D, E
11	57M7260	1	Elec. Connector Housing	S31 Chaffer Adjust Switch
11	57M7494	3	Elec. Connector Terminal	Cavity B, D, E
11	57M10770	1	Elec. Connector Terminal	Cavity C
11	57M9214	3	Elec. Connector Seal	Cavity B, D, E
11	57M9215	1	Elec. Connector Seal	Cavity C
11	57M7259	2	Elec. Connector Seal	Cavity A, F
12	RE12365	1	Electrical Connector Assy	S88 Chopper Raise / Lower Switch
12	57M7883	4	Elec. Connector Terminal	Cavity A, B, C, D
12	57M9217	4	Elec. Connector Seal	Cavity A, B, C, D
13	57M7254	1	Elec. Connector Housing	S22 Gullwing Service Light Switch
13	57M7494	1	Elec. Connector Terminal	Cavity A
13	57M10770	1	Elec. Connector Terminal	Cavity B
13	57M9214	1	Elec. Connector Seal	Cavity A
13	57M9215	1	Elec. Connector Seal	Cavity B
14	57M9712	1	Elec. Connector Accessory	-
14	57M7494	2	Elec. Connector Terminal	Cavity A, B
14	57M7254	1	Elec. Connector Housing	S23 Shoe Service Light Switch
14	57M9214	2	Elec. Connector Seal	Cavity A, B
15	57M11781	1	Elec. Connector Housing	LC2 Main / Engine Platform Harness
15	57M12827	9	Elec. Connector Terminal	Cavity 3, 4, 5, 15, 16, 17, 18, 19, 20
15	57M8572	8	Elec. Connector Cavity Plug	Cavity 1, 2, 11, 12, 13, 14, 23, 24
15	57M12817	7	Elec. Connector Seal	Cavity 6, 7, 8, 9, 10, 21, 22
16	57M10492	9	Elec. Connector Accessory	-
17	57M10233	6	Tie Band	-
18	HXE141706	2	Clamp	-
19	57M7264	1	Elec. Connector Housing	LC2 Main Harness/ 4WD (Or Wheel Angel Sensor) Harness
19	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
19	57M12007	4	Elec. Connector Terminal	Cavity E, F, G, H
19	57M9215	8	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H
19	57M7261	1	Elec. Connector Housing	-
19	57M9555	1	Clip	-
19	57M7296	2	Elec. Connector Accessory	-
19	57M7259	8	Elec. Connector Seal	-

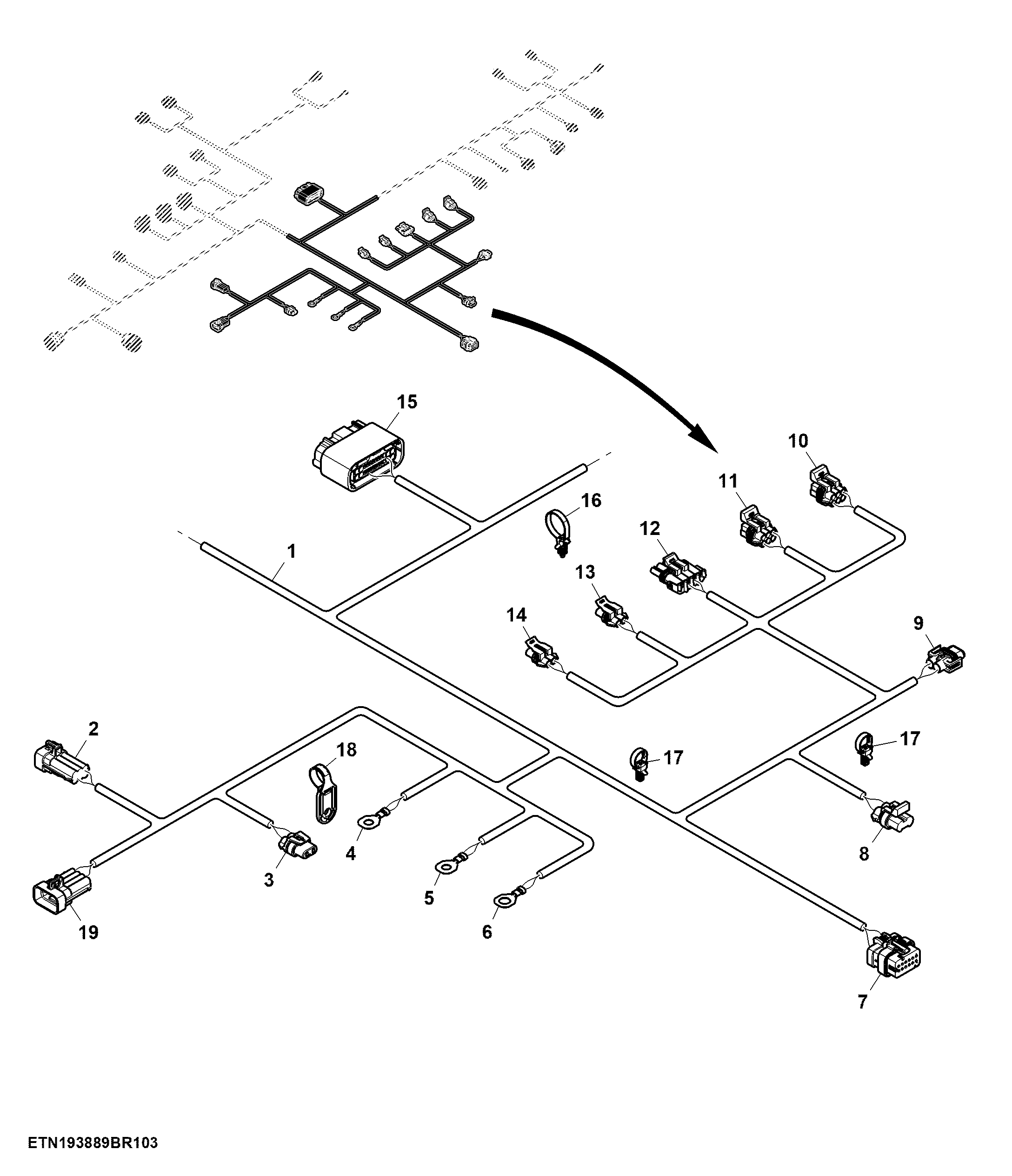

Main Wiring Harness, Left Control Unit 2 (3/5) (810051 - )
