Main Wiring Harness, Left Control Unit 1 (3/6) (810051 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE80409	1	Wiring Harness	-
2	57M9513	1	Elec. Connector Housing	LC1 Main Harness / Left Grain Tank Harness
2	57M7546	3	Elec. Connector Terminal	Cavity 1, 2, 6
2	57M9808	4	Elec. Connector Terminal	Cavity 3, 5, 9, 17
2	57M8165	2	Elec. Connector Terminal	Cavity 7, 11
2	57M8569	3	Elec. Connector Terminal	Cavity 8, 10, 14
2	57M8593	2	Elec. Connector Terminal	Cavity 12, 16
2	R78069	5	Elec. Connector Cavity Plug	Cavity 4, 13, 15, 18, 19
2	57M8704	1	Elec. Connector Accessory	-
3	57M9776	1	Elec. Connector Housing	A2 Passive Can Terminator
3	57M11134	1	Elec. Connector Housing	-
3	57M9837	1	Elec. Connector Accessory	-
3	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
4	57M7144	1	Elec. Connector Housing	M5 Windshield Washer Pump Motor
4	57M9200	1	Elec. Connector Terminal	Cavity A
4	57M9199	1	Elec. Connector Terminal	Cavity B
5	R78053	1	Electrical Connector Assy	-
5	57M9219	2	Elec. Connector Seal	Cavity A, B
5	R78060	2	Elec. Connector Terminal	Cavity A, B
5	RE12363	1	Electrical Connector Assy	E58 Header Clutch Brush Module
6	57M7344	1	Elec. Connector Housing	LC1 Main Harness/ Left Front Gull Wing Harness
6	57M7491	2	Elec. Connector Terminal	Cavity A, B
6	57M9216	2	Elec. Connector Seal	Cavity A, B
6	57M7371	1	Electrical Connector Assy	-
7	57M9547	1	Elec. Connector Terminal	Cavity F
7	57M9083	1	Elec. Connector Accessory	-
7	R78064	1	Elec. Connector Cavity Plug	Cavity G
7	57M9219	1	Elec. Connector Seal	Cavity F
7	57M9218	2	Elec. Connector Seal	Cavity D, E
7	57M9216	4	Elec. Connector Seal	Cavity A, B, C, H
7	57M7299	1	Elec. Connector Terminal	Cavity H
7	57M7298	2	Elec. Connector Terminal	Cavity D, E
7	57M7491	3	Elec. Connector Terminal	Cavity A, B, C
7	57M8986	1	Elec. Connector Housing	A9 Left Power Module 1A (J3)
8	57M10617	3	Elec. Connector Housing	Cavity G3, H3, H4
8	57M10333	4	Elec. Connector Cavity Plug	Cavity A4, C2, D4, F4
8	57M10334	1	Elec. Connector Cavity Plug	Cavity G1
8	57M10604	1	Elec. Connector Housing	-
8	57M10488	3	Elec. Connector Terminal	Cavity A3, C4, E4
8	57M10514	7	Elec. Connector Terminal	Cavity A2, B4, C3, E2, E3, F1, F2
8	57M10590	10	Elec. Connector Housing	Cavity A1, B1, B2, B3, C1, D1, D2, D3, E1, F3
8	57M10612	1	Elec. Connector Housing	A8 Control Unit LC1 (J1)
8	57M10331	3	Elec. Connector Terminal	Cavity G2, G4, H1, H2
9	57M8983	1	Elec. Connector Housing	A9 Left Power Module 1A (J2)
9	57M7299	5	Elec. Connector Terminal	Cavity A, C, D, E, H
9	57M8294	1	Elec. Connector Terminal	Cavity B
9	57M9217	6	Elec. Connector Seal	Cavity A, B, C, D, E, H
9	57M10772	2	Elec. Connector Cable Seal	Cavity F, G
9	57M9083	1	Elec. Connector Accessory	-
10	57M10334	1	Elec. Connector Cavity Plug	Cavity M4
10	57M10613	1	Elec. Connector Housing	-
10	57M10333	20	Elec. Connector Cavity Plug	Cavity A1, B1, C1, C2, D1, D2, E1, E2, E3, E4, F1, F2, G2, H1, H2, J1, J2, K1, K2, K4
10	57M10331	5	Elec. Connector Terminal	Cavity L3, L4, M1, M2, M3
10	57M10488	1	Elec. Connector Terminal	Cavity D4
10	57M10330	7	Elec. Connector Terminal	Cavity A3, A4, B2, F4, G3, G4, J3
10	57M10590	12	Elec. Connector Housing	Cavity A2, B3, B4, C3, C4, D3, F3, G1, H3, H4, J4, K3
10	57M10420	1	Elec. Connector Housing	A8 Control Unit LC1 (J2)
10	57M10617	2	Elec. Connector Housing	Cavity L1, L2
11	57M9549	2	Elec. Connector Seal	Cavity F, G
11	57M9083	1	Elec. Connector Accessory	-
11	57M9216	6	Elec. Connector Seal	Cavity A, B, C, D, E, H
11	57M8294	2	Elec. Connector Terminal	Cavity F, G
11	57M7299	3	Elec. Connector Terminal	Cavity B, C, E
11	57M7491	3	Elec. Connector Terminal	Cavity A, D, H
11	57M8985	1	Elec. Connector Housing	A9 Left Power Module 1A (J1)
12	57M10606	1	Elec. Connector Housing	A8 Control Unit LC1 (J3)
12	57M10514	5	Elec. Connector Terminal	Cavity A1, B4, C2, D4, E1
12	57M10488	4	Elec. Connector Terminal	Cavity A2, B3, C3, F2
12	57M10330	7	Elec. Connector Terminal	Cavity A3, A4, B1, B2, C1, D1, F1
12	57M10590	6	Elec. Connector Housing	Cavity C4, D2, D3, E2, E3, F4
12	57M10331	7	Elec. Connector Terminal	Cavity G1, G2, G3, H1, H2, H3, H4
12	57M10333	2	Elec. Connector Cavity Plug	Cavity E4,, F3
12	57M10334	1	Elec. Connector Cavity Plug	Cavity G4
12	57M10604	1	Elec. Connector Housing	-

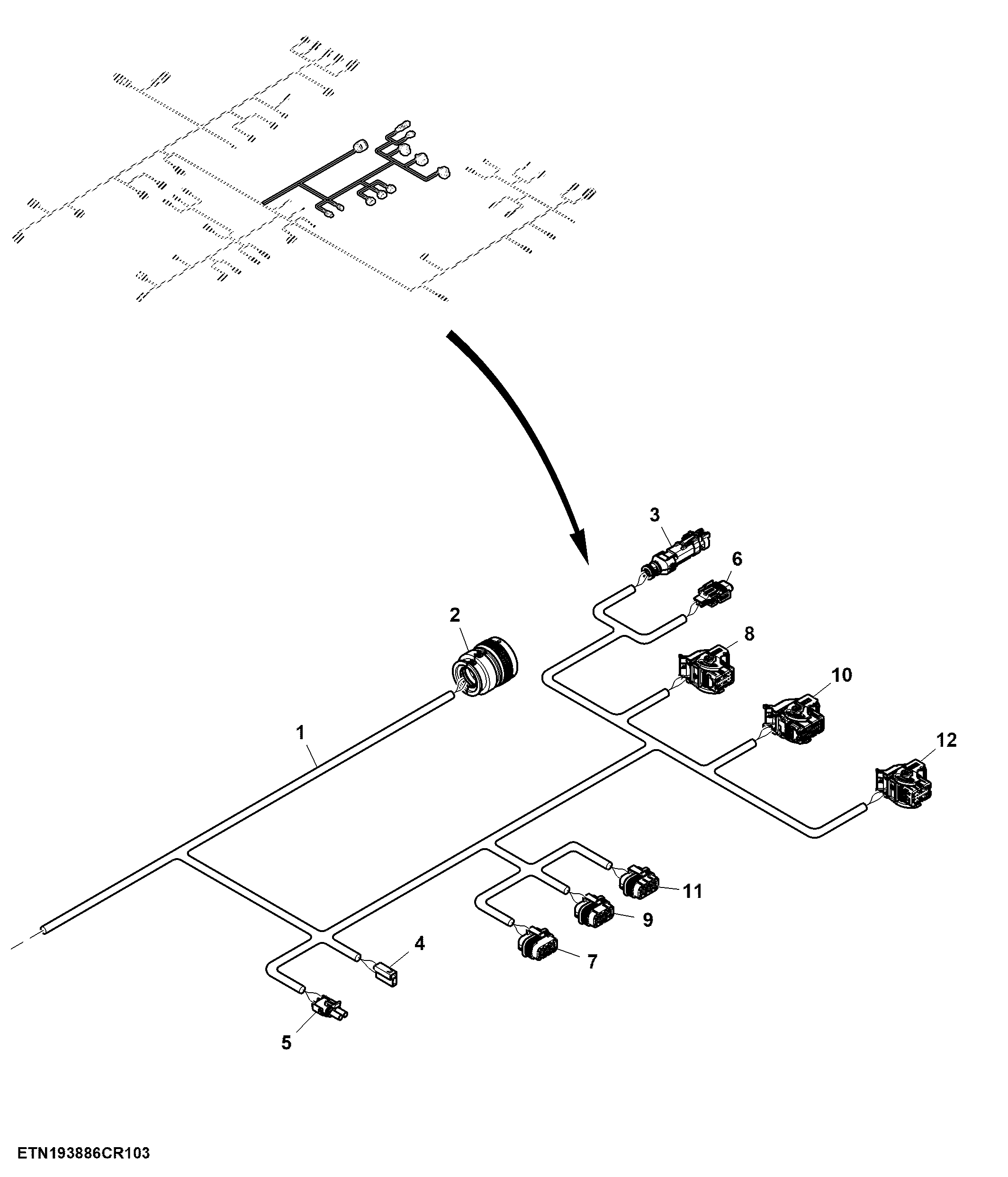

Main Wiring Harness, Left Control Unit 1 (3/6) (810051 - )
