Открытый узел

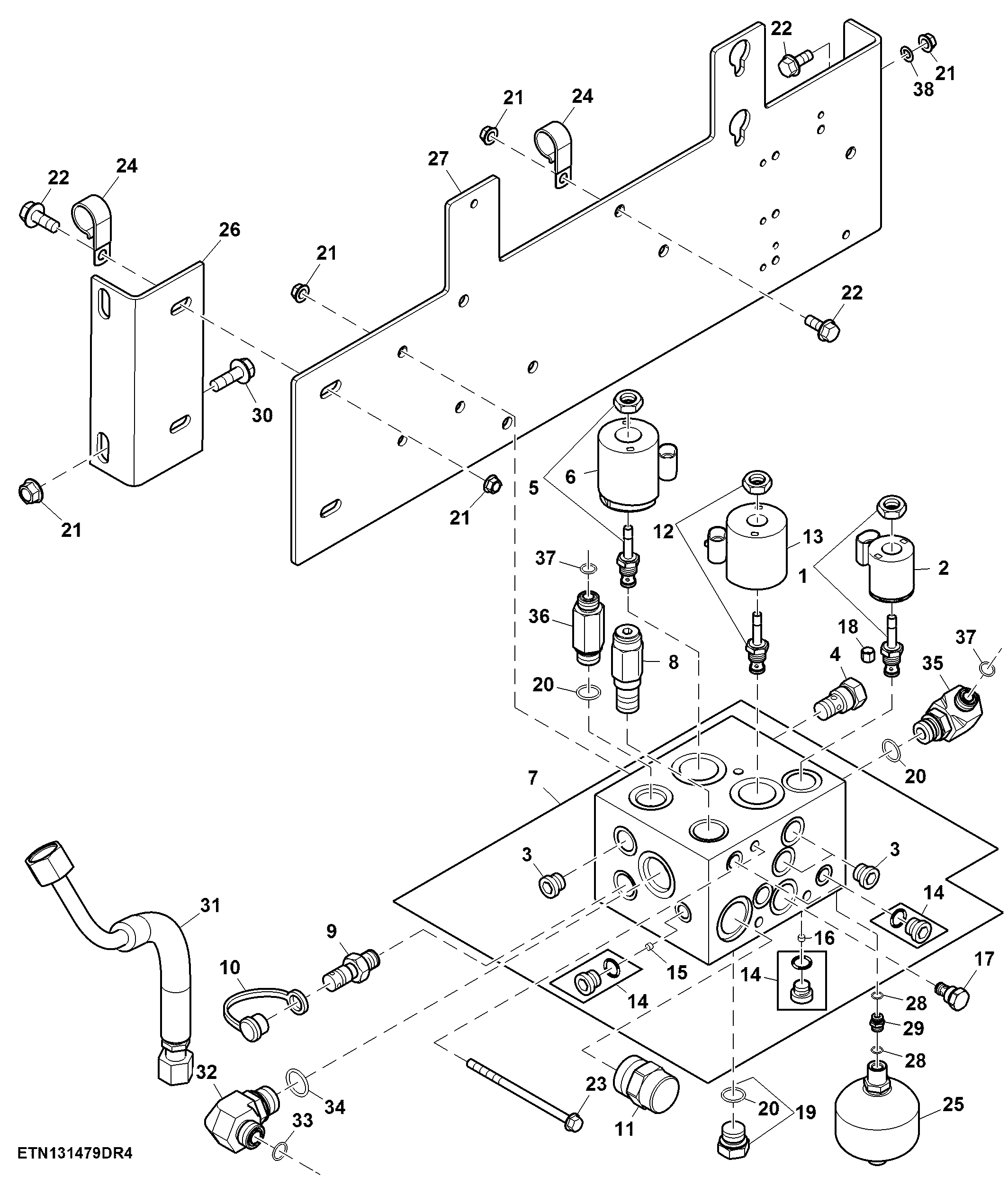

Header Lift Flow Control Valve, W/ Grain Tank Doors

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH209116	1	Seal Kit	-
1	AH211224	1	Valve	Accumulator Solenoid Valve
2	AH230746	1	Solenoid Valve Coil	-
3	N305925	6	Plug	-
4	AH228048	1	Check Valve	-
4	AT224864	1	Seal Kit	-
5	AXE13057	1	Valve	Header Raise Solenoid Valve
5	AT224702	1	Seal Kit	-
6	AT333814	1	Solenoid Valve Coil	-
7	AXE36056	1	Flow Control Hyd. Valve	SUB FOR AXE41471
8	AXE56591	1	Pressure Relief Valve	Header Lift
8	AXE46715	1	Seal Kit	-
9	RE190805	1	Diagnostic Coupling	Header Lift
10	R77175	1	Cover	-
11	AXE26914	1	Hydraulic Pressure Valve	Header Lift Compensation Valve
11	AT224868	1	Seal Kit	-
12	AZ103254	1	Solenoid Hydraulic Valve	Header Lower Solenoid Valve
12	AT224864	1	Seal Kit	-
13	AT333808	1	Solenoid Valve Coil	-
14	N304196	4	Plug	-
15	T228512	1	Orifice	-
16	T228509	1	Orifice	-
17	AXE26915	1	Flow Control Hyd. Valve	Header Relief Orifice
17	AH209116	1	Seal Kit	-
18	38H1416	1	Fitting	-
19	RE46687	1	Drain Plug	Accumulator Relief Orifice
20	51M7045	3	O-Ring	19.300 X 2.200 mm
21	14M7298	10	Flange Nut	M8
22	19M7866	5	Screw	M8 X 20
23	19M8125	3	Screw	M8 X 140
24	AH90990	2	Clip	-
25	AZ61684	1	Hydraulic Accumulator	Header Lift
26	HXE20644	1	Plate	-
27	HXE32872	1	Bracket	-
28	R26375	2	O-Ring	-
29	R63922	1	Fitting	-
30	19M7867	2	Screw	M8 X 25
31	AXE48993	1	Line	-
32	38H5166	1	Elbow Fitting	-
33	T77932	1	O-Ring	-
34	51M7047	2	O-Ring	23.600 X 2.900 mm
35	38H5027	1	Elbow Fitting	-
36	38H5240	1	Adapter Fitting	-
37	T77857	2	O-Ring	-
38	M84309	2	Nut	-

Header Lift Flow Control Valve, W/ Grain Tank Doors
