Открытый узел

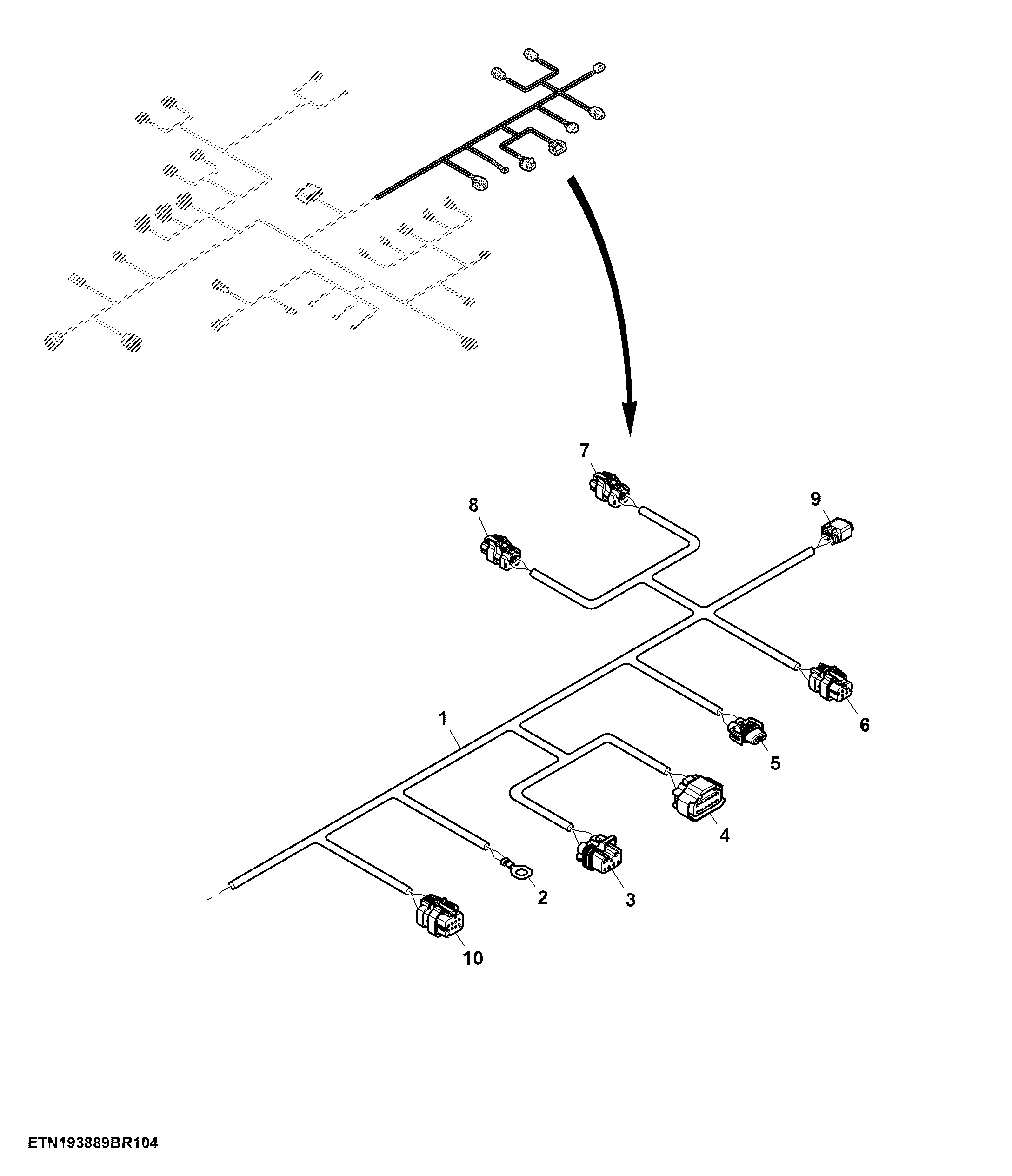

Main Wiring Harness W/O Power Shift Transmission Control Unit, Left Control Unit 2 (4/5) ( - 140116)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE74057	1	Wiring Harness	-
2	57M8865	1	Elec. Connector Terminal	Left Rear Chassis Ground 2
3	57M7494	2	Elec. Connector Terminal	Cavity B, C
3	57M7588	2	Elec. Connector Terminal	Cavity E, G
3	57M9214	2	Elec. Connector Seal	Cavity B, C
3	57M7706	2	Elec. Connector Terminal	Cavity E, G
3	57M7259	3	Elec. Connector Seal	Cavity A, D, F
3	57M9555	1	Clip	-
3	57M7698	1	Elec. Connector Terminal	-
3	57M7697	1	Electrical Connector Assy	-
3	57M7696	1	Elec. Connector Housing	LC2 Main / Chopper Vane Harness
4	57M8304	4	Elec. Connector Terminal	Cavity A, F, G, M
4	57M9448	1	Elec.Connect Locking Device	-
4	57M9220	1	Elec. Connector Housing	-
4	57M8910	1	Clip	-
4	57M9446	2	Elec. Connector Seal	Cavity E, L
4	57M9223	6	Elec. Connector Seal	Cavity B, C, D, H, J, K
4	57M8324	3	Elec. Connector Terminal	Cavity A, F, G
4	57M8299	6	Elec. Connector Terminal	Cavity B, C, D, H, J, K
4	57M8917	1	Elec. Connector Housing	LC2 Main / APC Tailboard Jumper LH Harness
5	57M7371	1	Electrical Connector Assy	-
5	57M9216	2	Elec. Connector Seal	Cavity A, B
5	57M7344	1	Elec. Connector Housing	E39 Left Rear Discharge Light
5	57M7491	2	Elec. Connector Terminal	Cavity A, B
6	57M9817	1	Elec. Connector Housing	LC2 Main / Tail Light Extension Harness
6	R78065	2	Elec. Connector Terminal	Cavity 1, 2
6	57M10663	1	Elec. Connector Terminal	Cavity 3
6	57M7542	1	Elec. Connector Terminal	Cavity 4
6	57M9839	1	Elec. Connector Accessory	-
7	57M9729	1	Elec. Connector Housing	LC2 Main / Left Center Light Extension Harness
7	57M10663	2	Elec. Connector Terminal	Cavity 1, 2
7	57M15493	1	Elec. Connector Accessory	-
7	57M11333	1	Elec. Connector Accessory	-
8	57M9728	1	Elec. Connector Housing	LC2 Main / Left Rear Gullwing Harness
8	57M11333	1	Elec. Connector Accessory	-
8	57M15493	1	Elec. Connector Accessory	-
8	57M9807	2	Elec. Connector Terminal	Cavity 1, 2
9	57M11677	1	Elec. Connector Housing	B75 Object Detection Sensor
9	57M11548	3	Elec. Connector Terminal	Cavity 1, 2, 3
9	57M7955	3	Elec. Connector Seal	Cavity 1, 2, 3
10	57M9792	1	Elec. Connector Housing	LC2 Main / Flex Residue Harness
10	57M9808	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7
10	57M10336	1	Elec. Connector Cavity Plug	Cavity 8
10	57M9842	1	Elec. Connector Accessory	-

Main Wiring Harness W/O Power Shift Transmission Control Unit, Left Control Unit 2 (4/5) ( - 140116)
