Main Wiring Harness W/ Power Shift Transmission Control Unit, Left Control Unit 2 (3/5) ( - 140225)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE74056	1	Wiring Harness	-
2	57M9783	1	Elec. Connector Housing	B99 Aftertreatment Enclosure Filter Restricted Sensor
2	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 3
2	57M9847	1	Elec. Connector Accessory	-
3	57M9219	1	Elec. Connector Seal	Cavity F
3	57M13120	1	Elec. Connector Accessory	-
3	57M9083	1	Elec. Connector Accessory	-
3	R78064	4	Elec. Connector Cavity Plug	Cavity A, D, E, G
3	57M9218	1	Elec. Connector Seal	Cavity H
3	57M9216	2	Elec. Connector Seal	Cavity B, C
3	57M7298	1	Elec. Connector Terminal	Cavity H
3	57M9547	1	Elec. Connector Terminal	Cavity F
3	57M7299	2	Elec. Connector Terminal	Cavity B, C
3	57M8986	1	Elec. Connector Housing	A11 Left Power Module 2A- J3 (Blue)
4	57M8985	1	Elec. Connector Housing	A11 Left Power Module 2A- J1 (Green)
4	57M12120	1	Elec. Connector Accessory	-
4	57M9083	1	Elec. Connector Accessory	-
4	R78064	3	Elec. Connector Cavity Plug	Cavity A, D, H
4	57M9549	2	Elec. Connector Seal	Cavity F, G
4	57M9218	1	Elec. Connector Seal	Cavity E
4	57M9216	2	Elec. Connector Seal	Cavity B, C
4	57M8294	2	Elec. Connector Terminal	Cavity F, G
4	57M7298	1	Elec. Connector Terminal	Cavity E
4	57M7299	2	Elec. Connector Terminal	Cavity B, C
5	AH225366	2	Clip	-
6	57M10233	5	Tie Band	-
7	57M10421	1	Elec. Connector Accessory	-
8	57M9536	1	Elec. Connector Terminal	Debris Management Sensor Static Ground

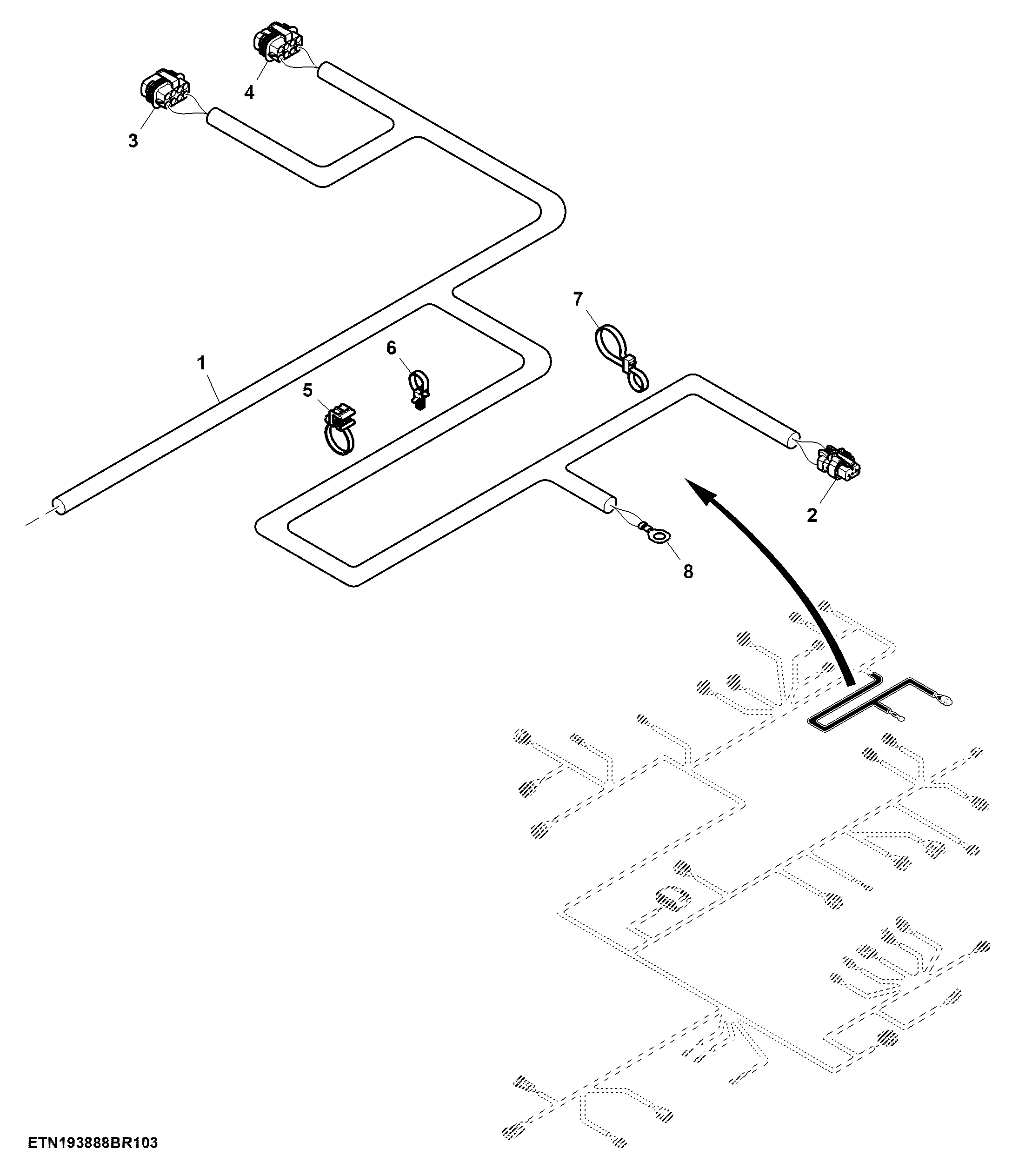

Main Wiring Harness W/ Power Shift Transmission Control Unit, Left Control Unit 2 (3/5) ( - 140225)
