Main Wiring Harness W/ Power Shift Transmission Control Unit, Left Control Unit 2 (2/4) (140226 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

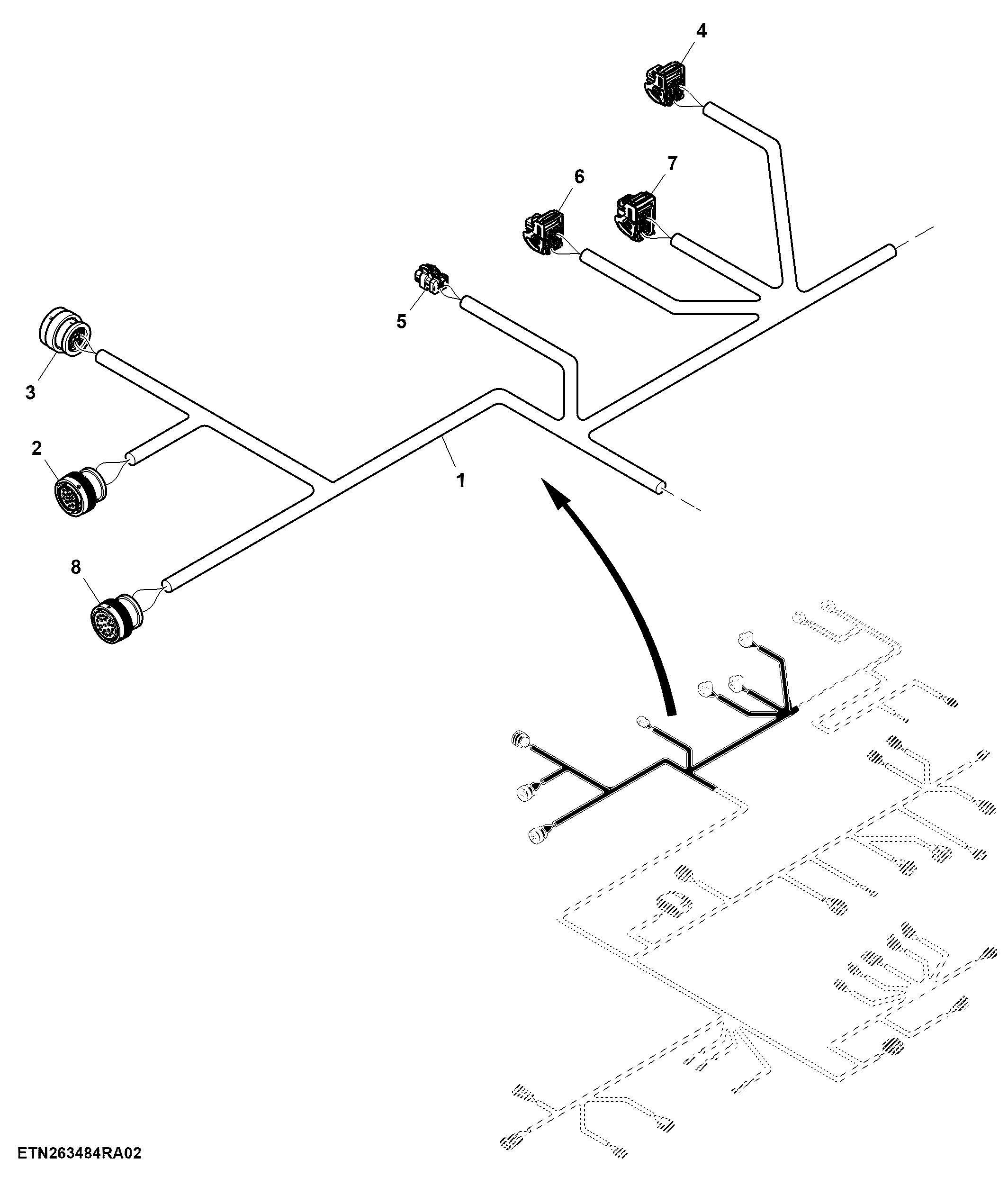

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE89754	1	Wiring Harness	-
2	57M9513	1	Elec. Connector Housing	LC1 Main Harness / LC2 Main Harness
2	57M8537	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6, 13, 19
2	57M7546	2	Elec. Connector Terminal	Cavity 5, 7
2	57M8593	1	Elec. Connector Terminal	Cavity 8
2	R78065	2	Elec. Connector Terminal	Cavity 9, 17
2	57M8569	4	Elec. Connector Terminal	Cavity 10, 12, 16, 18
2	57M8261	1	Elec. Connector Terminal	Cavity 11
2	57M10663	1	Elec. Connector Terminal	Cavity 14
2	R78069	1	Elec. Connector Cavity Plug	Cavity 15
2	57M10485	1	Elec. Connector Accessory	-
3	R78065	1	Elec. Connector Terminal	Cavity 5
3	57M10485	1	Elec. Connector Accessory	-
3	R78069	6	Elec. Connector Cavity Plug	Cavity 7, 8, 9, 16, 21, 28
3	57M9925	5	Elec. Connector Terminal	Cavity 18, 20, 23, 24, 27
3	57M8537	12	Elec. Connector Terminal	Cavity 6, 10, 11, 12, 13, 14, 15, 17, 19, 22, 25, 26
3	57M8593	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
3	57M8795	1	Elec. Connector Housing	LC1 Main Harness / LC2 Main Harness
4	57M10609	1	Elec. Connector Housing	A10 Control Unit LC2 (J1)
4	57M10590	12	Elec. Connector Housing	Cavity A1, A2, B1, B2, B3, C1, C2, D1, D2, E1, E2, F3
4	57M10488	5	Elec. Connector Terminal	Cavity B4, C4, D4, E4, F1
4	57M10333	6	Elec. Connector Cavity Plug	Cavity A3, A4, C3, D3, F2, F4
4	57M10331	1	Elec. Connector Terminal	Cavity H1
4	57M10617	2	Elec. Connector Housing	Cavity H3, H4
4	57M10334	5	Elec. Connector Cavity Plug	Cavity G1, G2, G3, G4, H2
5	57M9817	1	Elec. Connector Housing	Grain Loss Sensor 2
5	57M9840	1	Elec. Connector Accessory	-
5	57M10319	2	Elec. Connector Terminal	Cavity 1, 2
5	57M10631	2	Elec. Connector Terminal	Cavity 3, 4
6	57M10606	1	Elec. Connector Housing	A10 Control Unit LC2 (J3)
6	57M10488	10	Elec. Connector Terminal	Cavity B1, C1, C3, C4, D2, E3, E4, F1, F2, F4
6	57M10590	5	Elec. Connector Housing	Cavity C2, D3, D4, E2, F3
6	57M10333	8	Elec. Connector Cavity Plug	Cavity A1, A2, A3, A4, B2, B3, B4, D1
6	57M10331	4	Elec. Connector Terminal	Cavity G2, G3, G4, H3
6	57M10617	2	Elec. Connector Housing	Cavity H1, H2
6	57M10334	2	Elec. Connector Cavity Plug	Cavity G1, H4
6	57M10604	1	Elec. Connector Housing	-
7	57M10488	9	Elec. Connector Terminal	Cavity A2, A4, B1, B4, C4, D4, G4, J4, K4
7	57M10613	1	Elec. Connector Housing	-
7	57M10334	3	Elec. Connector Cavity Plug	Cavity M1, M2, M3
7	57M10331	2	Elec. Connector Terminal	Cavity L3, L4
7	57M10617	2	Elec. Connector Housing	Cavity L1, L2
7	57M10333	21	Elec. Connector Cavity Plug	Cavity A1, A3, B2, B3, C2, C3, D2, D3, E2, E3, E4, F1, F2, F3, G2, H1, H2, J1, J2, K1, K2
7	57M10590	10	Elec. Connector Housing	Cavity C1, D1, E1, F4, G1, G3, H3, H4, J3, K3
7	57M10420	1	Elec. Connector Housing	A10 Control Unit LC2 (J2)
8	57M10735	1	Elec. Connector Housing	LC1 Main Harness / LC2 Main Harness (PTP)
8	R78065	4	Elec. Connector Terminal	Cavity A, C, F, M
8	57M8537	4	Elec. Connector Terminal	Cavity P, R, S, T
8	R78069	13	Elec. Connector Cavity Plug	Cavity B, D, E, G, H, J, K, L, N, U, V, W, X
8	57M10485	1	Elec. Connector Accessory	-
