Main Hydraulic Filter Assembly and Hoses, Bundle Supports, ProDrive™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1033	1	Tee Fitting	-
2	T76938	1	O-Ring	-
3	19M7784	2	Screw	M10 X 20
4	AH233071	3	Bracket	-
5	19M7801	1	Screw	M8 X 60
6	19M7868	1	Screw	M8 X 30
7	H121166	1	Plate	-
8	14M7298	1	Flange Nut	M8
9	H163410	2	Hose Clamp	-
10	AH234092	1	Hydraulic Hose	LGTH = 460 mm, Return, Tilt Valve to Filter HillMaster™
11	T77858	1	O-Ring	-
12	R29936	1	O-Ring	-
13	38H1042	1	Tee Fitting	-
14	AH132031	1	Fitting	-
15	AH161787	1	Hydraulic Hose	LGTH = 3600 mm, Return, Reel Drive, Valve to Filter
16	AH223467	1	Hydraulic Hose	LGTH = 2950 mm, Case Return, Hydro Bypass Valve to Hydro Pump
17	AH232787	1	Check Valve	Hydro Cooler Bypass
18	19M7866	7	Screw	M8 X 20
19	AH97280	1	Clip	-
20	H156670	2	Clamp	-
21	T72393	1	Clamp	-
22	AH226446	1	Clamp	-
23	38H1002	1	Tee Fitting	-
24	R49921	1	Clamp	-
25	38H1027	1	Tee Fitting	-
26	AH215042	1	Hydraulic Hose	LGTH = 2750 mm, Case Return, Hydro, Motor to Bypass Valve
27	AH225489	1	Hydraulic Hose	LGTH = 1910 mm, Suction, Reel Drive, ProDrive™
27	AXE11369	1	Hydraulic Hose	LGTH = 1860 mm, Suction, Reel Drive, ProDrive™
28	T76938	2	O-Ring	-
29	AH213385	1	Hydraulic Hose	LGTH = 3350 mm, Main Return, Filter to Reservoir, ProDrive™
30	38H1071	1	Adapter Fitting	-
31	R112693	1	Clamp	-
32	19M7799	1	Screw	M8 X 45

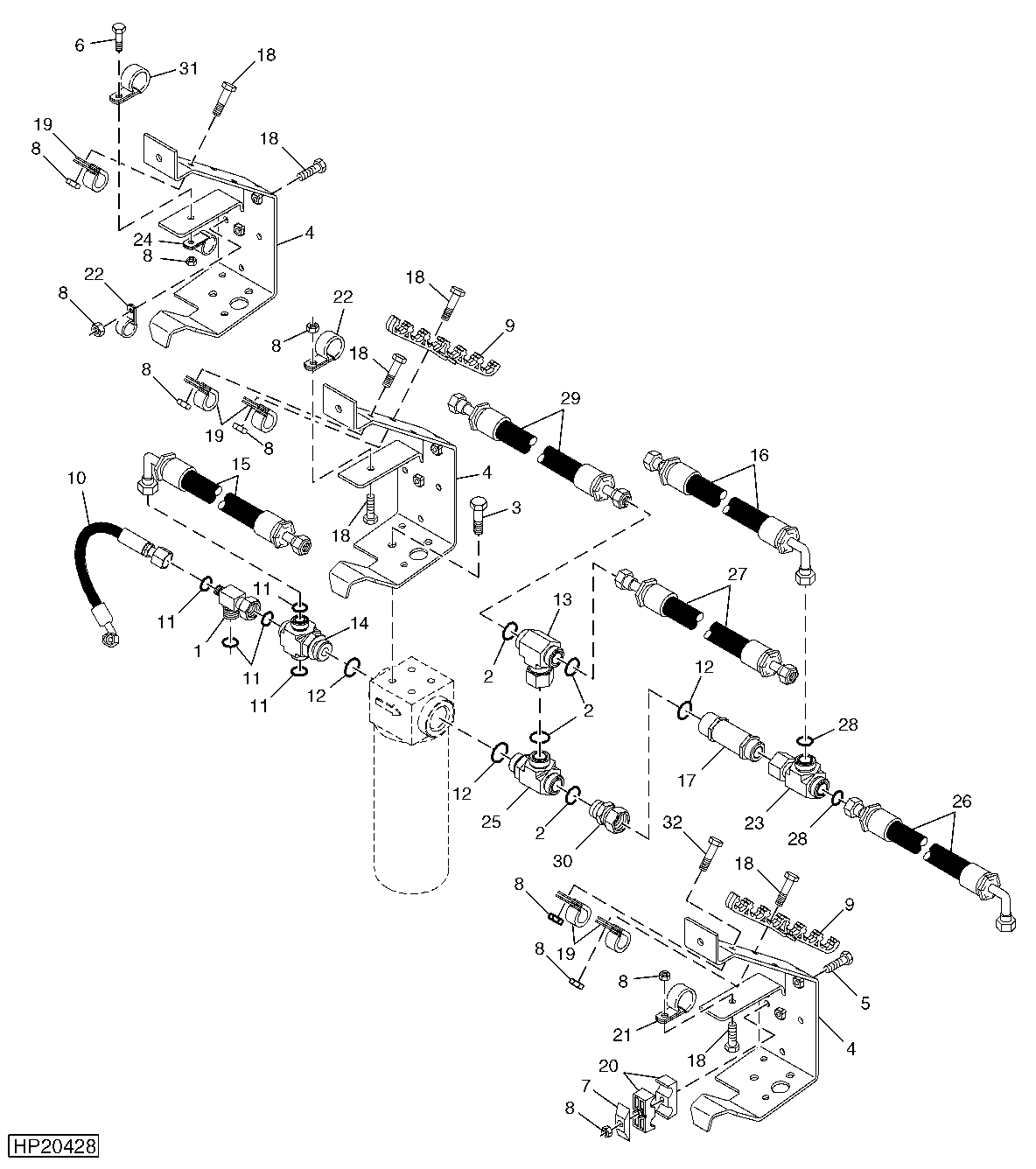

Main Hydraulic Filter Assembly and Hoses, Bundle Supports, ProDrive™
