Открытый узел

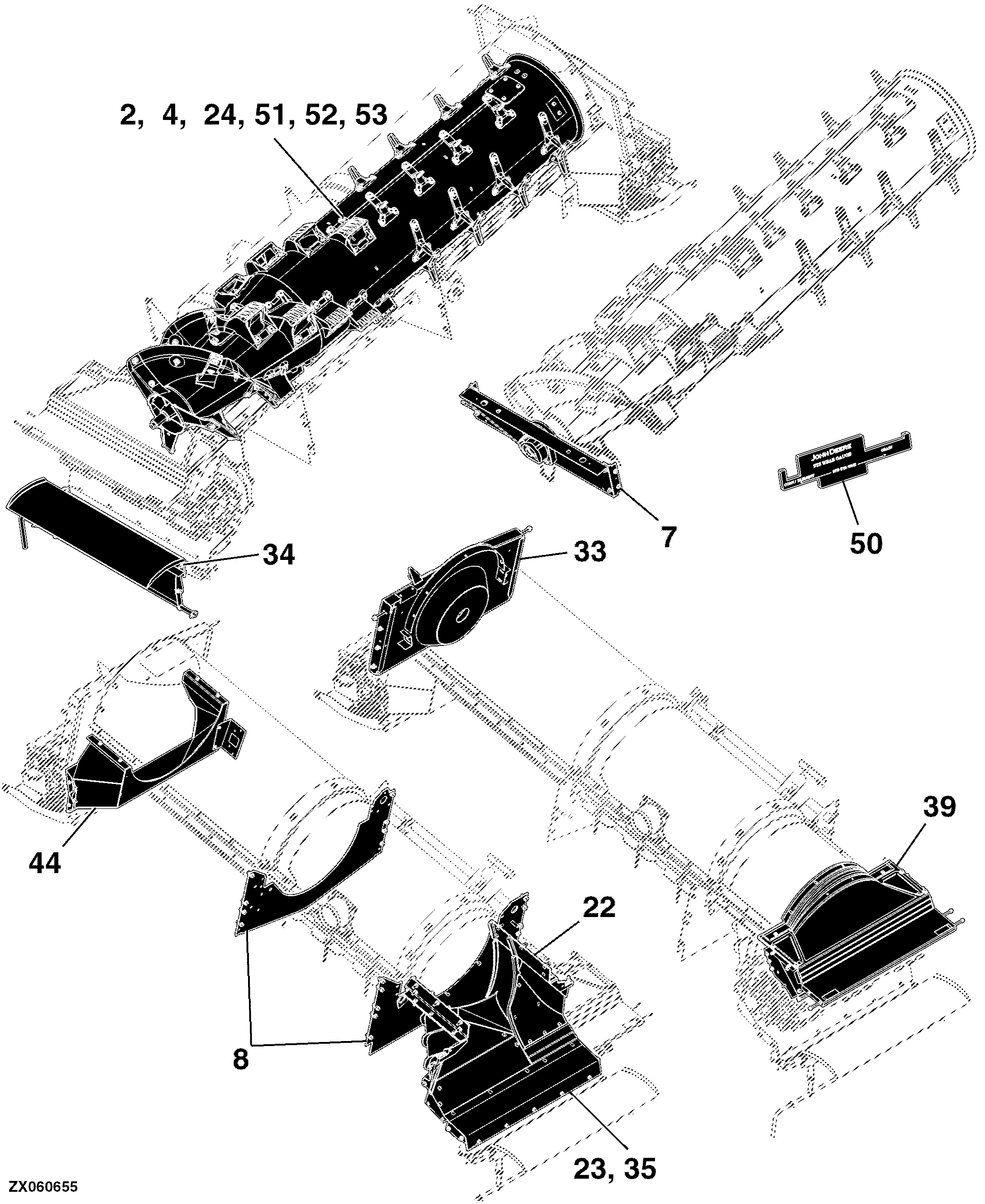

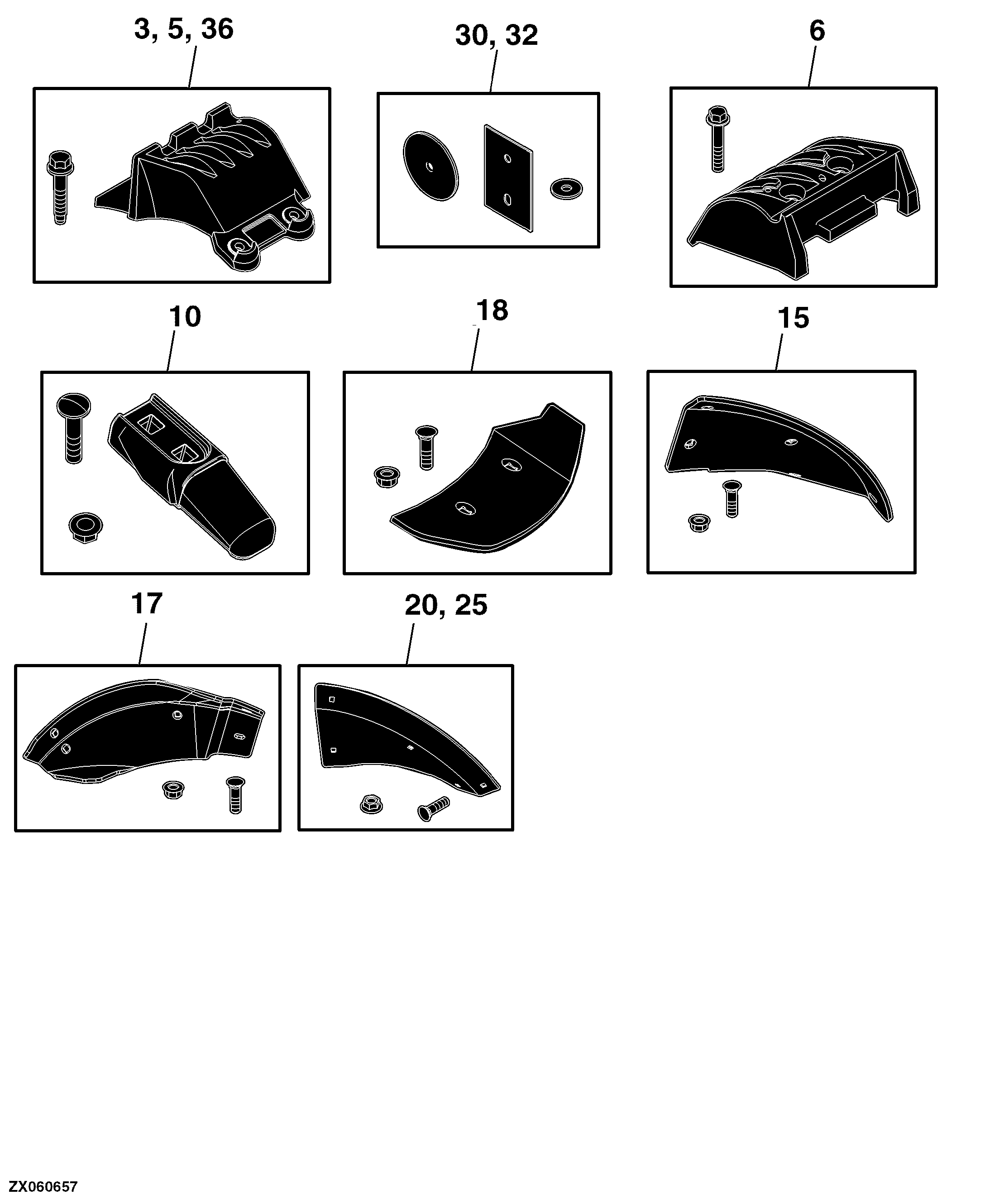

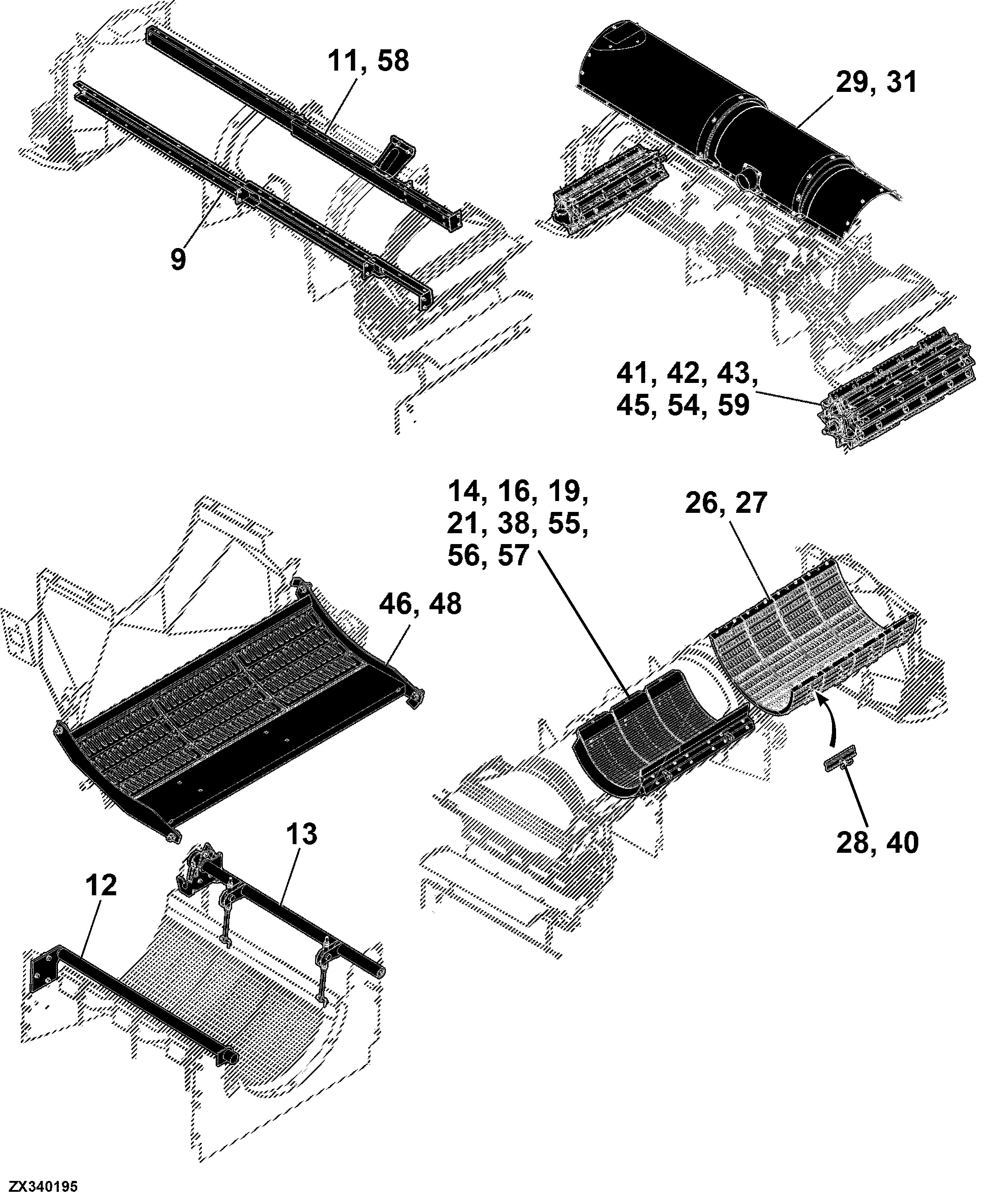

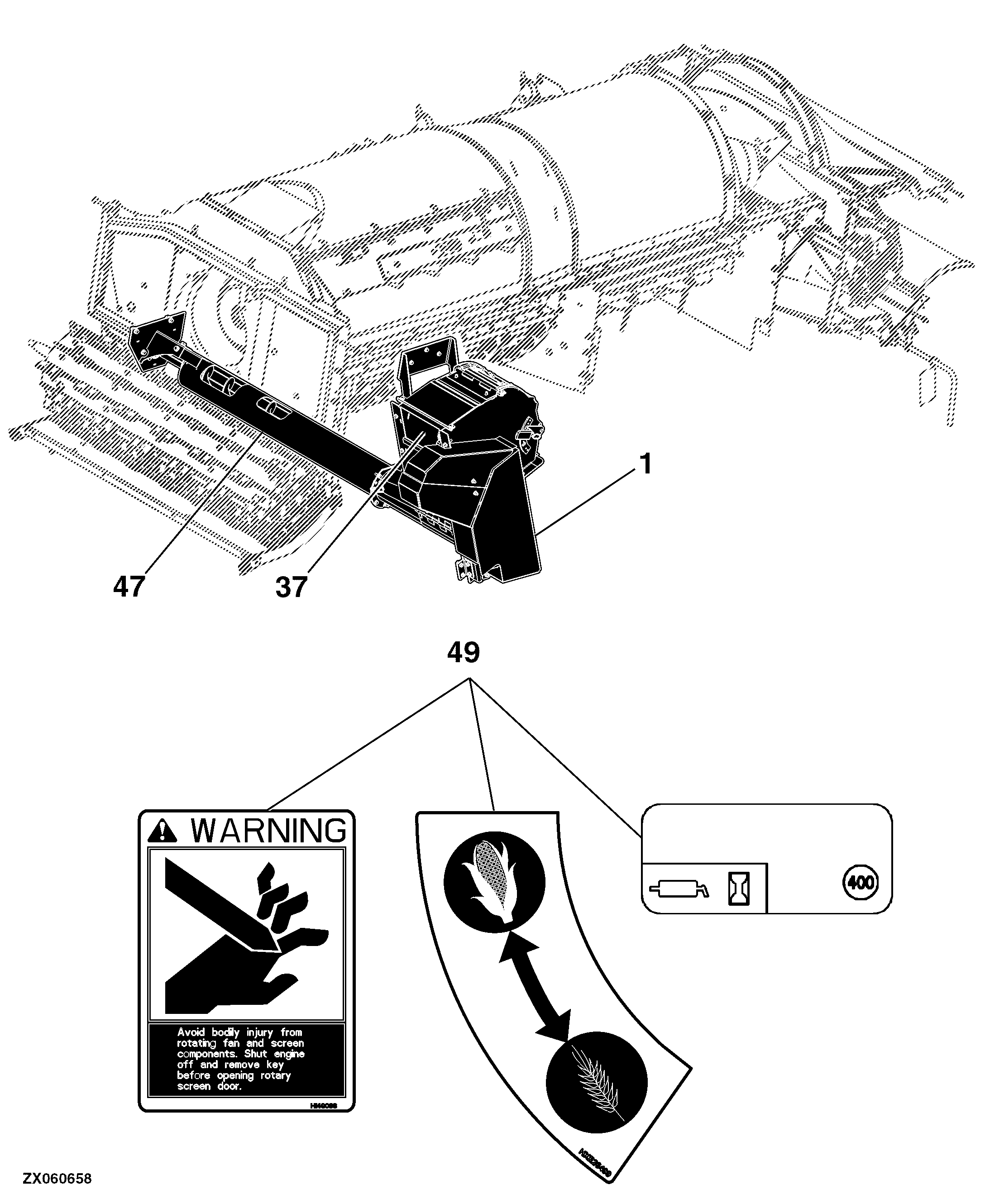

120 Threshing and Separation S690HM - MY14

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Separator Top Covers and Seals, Regular	-
-	-	1	Rotary Top Covers, Adjustable Conical, Regular Wear	-
-	-	1	Rotor Assembly Kit, Thick, Grain	-
-	-	1	Rotor Assembly Kit, Thick, Rice	-
-	-	1	Rotor Wear Gauge Kit	-
-	-	1	Round Bar Concave - Regular	-
-	-	1	Separator Bulkhead Support	-
-	-	1	Separator Grate	-
-	-	1	Separator Grate Covers	-
-	-	1	Separator Grate, Heavy Duty, Welded	-
-	-	1	Separator Locking Stone Trap	-
-	-	1	Separator Rail, Conical - LH, Standard	-
-	-	1	Separator Rail, RH, Regular	-
-	-	1	Separator Stone Trap Floor and Seals	-
-	-	1	Separator Tine Kit, Variable Stream Rotor, High Wear	-
-	-	1	Rice Enhancement, Variable Stream Rotor, Attachment	-
-	-	1	Small / Large Wire Concave – Regular	-
-	-	1	Small Wire Concave - Regular	-
-	-	1	Tailings Rethresher Beater	-
-	-	1	Tailings Rethresher Housing	-
-	-	1	Tailings Rethresher Return Auger	-
-	-	1	Text Free Separator Decal W/ Rethresher	-
-	-	1	Threshing Element Kit, High Wear, Corn and Grain, 2N	-
-	-	1	Threshing Element Kit, High Wear, Grain	-
-	-	1	Threshing Element Kit, Standard	-
-	-	1	TriStream™ Rotor Assembly, Regular Wear	-
-	-	1	Variable Stream Rotor Kit	-
-	-	1	Variable Stream Rotor, Regular, Grain	-
-	-	1	Variable Stream Rotor, Threshing Element Kit, Grain High Wear	-
-	-	1	Wide Feed Housing	-
-	-	1	Discharge Housing	-
-	-	1	Attachment, Large Wire/ Regular Wear Concave Kit	-
-	-	1	Attachment, Rear Feed Flight, Variable Stream Rotor	-
-	-	1	Attachment, Separator Grate Covers	-
-	-	1	Balance Weight Kit	-
-	-	1	Balance Weight Kit	-
-	-	1	Concave Support, LH	-
-	-	1	Concave Support, RH	-
-	-	1	Concave, Mini Round Bar	-
-	-	1	Discharge Beater Assembly	-
-	-	1	Discharge Beater Assembly, Fast	-
-	-	1	Discharge Beater Grate, Premium Flex Residue	-
-	-	1	Discharge Beater Grate, Thresh	-
-	-	1	Discharge Beater, Premium Residue, High Capacity	-
-	-	1	Discharge Flights Kit, Variable Stream Rotor	-
-	-	1	Attachment, Flat Bar Concave Covers	-
-	-	1	Feed Accelerator and Rear Discharge Beater Wings Kit	-
-	-	1	Feed Accelerator Anti Wrap Kit	-
-	-	1	Feed Floor Liner, LH	-
-	-	1	Front Beater Cover	-
-	-	1	Front Feed Flight Kit, Variable Stream Rotor	-
-	-	1	Front Rotor Bearing and Supports	-
-	-	1	Front Rotor Flight Kit	-
-	-	1	Grate Filler Cover, Heavy Duty	-
-	-	1	High Wear Separator Rail Kit, LH	-
-	-	1	Large Wire Concave - Regular	-
-	-	1	Large Wire Concave, Regular Wear, Attachment	-
-	-	1	Rear Bulkhead and Gearbox Support	-
-	-	1	Rear Rotor Flight Kit	-

120 Threshing and Separation S690HM - MY14

Нет текстового описания
