Loading Auger Housing, 400 Bushels, Manual Fold

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7191	1	Bolt	M10 X 25
2	14M7296	1	Flange Nut	M10
3	19M7817	1	Screw	M12 X 70, USE WITH HXE137548
3	19M7815	1	Screw	M12 X 60, USE WITH HXE129958, HXE100161 OR HXE100162
4	19M7866	4	Screw	M8 X 20
5	24M7180	1	Washer	13 X 37 X 3 mm
6	H137916	1	Shim	TK = 0.762 mm
7	HXE100162	1	Support	For Rice Only
7	HXE137548	1	Support	Extended Wear, SUB FOR HXE100161 OR HXE129958; ALSO ORDER 19M7817 AND HXE127153
8	H236285	1	Bracket	-
9	H236286	1	Bracket	-
10	HXE100164	1	Deflector	For Rice Only
10	HXE100163	1	Deflector	Extended Wear, SUB FOR H236287
11	JD10384	1	Bearing	-
12	N15764	2	Pressed Flanged Housing	-
13	24M7296	3	Washer	10.500 X 30 X 2.500 mm
14	14M7298	6	Flange Nut	M8
15	H229875	6	Bolt	-
16	11M7081	3	Cotter Pin	2.500 X 20 mm
17	14M7165	4	Lock Nut	M6
18	H161342	2	Lever	-
19	H161581	2	Pin	-
20	H161346	2	U-Bolt	-
21	AXE83882	1	Housing	SUB FOR AXE56595
22	H143731	4	Push Nut	-
23	RV810A	2	Pin Fastener	-
24	AXE14164	1	Support	-
25	14M7299	2	Flange Nut	M12
26	H137328	2	Lock Nut	-
27	HXE13660	2	Bushing	-
28	14M7276	1	Nut	M16
29	H227458	1	Spring	-
30	H235340	1	Bolt	-
31	45M7057	1	Pin Fastener	16 X 45 mm
32	11M7021	1	Cotter Pin	4 X 25 mm
33	HXE148973	8	Bolt	M10 X 30
34	H141123	4	Push Nut	-
35	19M7820	1	Screw	M12 X 100
36	A31869	1	Lock Nut	-
37	H172174	1	Eyebolt	-
38	03M7184	2	Bolt	M8 X 20
39	H85184	1	Handle	-
40	AXE17977	1	Gas Operated Cylinder	-
41	HXE29370	1	Pin	-
42	H157762	1	Plate	Front
43	HXE31794	1	Channel	Low
44	AXE21201	1	Arm	Up
45	14M7589	1	Lock Nut	M16
46	24M7241	2	Washer	17 X 34 X 4 mm
47	HXE99951	1	Pin	-
48	19M7785	1	Screw	M10 X 25
49	HXE127153	1	Deflector	USE WITH HXE137548
50	14M7400	9	Lock Nut	M10

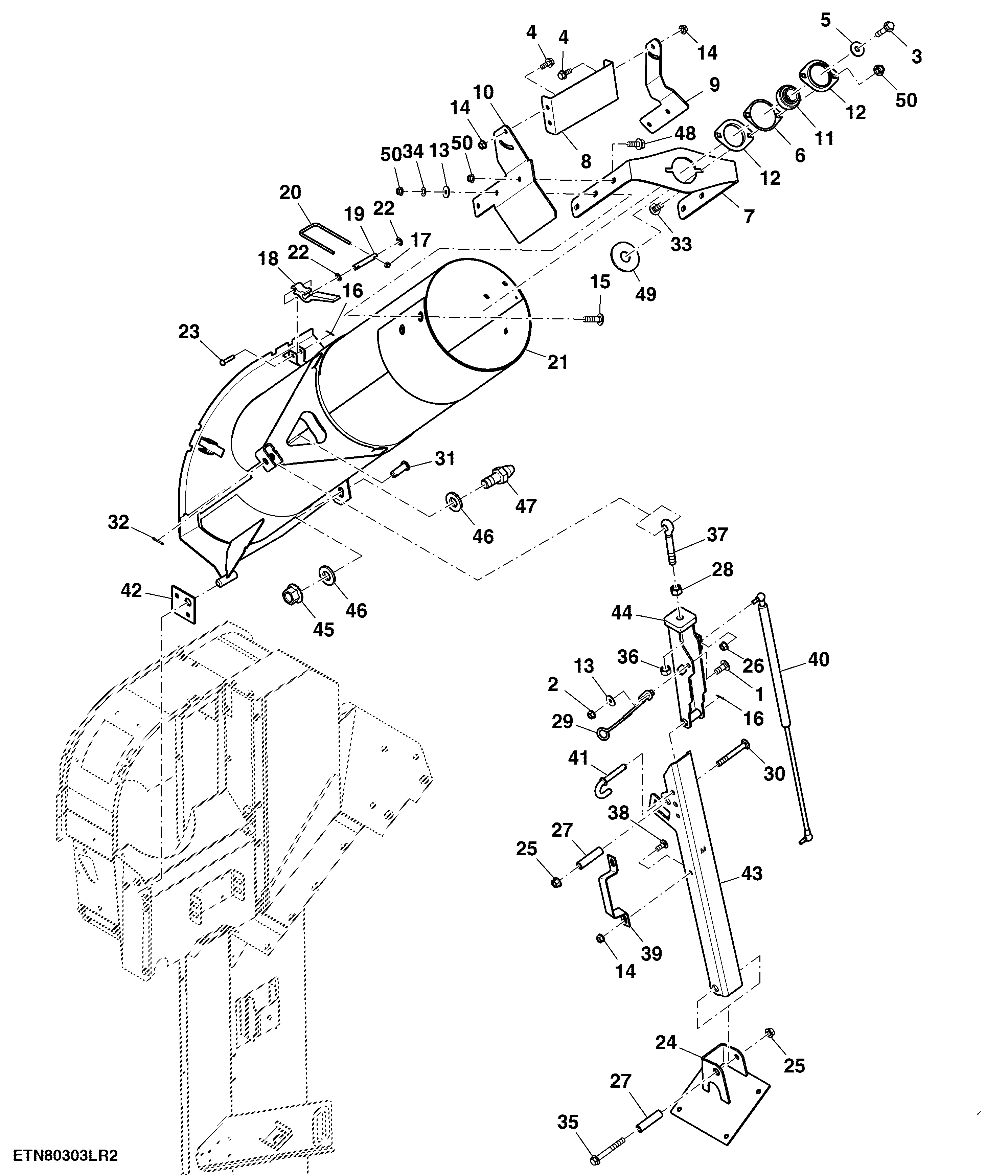

Loading Auger Housing, 400 Bushels, Manual Fold
