Steering Column Single Tilt Telescope, Low Spec Version

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE74421	1	Steering Column	SUB FOR AL210646 AND AL202447
2	AL203544	1	Cover	-
3	AL203545	1	Cover	-
4	AL203546	1	Cover	-
5	L204196	1	Boot	-
6	AL211943	1	Cover	SUB FOR AL203547
7	AL203554	1	Gas Operated Cylinder	-
8	AL203556	1	Pedal	-
9	AXE74429	1	Shaft	USE WITH AXE74421
9	AL203557	1	Shaft	USE WITH AL210646
10	AL203562	1	Pivot	-
11	AL203957	1	Link	-
12	L207394	1	Plug	-
13	RE183935	1	Key	-
14	R44342	1	Nut	-
15	L204195	1	Label	-
16	AXE60127	1	Module	SUB FOR AXE36775 AND AH233944
17	AL204364	1	Wiring Harness	Steering Column Wiring Harness
18	L204225	1	Plug	-
19	RE61717	1	Rotary Switch	-
20	L203771	1	Flange	USE WITH AL202447
21	H137328	4	Lock Nut	USE WITH AL202447
22	AXE74427	1	Steering Column	SUB FOR AXE62947 AND AL210647
23	19M7169	4	Cap Screw	M10 X 35, USE WITH AL202447
24	T268288	2	Isolator	SUB FOR T230463; USE WITH AL210646
25	L203985	4	Bushing	USE WITH AL202447
26	L203772	1	Seal	-
27	14M7298	4	Flange Nut	M8
28	57M7399	4	Elec. Connector Seal	Cavity 9, 10, 14, 15
28	57M10371	4	Elec. Connector Terminal	Cavity 9, 10, 14, 15
28	57M10560	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 17
28	57M7400	14	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 11, 13, 16, 17, 20, 23
28	57M8732	5	Elec. Connector Terminal	Cavity 11, 13, 16, 20, 23
28	57M8084	1	Elec. Connector Accessory	-
28	57M8076	1	Elec. Connector Terminal	-
28	57M8070	1	Elec. Connector Housing	Cab Main / Steering Column
29	R77480	1	Electrical Connector Assy	Start Aid Switch S3
29	57M9461	2	Elec. Connector Terminal	Cavity A, B
30	L78202	1	Elec. Connector Housing	Key Switch S1
30	57M7106	3	Elec. Connector Terminal	-
30	57M7089	1	Elec. Connector Terminal	-
31	57M9145	1	Elec. Connector Housing	Steering Column Module A89
31	F053303	7	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8
31	57M9151	1	Elec. Connector Seal	Cavity 2

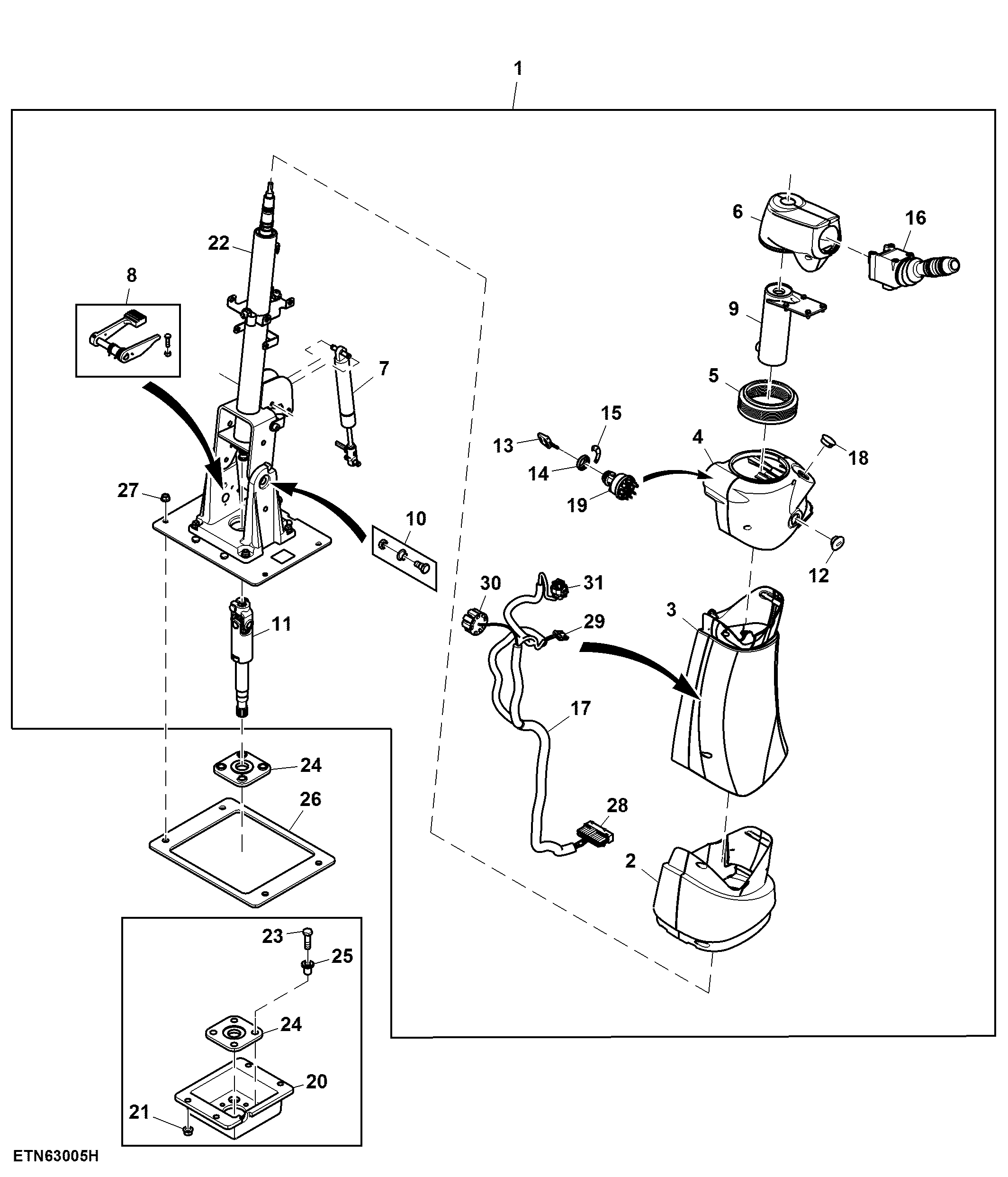

Steering Column Single Tilt Telescope, Low Spec Version
