Открытый узел

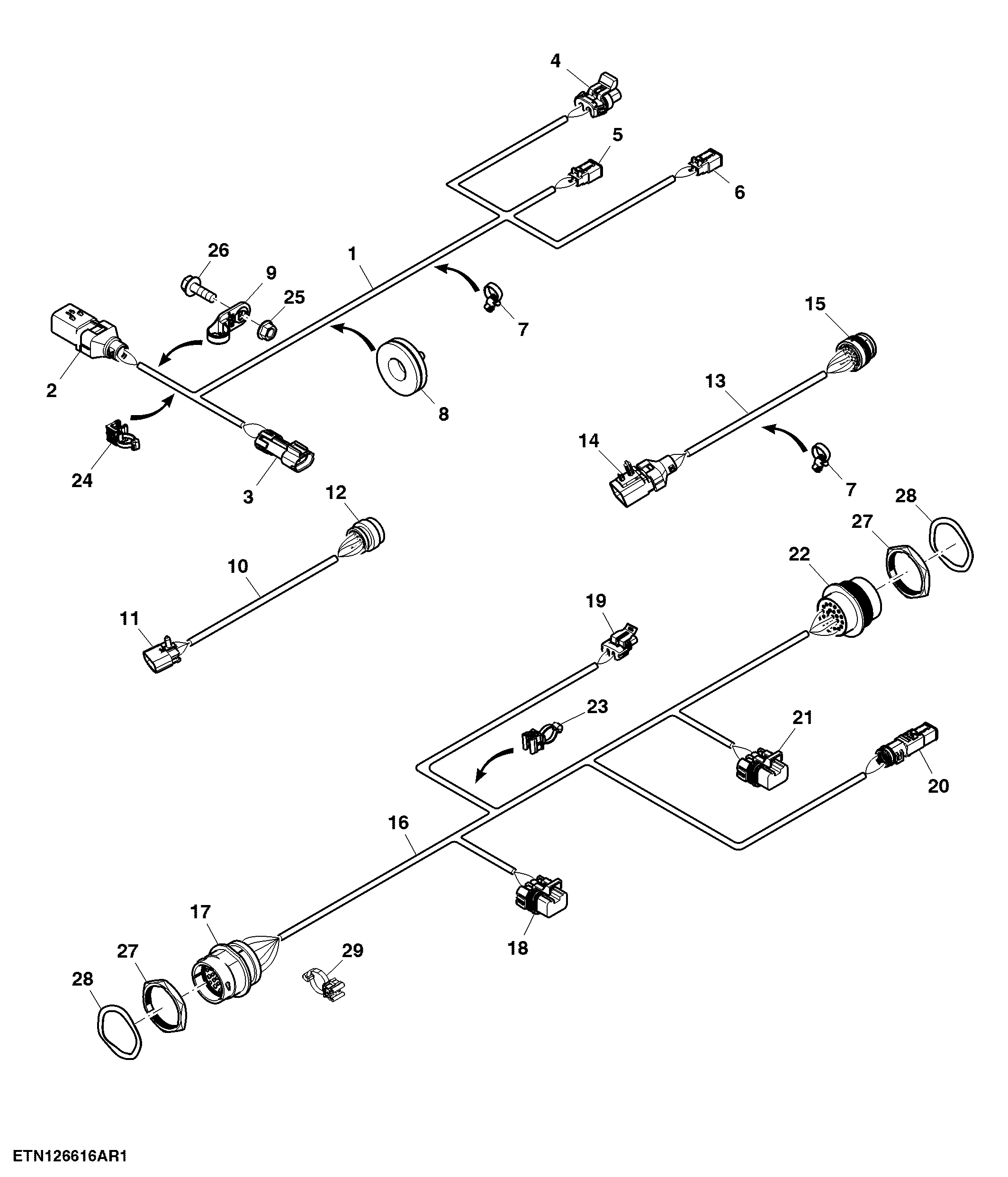

Wiring Harness, Tailboard, Advanced PowerCast™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE37974	1	Wiring Harness	-
2	57M9796	1	Elec. Connector Housing	Premium Flex Residue Harness
2	57M9939	1	Elec. Connector Accessory	-
2	57M9842	1	Elec. Connector Accessory	-
2	57M9812	3	Elec. Connector Terminal	-
2	57M10336	5	Elec. Connector Cavity Plug	-
3	57M9217	2	Elec. Connector Seal	-
3	57M9555	1	Clip	-
3	57M10422	1	Elec. Connector Housing	-
3	57M7286	2	Elec. Connector Terminal	-
3	57M7369	1	Elec. Connector Housing	Premium Flex Residue Harness
4	57M9961	1	Elec. Connector Housing	Right Chopper Raised, Lower Actuator
4	57M9563	2	Elec. Connector Cable Seal	-
4	57M7588	2	Elec. Connector Terminal	-
4	57M9962	1	Elec.Connect Locking Device	-
5	57M10517	1	Elec. Connector Housing	B71_Chopper_Position_Sensor
5	57M8022	1	Elec.Connect Locking Device	-
5	57M8165	2	Elec. Connector Terminal	-
6	57M10517	1	Elec. Connector Housing	B14_Chopper_Speed_Sensor
6	57M8165	2	Elec. Connector Terminal	-
6	57M8022	1	Elec.Connect Locking Device	-
7	57M10233	1	Tie Band	-
8	H94433	4	Grommet	-
9	57M10528	2	Elec. Connector Accessory	-
10	AXE40639	1	Wiring Harness	-
11	57M8324	4	Elec. Connector Terminal	-
11	57M9223	6	Elec. Connector Seal	-
11	57M8308	4	Elec. Connector Terminal	-
11	57M10794	6	Elec. Connector Terminal	-
11	57M9448	1	Elec.Connect Locking Device	-
11	57M8910	1	Clip	-
11	57M9220	1	Elec. Connector Housing	Left Control Unit 2
12	57M8569	4	Elec. Connector Terminal	-
12	57M8704	1	Elec. Connector Accessory	-
12	57M9808	6	Elec. Connector Terminal	-
12	57M9513	1	Elec. Connector Housing	Left APC Trail Board
13	AXE40915	1	Wiring Harness	-
14	57M9804	1	Elec. Connector Housing	Right Main
14	57M9812	6	Elec. Connector Terminal	-
14	57M10322	1	Elec. Connector Terminal	-
14	57M9844	1	Elec. Connector Accessory	-
14	57M9940	1	Elec. Connector Accessory	-
15	57M8704	1	Elec. Connector Accessory	-
15	57M9808	6	Elec. Connector Terminal	-
15	57M8794	1	Elec. Connector Housing	Right APC Trail Board
15	57M10321	1	Elec. Connector Terminal	-
16	AXE91096	1	Wiring Harness	SUB FOR AXE44972
17	57M9511	1	Elec. Connector Housing	Left Residue APC Tailboard Harness
17	57M8538	6	Elec. Connector Terminal	-
17	57M8260	4	Elec. Connector Terminal	-
17	Z78008	7	Elec. Connector Seal	-
17	R78069	2	Elec. Connector Cavity Plug	-
18	57M7576	2	Elec. Connector Terminal	-
18	57M7698	1	Elec. Connector Terminal	-
18	57M7259	1	Elec. Connector Seal	-
18	57M9214	4	Elec. Connector Seal	-
18	57M7581	2	Elec. Connector Terminal	-
18	57M7494	4	Elec. Connector Terminal	-
18	57M7696	1	Elec. Connector Housing	Left Shroud Actuator
19	57M7254	1	Elec. Connector Housing	Single Spreader Speed Solenoid
19	57M7494	2	Elec. Connector Terminal	-
19	57M9214	2	Elec. Connector Seal	-
19	57M9556	1	Elec. Connector Accessory	-
20	57M8022	1	Elec.Connect Locking Device	-
20	57M10486	1	Elec. Connector Accessory	-
20	57M9808	1	Elec. Connector Terminal	-
20	57M10517	1	Elec. Connector Housing	APC Disc Speed Sensor
20	57M10321	1	Elec. Connector Terminal	-
21	57M7696	1	Elec. Connector Housing	Right Shroud Actuator
21	57M7494	4	Elec. Connector Terminal	-
21	57M7581	2	Elec. Connector Terminal	-
21	57M9214	4	Elec. Connector Seal	-
21	57M7576	2	Elec. Connector Terminal	-
21	57M7259	1	Elec. Connector Seal	-
21	57M7698	1	Elec. Connector Terminal	-
22	57M8164	3	Elec. Connector Terminal	-
22	Z78008	19	Elec. Connector Seal	-
22	57M8538	1	Elec. Connector Terminal	-
22	57M7750	1	Elec. Connector Housing	Right Residue APC Tailboard Harness
23	AH225363	1	Clip	-
24	AH225366	1	Clip	-
25	14M7298	3	Flange Nut	M8
26	19M7867	3	Screw	M8 X 25
27	57M8035	2	Nut	-
28	57M9061	2	Elec.Connect Locking Device	-
29	AH225364	2	Clip	-

Wiring Harness, Tailboard, Advanced PowerCast™

Нет текстового описания
