Открытый узел

Wiring Harness, Cab Power Module 2

Wiring Harness, Cab Power Module 2

Wiring Harness, Cab Power Module 2

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Wiring Harness, Cab Power Module 2

Нет текстового описания

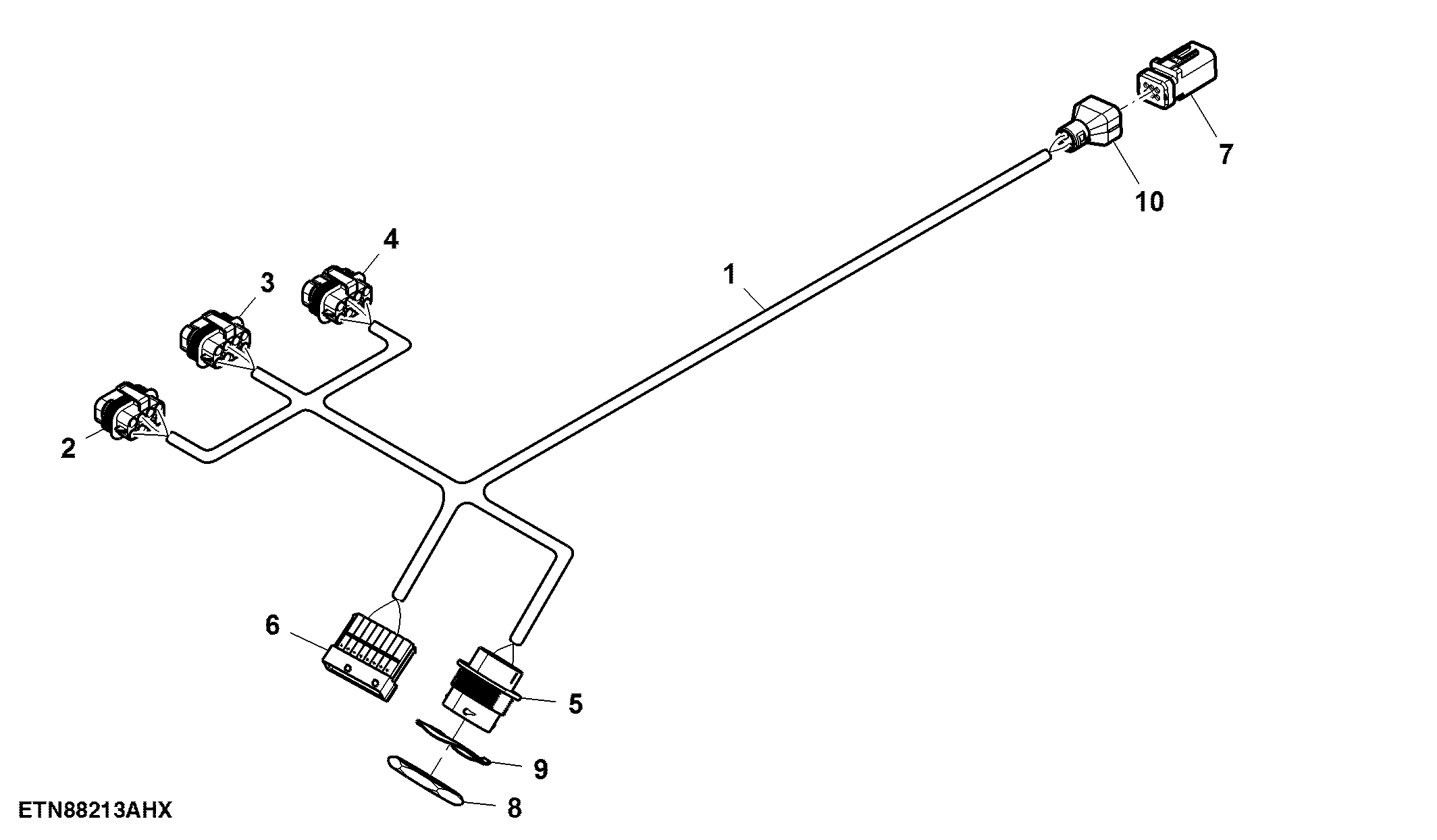

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL211475	1	Wiring Harness	-
2	57M8986	1	Elec. Connector Housing	A116 Cab Power Module 1B (CPMB)
2	57M9218	2	Elec. Connector Seal	Cavity G, H
2	R78064	3	Elec. Connector Cavity Plug	Cavity B, C, D
2	57M9219	3	Elec. Connector Seal	Cavity A, E, F
2	57M7491	2	Elec. Connector Terminal	Cavity G, H
2	57M7297	1	Elec. Connector Terminal	Cavity F
2	57M7298	2	Elec. Connector Terminal	Cavity A, E
2	57M9083	1	Elec. Connector Accessory	-
3	57M8983	1	Elec. Connector Housing	A116 Cab Power Module 1B (CPMB)
3	57M9083	1	Elec. Connector Accessory	-
3	57M7299	3	Elec. Connector Terminal	Cavity A, C, D
3	57M7491	1	Elec. Connector Terminal	Cavity B
3	57M9217	3	Elec. Connector Seal	Cavity A, C, D
3	57M9218	1	Elec. Connector Seal	Cavity B
3	R78064	4	Elec. Connector Cavity Plug	Cavity E, F, G, H
4	57M9218	1	Elec. Connector Seal	Cavity E
4	57M9219	4	Elec. Connector Seal	Cavity D, F, G, H
4	R78064	3	Elec. Connector Cavity Plug	Cavity A, B, C
4	57M7297	2	Elec. Connector Terminal	Cavity F, G
4	57M7298	2	Elec. Connector Terminal	Cavity D, H
4	57M9083	1	Elec. Connector Accessory	-
4	57M8985	1	Elec. Connector Housing	A116 Cab Power Module 1B (CPMB)
4	57M7491	1	Elec. Connector Terminal	Cavity E
5	57M8592	3	Elec. Connector Terminal	Cavity X, Y, Z
5	Z78007	1	Elec. Connector Seal	Cavity R
5	57M7905	2	Electrical Connector Assy	Cavity S, U
5	R78069	3	Elec. Connector Cavity Plug	Cavity T, V, W
6	57M8082	1	Elec. Connector Accessory	-
6	57M7399	2	Elec. Connector Seal	Cavity 11, 12
6	57M7400	3	Elec. Connector Seal	Cavity 2, 7, 8
6	57M10371	2	Elec. Connector Terminal	Cavity 11, 12
6	57M10560	2	Elec. Connector Terminal	Cavity 7, 8
6	57M8732	1	Elec. Connector Terminal	Cavity 2
6	57M8075	1	Elec. Connector Seal	-
6	57M8069	1	Elec. Connector Housing	CC2 / CPMB / Cab Main Harness
7	57M9790	1	Elec. Connector Housing	CC2 / CPMB to Fascia Light
7	57M9811	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
8	57M8035	1	Nut	-
9	57M9061	1	Elec.Connect Locking Device	-
10	57M9841	1	Elec. Connector Accessory	-
