Hillmaster Tilt Sensor Wiring Harness,

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

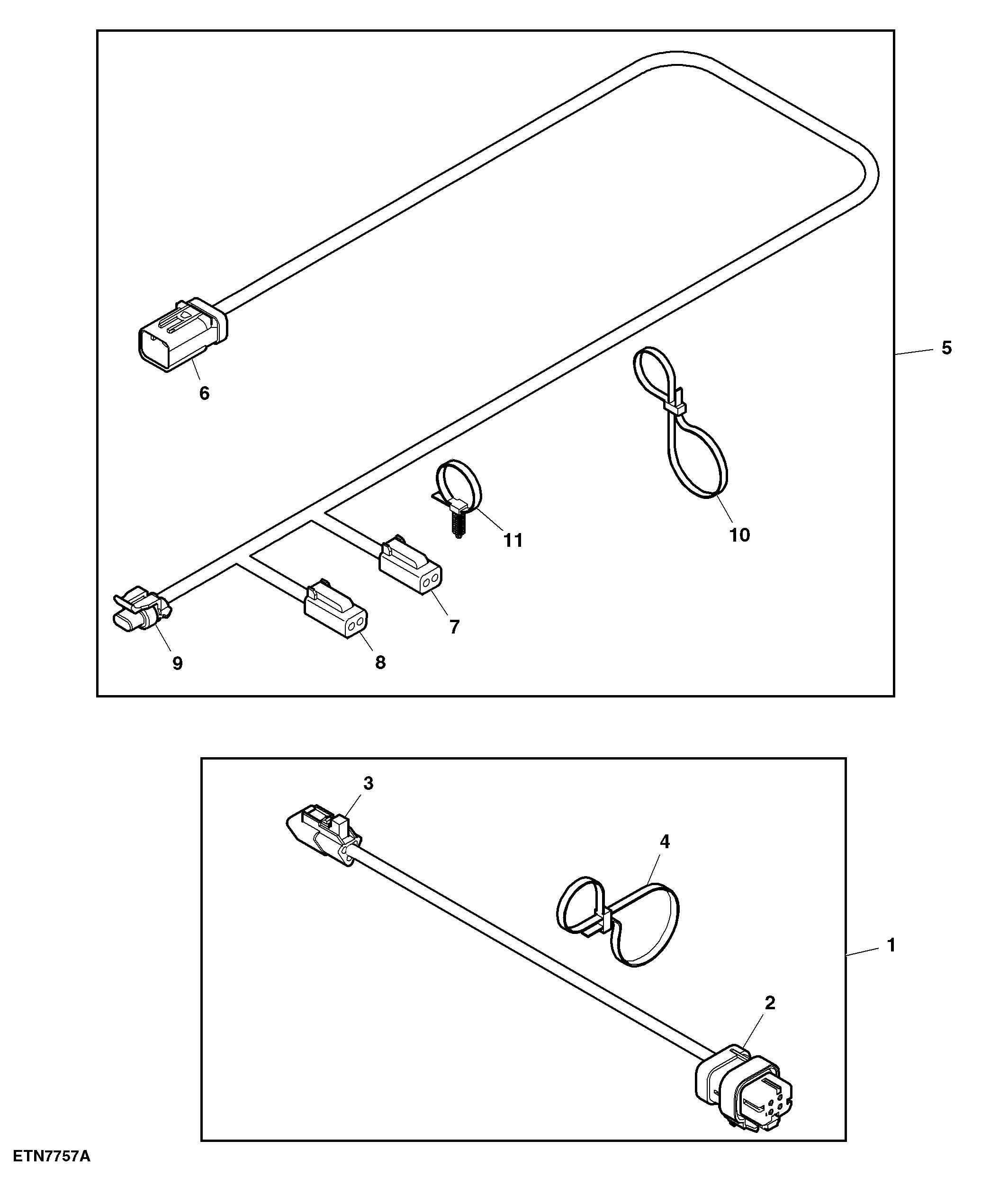

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE18217	1	Wiring Harness	-
2	57M9817	1	Elec. Connector Housing	LCU 1
2	57M9808	3	Elec. Connector Terminal	-
3	57M9652	1	Elec. Connector Terminal	Tilt Position Sensor
3	57M9808	3	Elec. Connector Terminal	-
3	57M8019	1	Elec. Connector Terminal	Wedge Lock
3	57M10622	1	Elec. Connector Accessory	180 Degree Backshell W/ Strain Relief
4	57M10421	5	Elec. Connector Accessory	Duble Head Tiewrap
5	AXE18132	1	Wiring Harness	-
6	57M9796	1	Elec. Connector Housing	Connection To LC2 Main
6	57M10603	6	Elec. Connector Terminal	-
6	57M9842	1	Elec. Connector Accessory	Backshell
6	57M9939	1	Elec. Connector Accessory	Clip
7	57M10517	1	Elec. Connector Housing	Lower SOL
7	57M10486	1	Elec. Connector Accessory	-
7	57M8022	1	Elec.Connect Locking Device	-
7	57M8165	2	Elec. Connector Terminal	-
8	57M10517	1	Elec. Connector Housing	Tilt Right SOL
8	57M8165	2	Elec. Connector Terminal	-
8	57M8022	1	Elec.Connect Locking Device	-
9	57M7254	1	Elec. Connector Housing	Tilt Left SOL
9	57M9541	2	Elec. Connector Terminal	-
9	57M9712	1	Elec. Connector Accessory	TPA
9	57M9215	2	Elec. Connector Seal	-
10	57M10421	9	Elec. Connector Accessory	-
11	57M10233	3	Tie Band	-

Hillmaster Tilt Sensor Wiring Harness,

Нет текстового описания
