Engine Wiring Harness, Interim Tier 4 (3 of 3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE39668	1	Wiring Harness	SUB FOR AXE37616
2	57M10528	1	Elec. Connector Accessory	-
3	57M9792	1	Elec. Connector Housing	LC2 Main Harness / Engine Platform Harness (CAN)
3	57M9809	2	Elec. Connector Terminal	-
3	57M9843	1	Elec. Connector Accessory	-
3	57M9808	6	Elec. Connector Terminal	-
4	57M8867	1	Elec. Connector Terminal	Engine Platform Chassis Ground (0010H)
5	57M8900	1	Elec. Connector Terminal	Engine Electronics Ground
6	57M8867	1	Elec. Connector Terminal	Engine Electronics Ground
7	57M10233	1	Tie Band	-
8	57M9727	1	Elec. Connector Housing	Main Gearcase Pressure Switch
8	57M9837	3	Elec. Connector Accessory	-
8	57M9806	2	Elec. Connector Terminal	-
8	57M9808	10	Elec. Connector Terminal	-
9	57M8924	1	Elec. Connector Housing	Separator Engage Solenoid
9	57M8602	2	Elec. Connector Terminal	-
9	57M8321	2	Elec. Connector Terminal	-
9	57M8633	1	Elec. Connector Accessory	-
10	R78065	2	Elec. Connector Terminal	-
10	57M8022	1	Elec.Connect Locking Device	-
10	57M10517	1	Elec. Connector Housing	Auger Engage Solenoid
11	57M9773	1	Elec. Connector Housing	Main Gearcase Temperature Sensor
11	57M10155	1	Elec. Connector Accessory	-
12	57M10421	2	Elec. Connector Accessory	-
13	AH225363	1	Clip	-
14	57M7344	1	Elec. Connector Housing	Engine Service Light
14	57M7298	4	Elec. Connector Terminal	-
14	R78059	4	Elec. Connector Seal	-
14	57M7371	2	Electrical Connector Assy	-
15	57M9773	1	Elec. Connector Housing	Hydraulic Oil Temperature Sensor
16	57M9734	1	Elec. Connector Housing	Hydraulic Oil Level 1 Sensor
16	57M9738	2	Elec. Connector Housing	-
16	57M9838	4	Elec. Connector Accessory	-
17	57M9734	1	Elec. Connector Housing	Hydraulic Oil Level 2 Sensor
18	57M9780	1	Elec. Connector Housing	Hydraulic Reservoir Filter Sensor
18	57M9847	1	Elec. Connector Accessory	-
19	57M9780	1	Elec. Connector Housing	DPF Delta Particulate Filter Pressure Sensor
19	57M9838	1	Elec. Connector Accessory	-
19	57M10321	3	Elec. Connector Terminal	-
20	57M9817	1	Elec. Connector Housing	Particulate Filter Temperature Sensor
20	57M9840	1	Elec. Connector Accessory	-
21	57M7344	1	Elec. Connector Housing	Engine Service Light
22	57M9652	1	Elec. Connector Terminal	Fuel Level Sensor
22	57M8165	3	Elec. Connector Terminal	-
22	57M8019	1	Elec. Connector Terminal	-
22	57M10622	1	Elec. Connector Accessory	-
23	57M9817	1	Elec. Connector Housing	Engine Platform Harness / Rear Beacon and Back-up Alarm Harness
23	57M10631	2	Elec. Connector Terminal	-
23	57M9809	2	Elec. Connector Terminal	-
23	57M9839	1	Elec. Connector Accessory	-
24	57M8035	2	Nut	-
25	57M9061	2	Elec.Connect Locking Device	-
26	M84309	5	Nut	-
27	H172261	1	Grommet	-
28	AH130222	11	Clamp	-
29	24M7146	1	Washer	4.300 X 12 X 1 mm
30	19M7867	7	Screw	M8 X 25
31	19M7866	19	Screw	M8 X 20
32	19M7798	1	Screw	M8 X 40
33	24M7207	1	Washer	8.400 X 24 X 2 mm
34	19M7752	1	Cap Screw	M4 X 20
35	14M7298	19	Flange Nut	M8
36	H162860	1	Nut	-
37	T26955	1	Clamp	-
38	14M7264	1	Lock Nut	M4
39	H224072	3	Clamp	-
40	H224073	3	Tie Band	-
41	H123918	3	Spacer	-
42	AH96317	5	Clip	-
43	19M8318	3	Screw	M8 X 45
44	19M7865	1	Screw	M8 X 16
45	AH89557	1	Clip	-
46	H229171	1	Weatherstrip	-

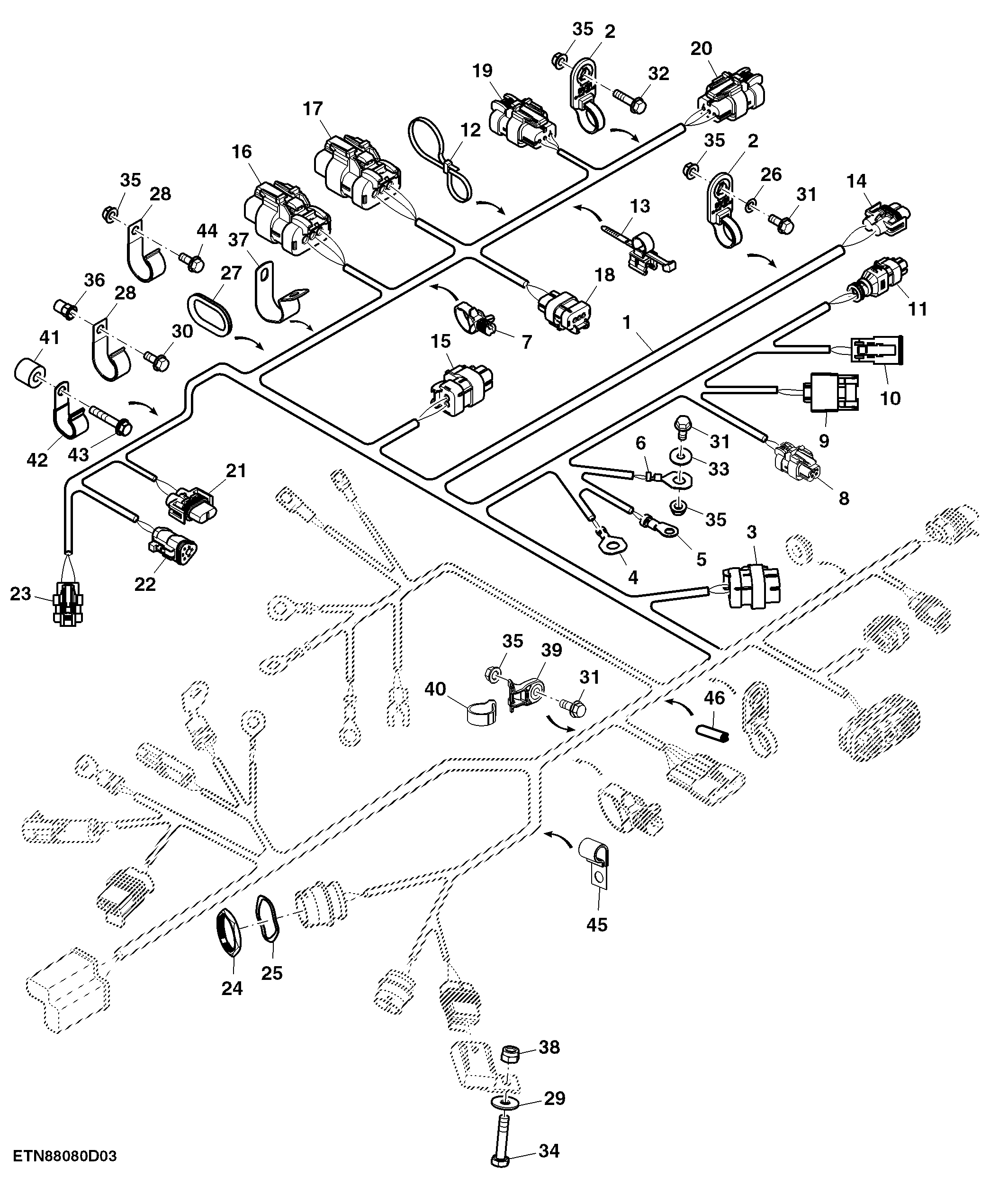

Engine Wiring Harness, Interim Tier 4 (3 of 3)
