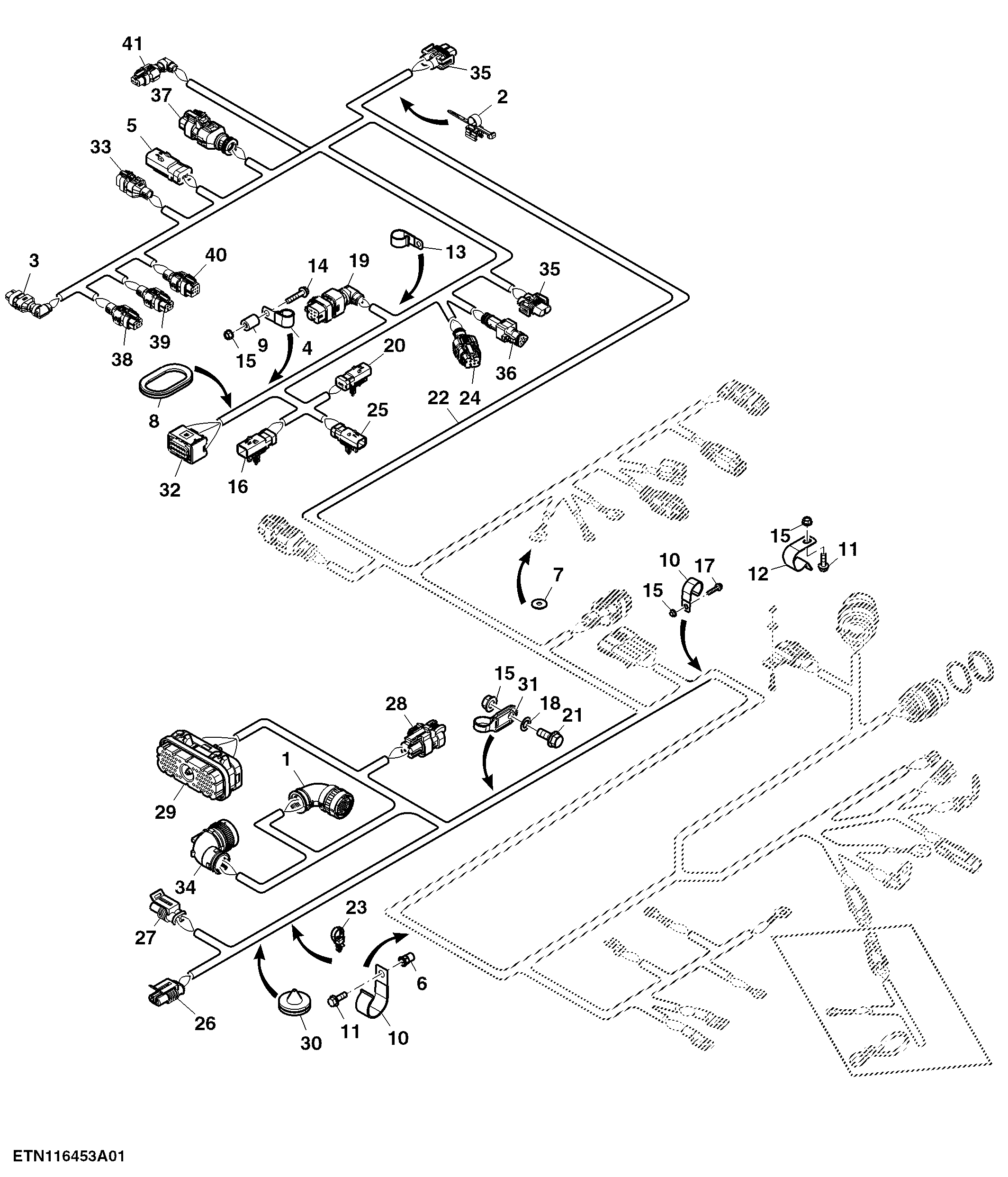

Engine Wiring Harness, Final Tier 4 (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
27	57M8211	2	Elec. Connector Terminal	-
27	57M10083	2	Elec. Connector Cable Seal	-
27	57M10497	1	Elec. Connector Housing	Coolant Level Upper Sensor
28	57M9819	1	Elec. Connector Housing	Engine Harness FT 4
28	57M9807	4	Elec. Connector Terminal	-
28	57M9840	1	Elec. Connector Accessory	-
29	RE538505	1	Elec. Connector Accessory	Engine Control Unit
29	57M9808	3	Elec. Connector Terminal	-
29	57M9806	11	Elec. Connector Terminal	-
29	57M9814	30	Elec. Connector Cavity Plug	-
29	R528122	1	Elec. Connector Accessory	-
30	H94433	1	Grommet	-
31	57M10528	15	Elec. Connector Accessory	-
32	57M10958	1	Elec. Connector Housing	SCR Supplt Module
32	57M7403	2	Elec. Connector Cavity Plug	-
32	57M11249	10	Elec. Connector Terminal	-
33	57M9751	1	Elec. Connector Housing	Nox Sensor DPF Outlet (FT4)
33	57M10321	2	Elec. Connector Terminal	-
33	57M9808	2	Elec. Connector Terminal	-
33	57M10336	2	Elec. Connector Cavity Plug	-
33	57M9841	1	Elec. Connector Accessory	-
34	57M11358	1	Elec. Connector Housing	Engine Harness
34	57M7546	3	Elec. Connector Terminal	-
34	R78069	11	Elec. Connector Cavity Plug	-
34	57M10429	1	Elec. Connector Accessory	-
35	57M7344	2	Elec. Connector Housing	Engine Service Light
35	57M7371	1	Electrical Connector Assy	-
35	57M7491	2	Elec. Connector Terminal	-
35	R78059	2	Elec. Connector Seal	-
36	57M9652	1	Elec. Connector Terminal	Fuel Level Sensor
36	57M8165	3	Elec. Connector Terminal	-
36	57M8019	1	Elec. Connector Terminal	-
36	57M10622	1	Elec. Connector Accessory	-
37	57M9780	5	Elec. Connector Housing	Engine Platform / SCR Dosing Extension Harness
37	57M10321	2	Elec. Connector Terminal	-
37	57M9837	1	Elec. Connector Accessory	-
38	57M9840	1	Elec. Connector Accessory	-
38	57M10321	4	Elec. Connector Terminal	-
38	57M9817	1	Elec. Connector Housing	Particulate Filter Temperature Sensor
39	57M9817	1	Elec. Connector Housing	SCR Temperature Module (FT4)
39	57M10321	4	Elec. Connector Terminal	-
39	57M9840	1	Elec. Connector Accessory	-
40	57M9751	1	Elec. Connector Housing	Nox Sensor Outlet(FT4)
40	57M10321	2	Elec. Connector Terminal	-
40	57M9808	2	Elec. Connector Terminal	-
40	57M10336	2	Elec. Connector Cavity Plug	-
40	57M9841	1	Elec. Connector Accessory	-
41	57M9780	5	Elec. Connector Housing	Hydraulic Reservoir Filter Sensor
41	57M9809	2	Elec. Connector Terminal	-
41	57M9838	1	Elec. Connector Accessory	-

Engine Wiring Harness, Final Tier 4 (2/3)

Нет текстового описания
