Открытый узел

Advanced Power Cast Wiring Harness

Advanced Power Cast Wiring Harness

Advanced Power Cast Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Advanced Power Cast Wiring Harness

Нет текстового описания

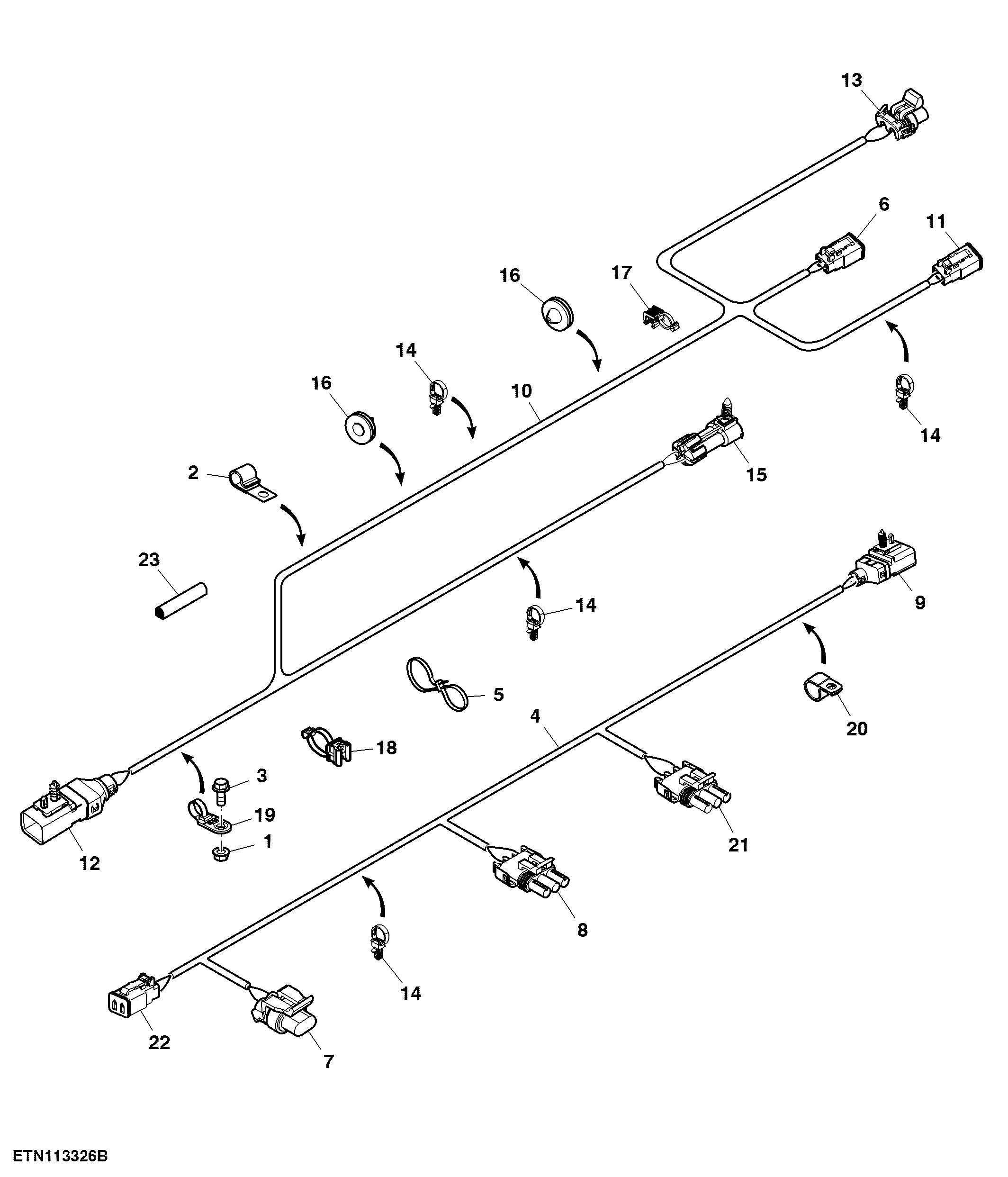

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	2	Flange Nut	M8
2	AH89557	1	Clip	-
3	19M7866	2	Screw	M8 X 20
4	AXE37625	1	Wiring Harness	-
5	57M10421	3	Elec. Connector Accessory	-
6	57M10517	1	Elec. Connector Housing	Chopper Position Sensor
6	57M8165	2	Elec. Connector Terminal	-
7	57M7254	1	Elec. Connector Housing	Left Spreader Speed Solenoid
7	57M9556	1	Elec. Connector Accessory	-
7	57M7494	2	Elec. Connector Terminal	-
7	57M7377	2	Elec. Connector Seal	-
8	57M9549	3	Elec. Connector Seal	-
8	57M10924	3	Elec. Connector Terminal	-
8	RE12364	1	Electrical Connector Assy	Left Straw Spreader Speed Sensor
9	57M9804	1	Elec. Connector Housing	Right Main / Residue Harnesses
9	57M9940	1	Elec. Connector Accessory	-
9	57M9813	8	Elec. Connector Terminal	-
9	57M10336	4	Elec. Connector Cavity Plug	-
10	AXE37974	1	Wiring Harness	-
11	57M10517	1	Elec. Connector Housing	Chopper Speed Sensor
11	57M8165	2	Elec. Connector Terminal	-
11	57M8022	1	Elec.Connect Locking Device	-
12	57M10336	5	Elec. Connector Cavity Plug	-
12	57M9812	3	Elec. Connector Terminal	-
12	57M9796	1	Elec. Connector Housing	Flex Res To Left Control Unit 2
13	57M9961	1	Elec. Connector Housing	Right Chopper Raise/Lower Actuator
13	57M7588	2	Elec. Connector Terminal	-
13	57M9563	2	Elec. Connector Cable Seal	-
13	57M9962	1	Elec.Connect Locking Device	-
14	57M10233	13	Tie Band	-
15	57M7369	1	Elec. Connector Housing	Flex Res To Left Control Unit 2
15	57M10422	1	Elec. Connector Housing	-
15	57M7286	2	Elec. Connector Terminal	-
15	57M9217	2	Elec. Connector Seal	-
15	57M9555	1	Clip	-
16	H94433	2	Grommet	-
17	AH225366	3	Clip	-
18	AH225363	1	Clip	-
19	57M10528	2	Elec. Connector Accessory	-
20	AH96317	1	Clip	-
21	RE12364	1	Electrical Connector Assy	Right Straw Spreader Speed Sensor
21	57M10924	3	Elec. Connector Terminal	-
21	57M9549	3	Elec. Connector Seal	-
22	57M10517	1	Elec. Connector Housing	Right Spreader Speed Solenoid
22	57M8165	2	Elec. Connector Terminal	-
22	57M8022	1	Elec.Connect Locking Device	-
23	H237819	2	Isolator	CTL 90 mm, MF AH122244
