Wiring Harness, Left Hand Grain Tank, W/ Full Sensor and Switch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE18324	1	Wiring Harness	LH
2	57M8128	1	Electrical Connector Assy	LH Row Finder Light
2	57M7493	2	Elec. Connector Seal	-
2	57M7491	2	Elec. Connector Terminal	-
2	57M8129	1	Elec. Connector Terminal	Secondary Lock
2	57M10522	2	Elec. Connector Cable Seal	-
3	57M9772	1	Elec. Connector Housing	-
3	57M9809	2	Elec. Connector Terminal	-
3	57M9776	1	Elec. Connector Housing	-
4	57M9750	1	Elec. Connector Housing	Unloading Auger Harness
4	57M10631	2	Elec. Connector Terminal	-
4	57M9841	1	Elec. Connector Accessory	0 Degree Back Shell
5	57M7581	2	Elec. Connector Terminal	-
5	57M9562	2	Elec. Connector Cable Seal	-
5	57M9215	3	Elec. Connector Seal	-
5	57M7697	1	Electrical Connector Assy	Connector Cap
5	57M7698	1	Elec. Connector Terminal	Secondary Lock
5	57M7494	3	Elec. Connector Terminal	-
5	57M7696	1	Elec. Connector Housing	Folding Auger
6	57M9786	1	Elec. Connector Housing	Auger Swing Pos Sensor
6	57M9808	3	Elec. Connector Terminal	-
6	57M10632	1	Elec. Connector Accessory	90 Degree Back Shell
7	57M7344	1	Elec. Connector Housing	Grain Tank Light
7	57M7491	2	Elec. Connector Terminal	-
7	57M7371	1	Electrical Connector Assy	TPA
8	57M9511	1	Elec. Connector Housing	Inline to LCU I
8	57M8704	1	Elec. Connector Accessory	90 Degree Back Shell
8	57M9164	1	Elec. Connector Accessory	-
8	N282069	1	Elec. Connector Terminal	-
8	57M8164	7	Elec. Connector Terminal	-
8	57M9525	3	Elec. Connector Terminal	-
8	57M8260	2	Elec. Connector Terminal	-
9	AH225366	3	Clip	-
10	AH80916	2	Clip	-
11	H94433	1	Grommet	-
12	57M10233	5	Tie Band	-
13	AXE31686	1	Wiring Harness	SUB FOR AXE15620
14	RE12363	1	Electrical Connector Assy	Grain Tank Full Switch
14	57M7303	2	Electrical Connector Assy	-
14	57M7378	2	Electrical Connector Assy	-
15	57M9776	1	Elec. Connector Housing	Left Grain Tank Harness
15	57M9813	2	Elec. Connector Terminal	-
16	H94433	1	Grommet	-
17	R34557	2	Clamp	-
18	57M10233	1	Tie Band	-
19	57M8035	1	Nut	-
20	19M7865	1	Screw	M8 X 16
21	57M9061	1	Elec.Connect Locking Device	-
22	AH89557	1	Clip	-
23	14M7298	1	Flange Nut	M8
24	R44302	5	Tie Band	-

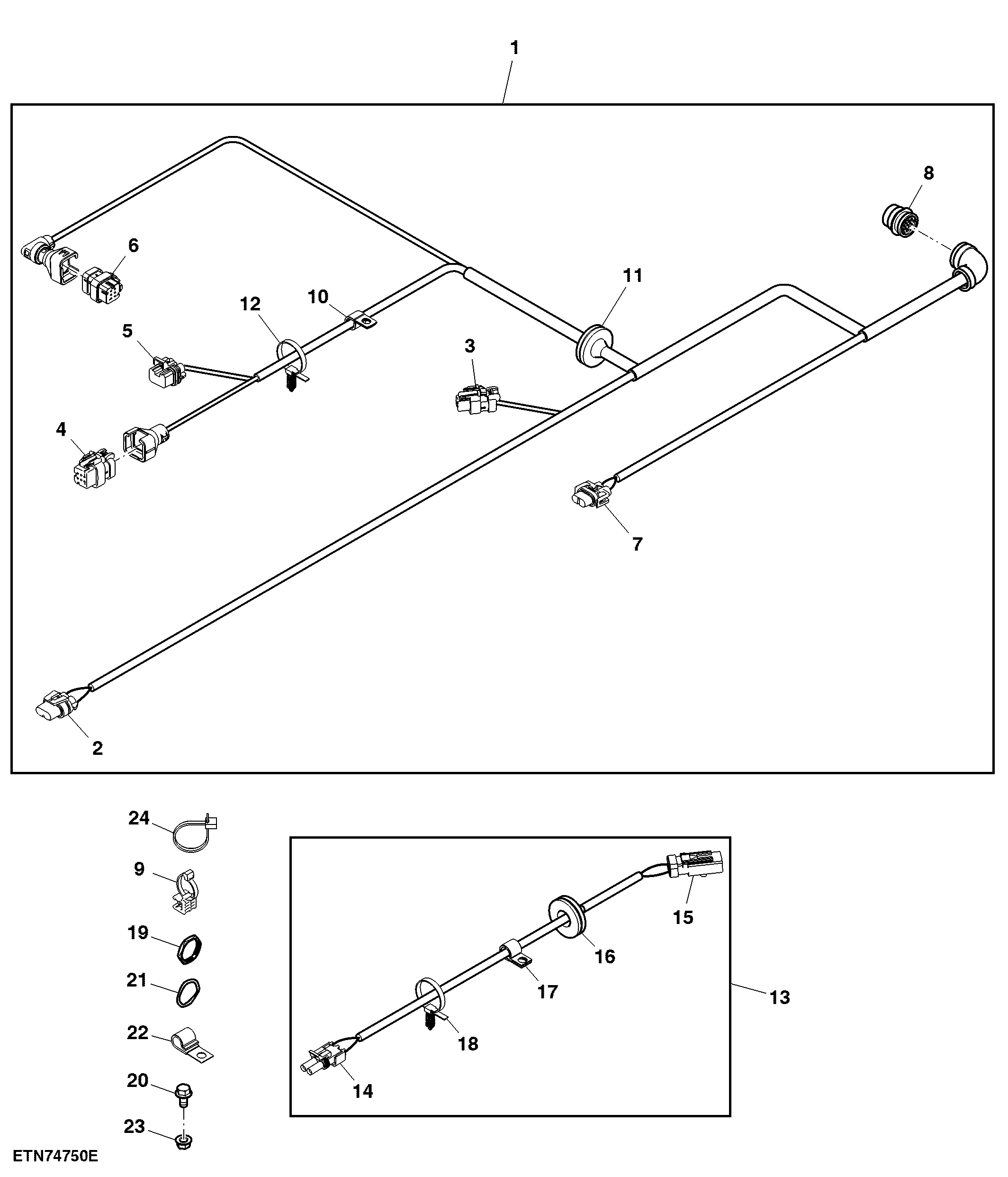

Wiring Harness, Left Hand Grain Tank, W/ Full Sensor and Switch
