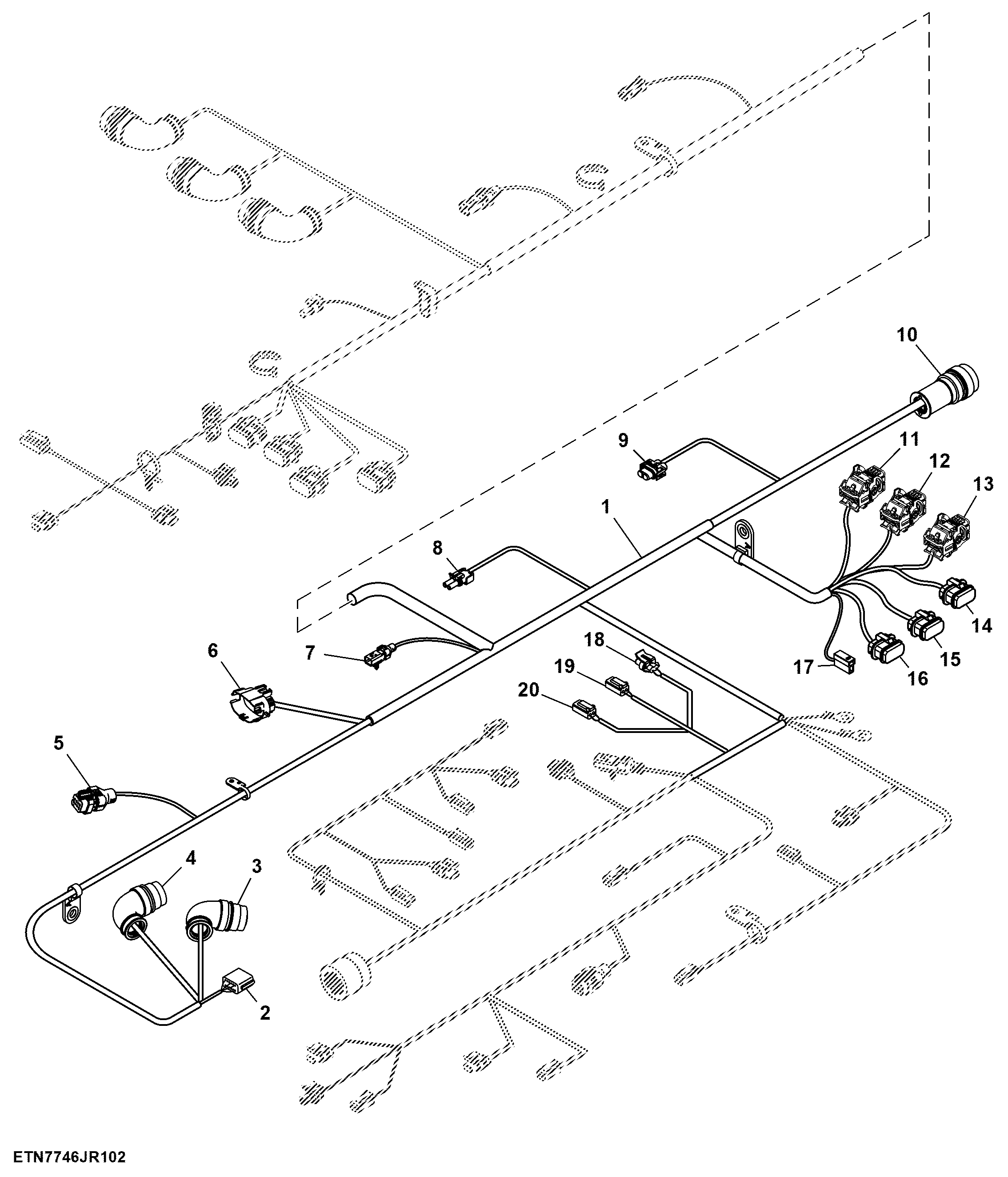

Wiring Harness, Left Control unit 1, STS (2 of 4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE34175	1	Wiring Harness	SUB FOR AXE22363; ALSO ORDER AXE24515
2	-	1	Part 2	Cab Wall Plate
2	57M8009	1	Elec.Connect Locking Device	Wedge Lock
2	57M8165	5	Elec. Connector Terminal	-
3	57M9656	1	Elec. Connector Terminal	Cab Wall Plate
3	57M8593	5	Elec. Connector Terminal	-
3	57M8569	1	Elec. Connector Terminal	-
3	57M10429	1	Elec. Connector Accessory	Back Shell
4	-	1	Part 9	Cab Wall Plate
4	57M8569	10	Elec. Connector Terminal	-
4	57M8704	1	Elec. Connector Accessory	Back Shell
5	57M10321	2	Elec. Connector Terminal	-
5	57M9843	1	Elec. Connector Accessory	Back Shell
5	57M9809	1	Elec. Connector Terminal	-
5	57M9808	4	Elec. Connector Terminal	-
5	57M9792	1	Elec. Connector Housing	Autotrac
6	57M8322	1	Elec. Connector Terminal	-
6	57M8323	3	Elec. Connector Terminal	-
6	57M8321	12	Elec. Connector Terminal	-
6	57M8324	3	Elec. Connector Terminal	-
6	57M9223	20	Elec. Connector Seal	-
6	57M9539	2	Elec. Connector Terminal	-
6	57M8306	1	Elec. Connector Terminal	-
6	57M8301	9	Elec. Connector Terminal	-
6	57M8309	2	Elec. Connector Terminal	-
6	57M10794	13	Elec. Connector Terminal	-
6	57M10405	1	Elec. Connector Housing	PTP/PBST
6	57M8307	3	Elec. Connector Terminal	-
7	57M9821	1	Elec. Connector Housing	Hill Master Tilt Sensor
7	57M9813	3	Elec. Connector Terminal	-
7	57M9839	1	Elec. Connector Accessory	Back Shell
7	57M9939	1	Elec. Connector Accessory	Attachment Clip
8	R78053	1	Electrical Connector Assy	Dust Cap
8	57M9219	2	Elec. Connector Seal	-
8	57M10924	2	Elec. Connector Terminal	-
8	RE12363	1	Electrical Connector Assy	Header Clutch
9	57M7344	1	Elec. Connector Housing	Front Left Gullwing Light
9	57M7491	2	Elec. Connector Terminal	-
9	57M9216	2	Elec. Connector Seal	-
9	57M7371	1	Electrical Connector Assy	Secondary Lock
10	57M9513	1	Elec. Connector Housing	Grain Tank Harness
10	57M7546	3	Elec. Connector Terminal	-
10	57M9808	8	Elec. Connector Terminal	-
10	57M8569	3	Elec. Connector Terminal	-
10	57M8165	1	Elec. Connector Terminal	-
10	57M10485	1	Elec. Connector Accessory	-
11	57M10604	1	Elec. Connector Housing	Wire Cap
11	57M10617	2	Elec. Connector Housing	-
11	57M10331	5	Elec. Connector Terminal	-
11	57M10488	21	Elec. Connector Terminal	-
11	57M10514	1	Elec. Connector Terminal	-
11	57M10612	1	Elec. Connector Housing	LCUI J1 (BN)
12	57M10420	1	Elec. Connector Housing	LCUI J2 (GY)
12	57M10488	19	Elec. Connector Terminal	-
12	57M10617	2	Elec. Connector Housing	-
12	57M10331	6	Elec. Connector Terminal	-
12	57M10613	1	Elec. Connector Housing	Wire Cap
13	57M10604	1	Elec. Connector Housing	Wire Cap
13	57M10617	2	Elec. Connector Housing	-
13	57M10331	6	Elec. Connector Terminal	-
13	57M10488	21	Elec. Connector Terminal	-
13	57M10606	1	Elec. Connector Housing	LCUI J3 (BL)
14	57M8722	1	Elec. Connector Housing	LPC1 J1 (GN)
14	57M7491	3	Elec. Connector Terminal	-
14	57M7299	3	Elec. Connector Terminal	-
14	57M8294	2	Elec. Connector Terminal	-
14	57M9083	1	Elec. Connector Accessory	TPA
14	57M9216	3	Elec. Connector Seal	-
14	57M9217	3	Elec. Connector Seal	-
14	57M7368	2	Elec. Connector Cable Seal	-
15	57M9217	6	Elec. Connector Seal	-
15	57M9083	1	Elec. Connector Accessory	TPA
15	57M8983	1	Elec. Connector Housing	LPC1 J2 (BK)
15	57M7299	6	Elec. Connector Terminal	-
16	57M8723	1	Elec. Connector Housing	LPCI J3 (BL)
16	57M7491	5	Elec. Connector Terminal	-
16	57M7297	1	Elec. Connector Terminal	-
16	57M7299	1	Elec. Connector Terminal	-
16	57M9083	1	Elec. Connector Accessory	TPA
16	57M9216	3	Elec. Connector Seal	-
16	57M9217	1	Elec. Connector Seal	-
16	57M9549	2	Elec. Connector Seal	-
16	57M9219	1	Elec. Connector Seal	-
17	57M9200	2	Elec. Connector Terminal	-
17	57M7144	1	Elec. Connector Housing	Washer Pump
18	57M7254	1	Elec. Connector Housing	Combination Reel Speed Valve
18	57M10770	1	Elec. Connector Terminal	-
18	57M7494	1	Elec. Connector Terminal	-
18	57M9556	1	Elec. Connector Accessory	CDT TPA
18	57M9215	2	Elec. Connector Seal	-
19	57M8021	1	Electrical Connector Assy	FH Reverse Valve
19	57M8165	2	Elec. Connector Terminal	-
19	57M8022	1	Elec.Connect Locking Device	Wedge Lock
20	57M10517	1	Elec. Connector Housing	Reel Reverse Valve
20	57M8165	2	Elec. Connector Terminal	-
20	57M8022	1	Elec.Connect Locking Device	Wedge Lock

Wiring Harness, Left Control unit 1, STS (2 of 4)
