Engine Wiring Harness STS, Tier 2 (3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE34062	1	Wiring Harness	-
2	57M7344	1	Elec. Connector Housing	Engine Service Light
2	57M9216	2	Elec. Connector Seal	-
2	57M7491	2	Elec. Connector Terminal	-
2	57M7371	1	Electrical Connector Assy	TPA
3	57M9773	1	Elec. Connector Housing	Hydro Oil Temp
3	57M7546	2	Elec. Connector Terminal	-
3	57M9837	1	Elec. Connector Accessory	Back Shell
4	57M9780	1	Elec. Connector Housing	Hydro Oil Level Switch
4	57M9808	3	Elec. Connector Terminal	-
4	57M9738	1	Elec. Connector Housing	Cap
4	57M10156	1	Elec. Connector Accessory	Back Shell
5	57M9780	1	Elec. Connector Housing	HYD Oil Level Switch 2
5	57M10156	1	Elec. Connector Accessory	Back Shell
5	57M9738	1	Elec. Connector Housing	Cap
5	57M9808	3	Elec. Connector Terminal	-
6	57M7280	1	Elec. Connector Housing	Engine Control Harness
6	57M7491	3	Elec. Connector Terminal	-
6	57M7274	1	Elec. Connector Accessory	TPA
6	57M9216	3	Elec. Connector Seal	-
7	57M10615	1	Elec. Connector Housing	ECU
7	57M8529	1	Electrical Connector Cap	Cover
7	57M10617	7	Elec. Connector Housing	-
7	57M10514	7	Elec. Connector Terminal	-
8	24M7207	2	Washer	8.400 X 24 X 2 mm
9	57M10517	1	Elec. Connector Housing	Air Compressor Diverter Solenoid 2
9	57M8165	2	Elec. Connector Terminal	-
9	57M8022	1	Elec.Connect Locking Device	Wedge Lock
9	57M10530	1	Elec. Connector Housing	Back Shell
9	57M7533	1	Elec. Connector Housing	Cap
10	57M10517	1	Elec. Connector Housing	Air Compressor Diverter Solenoid 1
10	57M8165	2	Elec. Connector Terminal	-
10	57M8022	1	Elec.Connect Locking Device	Wedge Lock
10	57M10530	1	Elec. Connector Housing	Back Shell
10	57M7533	1	Elec. Connector Housing	Cap
11	57M7533	1	Elec. Connector Housing	Cap
11	57M10530	1	Elec. Connector Housing	Back Shell
11	57M8165	2	Elec. Connector Terminal	-
11	57M8022	1	Elec.Connect Locking Device	Wedge Lock
11	57M10517	1	Elec. Connector Housing	Compressor Air Solenoid
12	57M9773	1	Elec. Connector Housing	Filter Bypass Switch
12	57M9808	2	Elec. Connector Terminal	-
12	57M9731	1	Elec. Connector Housing	Cap
12	57M9837	1	Elec. Connector Accessory	Back Shell
13	57M9652	1	Elec. Connector Terminal	Fuel Level Sensor
13	57M8165	3	Elec. Connector Terminal	-
13	57M8019	1	Elec. Connector Terminal	Wedge Lock
14	57M10631	2	Elec. Connector Terminal	-
14	57M9839	1	Elec. Connector Accessory	Back Shell
14	57M9809	2	Elec. Connector Terminal	-
14	57M9786	1	Elec. Connector Housing	Rear Beacon
15	57M7344	1	Elec. Connector Housing	Engine Service Light
15	57M7491	2	Elec. Connector Terminal	-
15	57M7371	1	Electrical Connector Assy	TPA
15	57M9216	2	Elec. Connector Seal	-
16	57M10362	1	Clamp	-
17	AH225363	1	Clip	-
18	57M10528	30	Elec. Connector Accessory	-
19	57M10233	28	Tie Band	-
20	57M10421	6	Elec. Connector Accessory	-
21	14M7298	27	Flange Nut	M8
22	19M7866	17	Screw	M8 X 20
23	H172261	1	Grommet	-
24	19M7867	7	Screw	M8 X 25
25	19M7897	2	Screw	M8 X 35
26	57M8428	3	Electrical Connector Assy	-
27	57M9062	3	Elec.Connect Locking Device	-
28	57M10362	1	Clamp	-
29	AH225363	1	Clip	-
30	H117952	1	Clamp	-
31	19M7868	1	Screw	M8 X 30
32	N282073	1	Cap	-
33	R44302	4	Tie Band	-
34	19M7798	3	Screw	M8 X 40
35	AH130222	2	Clamp	-
36	H224073	3	Tie Band	-
37	-	1	Part 77	CTL 150 mm, MF AH122244

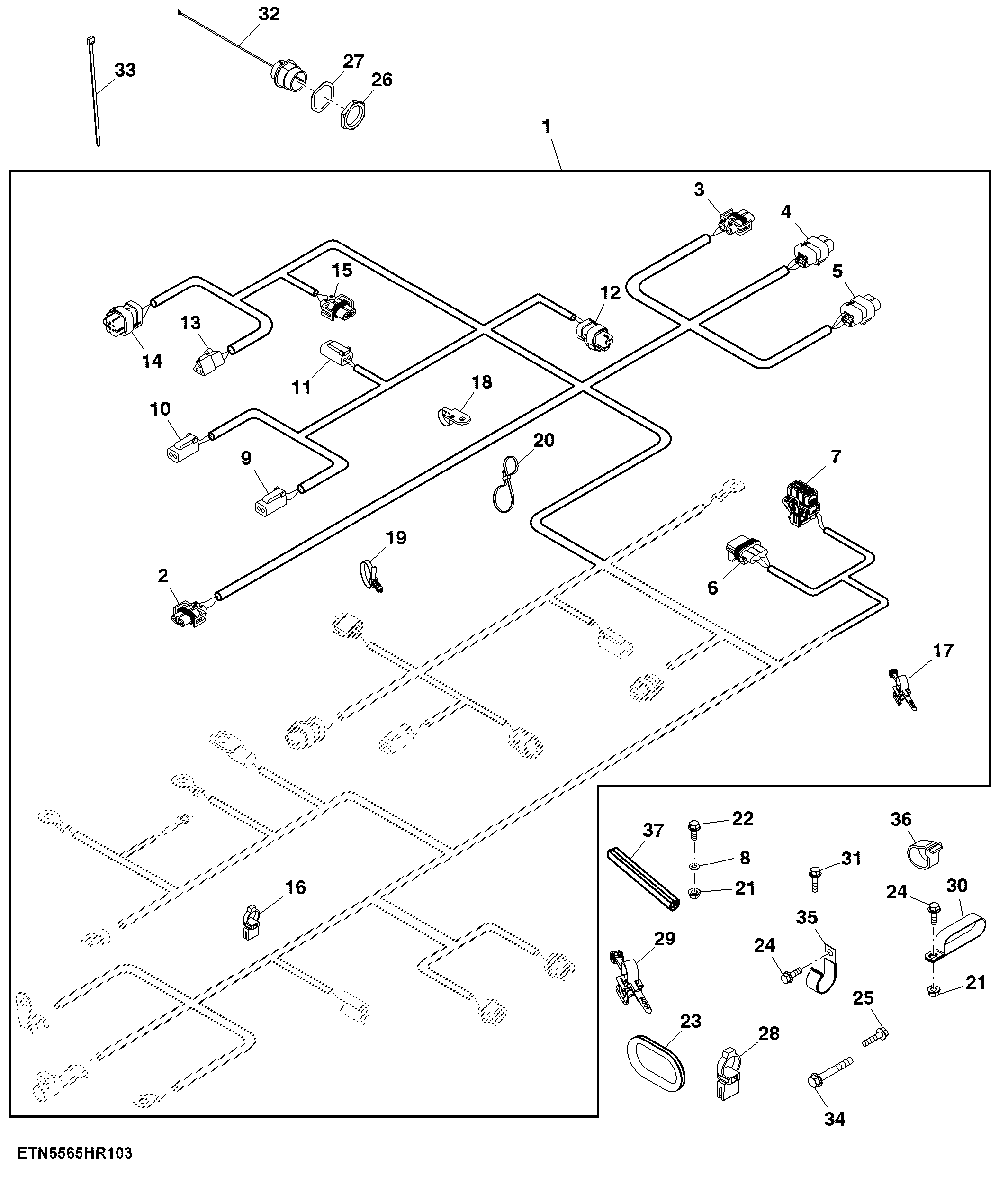

Engine Wiring Harness STS, Tier 2 (3/3)

Нет текстового описания
