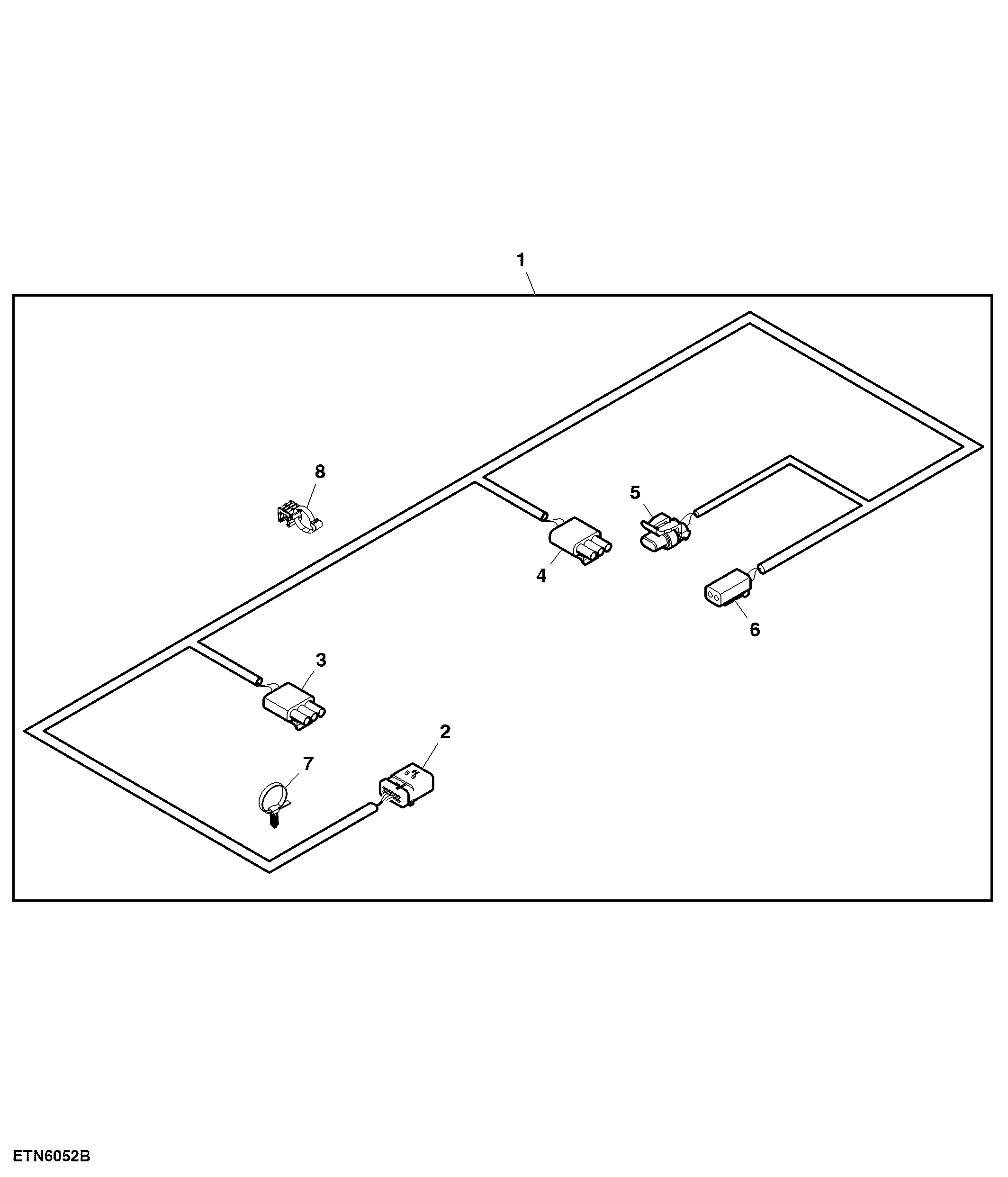

Wiring Harness, Straw Spreader, W/ Wind Compensation

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE16183	1	Wiring Harness	-
2	57M9804	1	Elec. Connector Housing	Right Hand Main
2	57M9813	4	Elec. Connector Terminal	-
2	57M9812	4	Elec. Connector Terminal	-
2	57M9844	1	Elec. Connector Accessory	-
2	57M9939	1	Elec. Connector Accessory	-
3	RE12364	1	Electrical Connector Assy	Right Speed Sensor
3	R78057	3	Elec. Connector Terminal	-
3	57M9219	3	Elec. Connector Seal	-
4	57M9219	3	Elec. Connector Seal	-
4	R78057	3	Elec. Connector Terminal	-
4	RE12364	1	Electrical Connector Assy	Left Speed Sensor
5	57M7254	1	Elec. Connector Housing	LT Spreader Speed SOL
5	57M7494	2	Elec. Connector Terminal	-
5	57M7289	1	Elec.Connect Locking Device	-
5	57M9214	2	Elec. Connector Seal	-
6	57M10517	1	Elec. Connector Housing	RT Spreader Speed SOL
6	57M8165	2	Elec. Connector Terminal	-
6	57M8022	1	Elec.Connect Locking Device	-
6	57M10486	1	Elec. Connector Accessory	-
7	57M10233	8	Tie Band	Dart Tie Wrap
8	-	2	Part 22	HELLERMANN TYON Clip

Wiring Harness, Straw Spreader, W/ Wind Compensation
