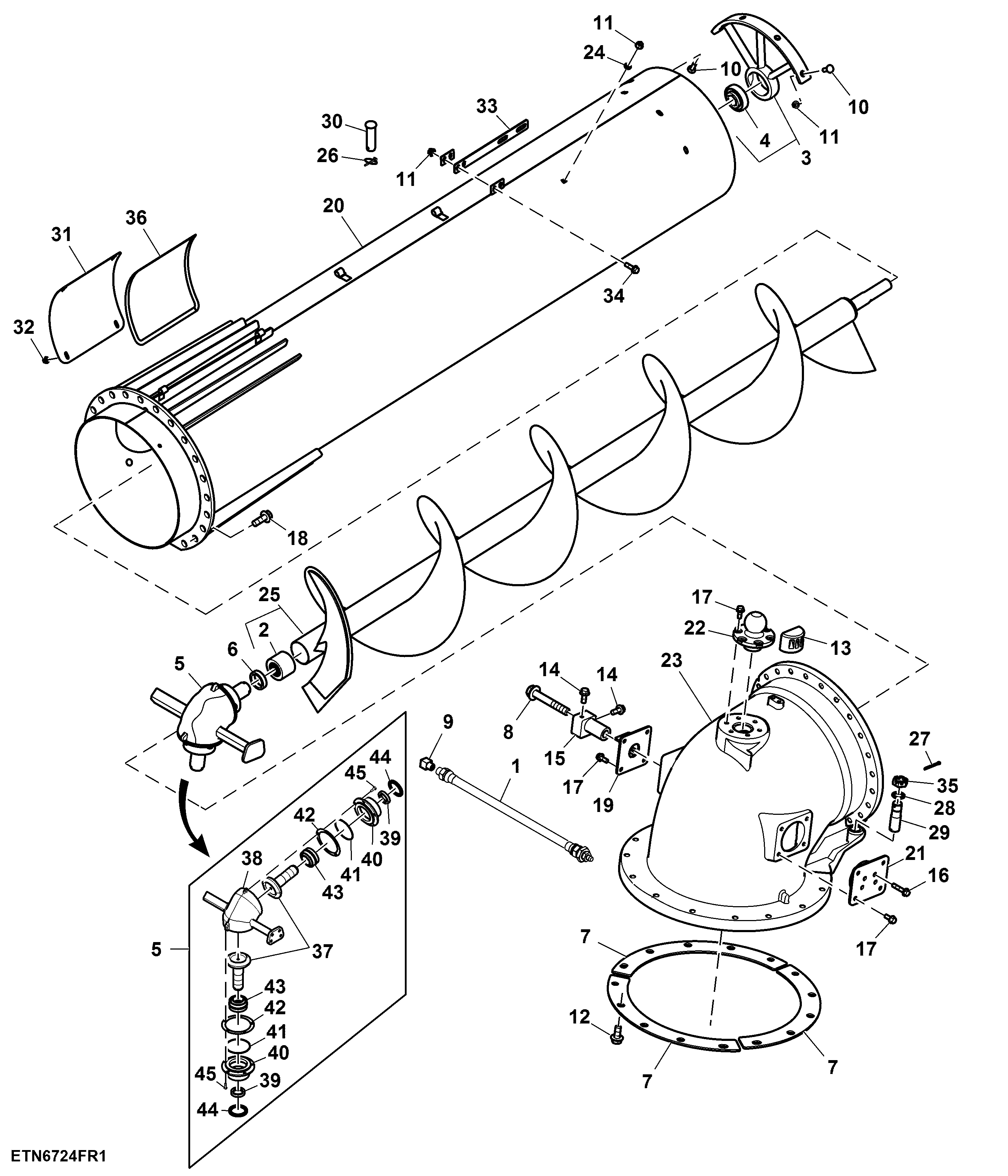

Unloading Auger and Turret Housing, High Unloading Rate, 7.9 m (25.9 ft)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH136553	1	Hose	LGTH = 1600 mm
2	H204109	2	Gudgeon	-
3	AH209150	1	Bearing With Housing	-
4	JD9373	1	Ball Bearing	-
5	DE19353	1	Gear Case	-
6	H204253	1	Spacer	-
7	H217909	3	Retainer	-
8	H234632	1	Screw	-
9	JD7839	1	Lubrication Fitting	-
10	03M7192	6	Bolt	M10 X 30
11	14M7296	8	Flange Nut	M10
12	19M7843	13	Screw	M16 X 35
13	H232754	2	Bushing	-
14	19M7789	2	Screw	M12 X 30
15	H232231	1	Adapter	-
16	19M8292	4	Screw	M10 X 50
17	19M7785	14	Screw	M10 X 25
18	19M7844	21	Screw	M16 X 45
19	AH231671	1	Plate	-
20	AH233759	1	Housing	-
21	H232969	1	Hitch Plate	-
22	H233373	1	Ball	-
23	HXE26682	1	Housing	-
24	H141123	1	Push Nut	-
25	AH201797	1	Auger	-
26	M72598	1	Quick Lock Pin	-
27	11M7032	1	Cotter Pin	5 X 50 mm
28	24M7292	1	Washer	26 X 37 X 2 mm
29	HXE18847	1	Stud	FRONT
30	HXE22418	1	Pin Fastener	REAR
31	HXE83086	1	Door	SUB FOR H203723
32	14M7298	4	Flange Nut	M8
33	H232479	1	Strap	-
34	19M7835	2	Screw	M10 X 35
35	A12188	1	Lock Nut	-
36	-	1	Part 36	CTL 915 mm, MF H81330
37	DE31554	1	Bevel Gear Drive	-
38	CE18771	1	Housing	-
39	CE18772	2	Lock Washer	41.220 X 57.150 X 9.520 mm (1.623" X 2-1/4" X 3/8")
40	CE18773	2	Bearing Housing W/O Bearing	-
41	CE18774	2	O-Ring	98 X 2 mm (3.858" X 0.079")
42	CE18775	2	Shim	THK = 0.1 mm
43	DE19357	2	Tapered Roller Bearing	-
44	DE19358	2	Seal	-
45	19M7881	10	Screw	M8 X 20

Unloading Auger and Turret Housing, High Unloading Rate, 7.9 m (25.9 ft)
