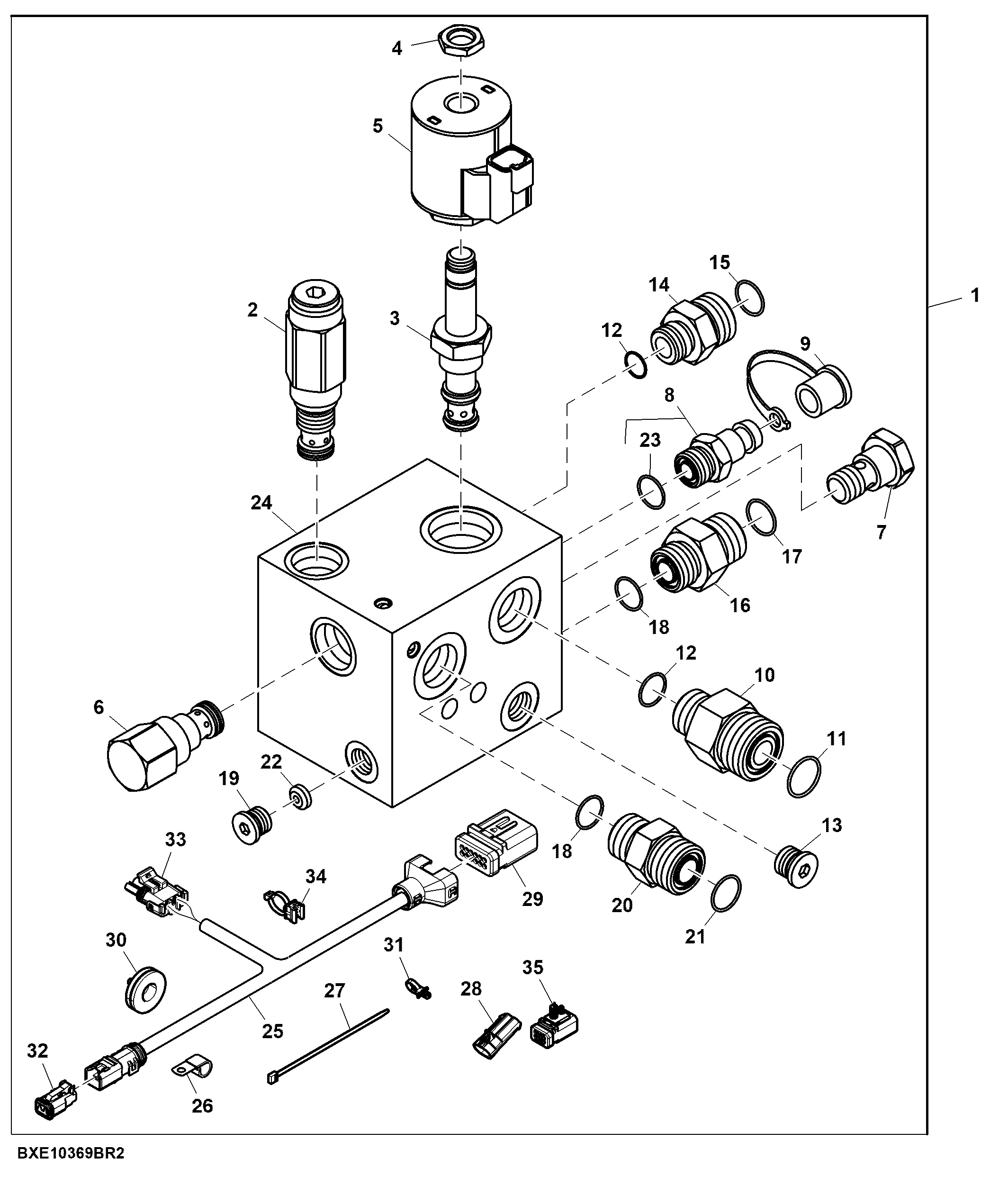

Straw Spreader Control Valve, Single Flow Attachment, 2 of 2

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE10369	1	Hydraulic Component	-
2	AH228047	1	Pressure Relief Valve	Spreader Pressure V21
3	AH228035	1	Solenoid Valve	Single Spreader Speed Y100
4	N223292	1	Nut	-
5	AH228045	1	Solenoid Valve Coil	-
6	AH228039	1	Check Valve	Spreader Compensation V117
7	AH228048	1	Check Valve	Spreader D22
8	RE190805	1	Diagnostic Coupling	Spreader Diagnostic Receptacle X10
9	R77175	1	Cover	-
10	38H5005	1	Adapter Fitting	-
11	T77858	1	O-Ring	-
12	51M7047	2	O-Ring	23.600 X 2.900 mm
13	N305925	1	Plug	-
14	38H5014	1	Adapter Fitting	-
15	T76938	1	O-Ring	-
16	38H5004	1	Adapter Fitting	-
17	T77932	1	O-Ring	-
18	51M7045	2	O-Ring	19.300 X 2.200 mm
19	N304196	1	Plug	Spreader Relief Orifice O51
20	38H5076	1	Adapter Fitting	-
21	T77857	1	O-Ring	-
22	H229534	1	Orifice	-
23	51M7041	1	O-Ring	11.300 X 2.200 mm
24	AXE15656	1	Valve	-
25	AXE37626	1	Wiring Harness	-
26	AH96317	1	Clip	-
27	R44302	2	Tie Band	-
28	AXE45421	1	Electrical Connector Cap	-
29	57M10517	1	Elec. Connector Housing	Y100 Single Spreader Speed Sensor
29	57M8165	2	Elec. Connector Terminal	Cavity 1,2
29	57M10486	1	Elec. Connector Accessory	-
29	57M8022	1	Elec.Connect Locking Device	-
30	H94433	1	Grommet	-
31	57M10233	3	Tie Band	-
32	57M9804	1	Elec. Connector Housing	Right Main Harness/ Residue Harnesses
32	57M9813	5	Elec. Connector Terminal	Cavity 1, 2, 5, 7, 8
32	57M10336	7	Elec. Connector Cavity Plug	Cavity 3, 4, 6, 9, 10, 11, 12
32	57M9844	1	Elec. Connector Accessory	-
32	57M9940	1	Elec. Connector Accessory	-
33	RE12364	1	Electrical Connector Assy	B65 Single Straw Spreader Speed Sensor
33	57M10924	3	Elec. Connector Terminal	Cavity A, B, C
33	57M9549	3	Elec. Connector Seal	Cavity A, B, C
34	AH225363	3	Clip	-
35	AXE25732	1	Electrical Connector Cap	-

Straw Spreader Control Valve, Single Flow Attachment, 2 of 2
