Power Cast Wiring Harness

Power Cast Wiring Harness

Power Cast Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Power Cast Wiring Harness

Нет текстового описания

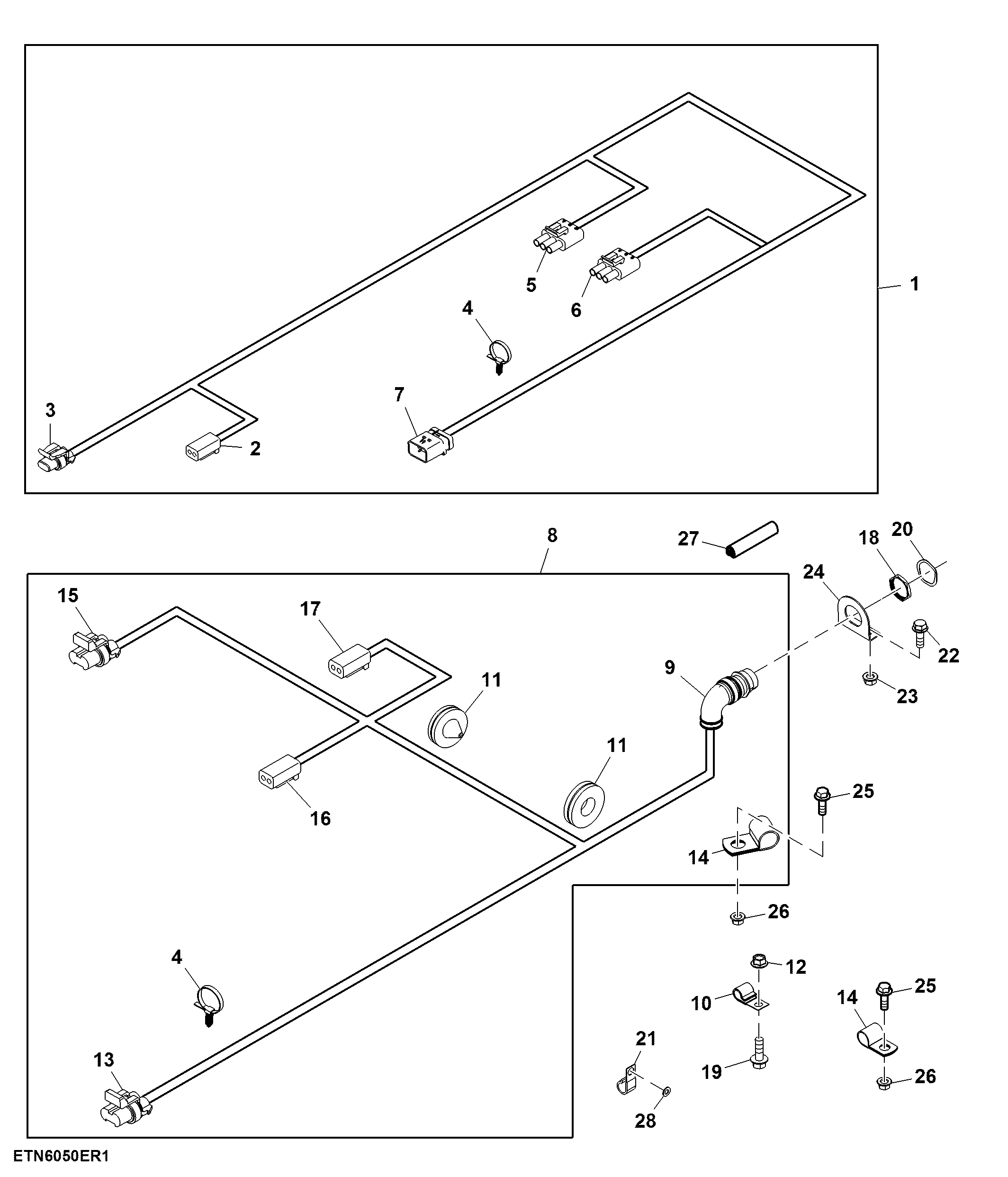

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE18405	1	Wiring Harness	-
2	57M10517	1	Elec. Connector Housing	RT Spreader Speed SOL
2	57M8165	2	Elec. Connector Terminal	-
2	57M8022	1	Elec.Connect Locking Device	-
3	57M7254	1	Elec. Connector Housing	LT Spreader Speed SOL
3	57M7494	2	Elec. Connector Terminal	-
3	57M7289	1	Elec.Connect Locking Device	-
3	57M9214	2	Elec. Connector Seal	-
4	57M10233	10	Tie Band	-
5	RE12364	1	Electrical Connector Assy	Left Speed Sensor
5	R78057	3	Elec. Connector Terminal	-
5	57M9549	3	Elec. Connector Seal	-
6	57M9549	3	Elec. Connector Seal	-
6	R78057	3	Elec. Connector Terminal	-
6	RE12364	1	Electrical Connector Assy	Right Speed Sensor
7	57M9804	1	Elec. Connector Housing	Right Hand Main
7	57M9812	8	Elec. Connector Terminal	-
7	57M9844	1	Elec. Connector Accessory	-
7	57M9940	1	Elec. Connector Accessory	-
8	AXE18407	1	Wiring Harness	-
9	57M9511	1	Elec. Connector Housing	Flex Res LC 2
9	57M9812	2	Elec. Connector Terminal	-
9	57M8592	4	Elec. Connector Terminal	-
9	57M8704	1	Elec. Connector Accessory	-
10	AH78237	1	Clamp	-
11	H94433	2	Grommet	-
12	14M7298	3	Flange Nut	M8
13	57M9961	1	Elec. Connector Housing	Left Chopper Actuator
13	57M9563	2	Elec. Connector Cable Seal	-
13	57M7588	2	Elec. Connector Terminal	-
13	57M9962	1	Elec.Connect Locking Device	-
14	H75541	1	Clamp	-
15	57M10517	1	Elec. Connector Housing	Chopper Position Sensor
15	57M9808	2	Elec. Connector Terminal	-
15	57M8022	1	Elec.Connect Locking Device	-
16	57M9961	1	Elec. Connector Housing	Right Chopper Actuator
16	57M7588	2	Elec. Connector Terminal	-
16	57M9962	1	Elec.Connect Locking Device	-
16	57M9563	2	Elec. Connector Cable Seal	-
17	57M8022	1	Elec.Connect Locking Device	-
17	57M9808	2	Elec. Connector Terminal	-
17	57M10517	1	Elec. Connector Housing	Chopper Speed Sensor
18	57M8035	1	Nut	-
19	19M7867	3	Screw	M8 X 25
19	14M7298	3	Flange Nut	M8
20	57M9061	1	Elec.Connect Locking Device	-
21	AH96317	1	Clip	SUB FOR AH89557
22	19M7862	2	Screw	M6 X 20
23	14M7303	2	Flange Nut	M6
24	H224063	1	Plate	-
25	19M7786	1	Screw	M10 X 30
26	14M7296	1	Flange Nut	M10
27	H237819	2	Isolator	CTL 90 mm, MF AH122244
28	24H1289	1	Washer	21/64" X 5/8" X 0.049"
