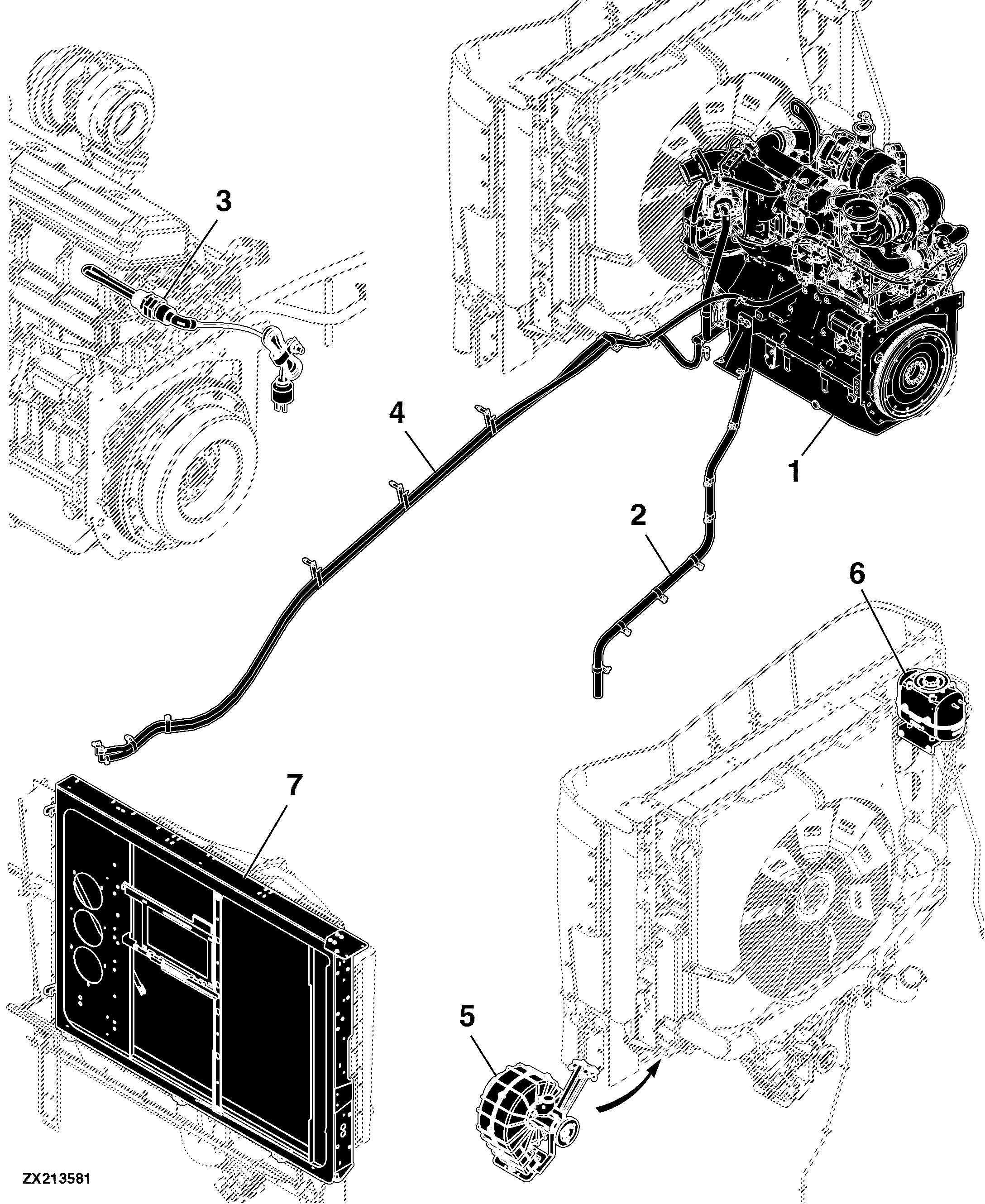

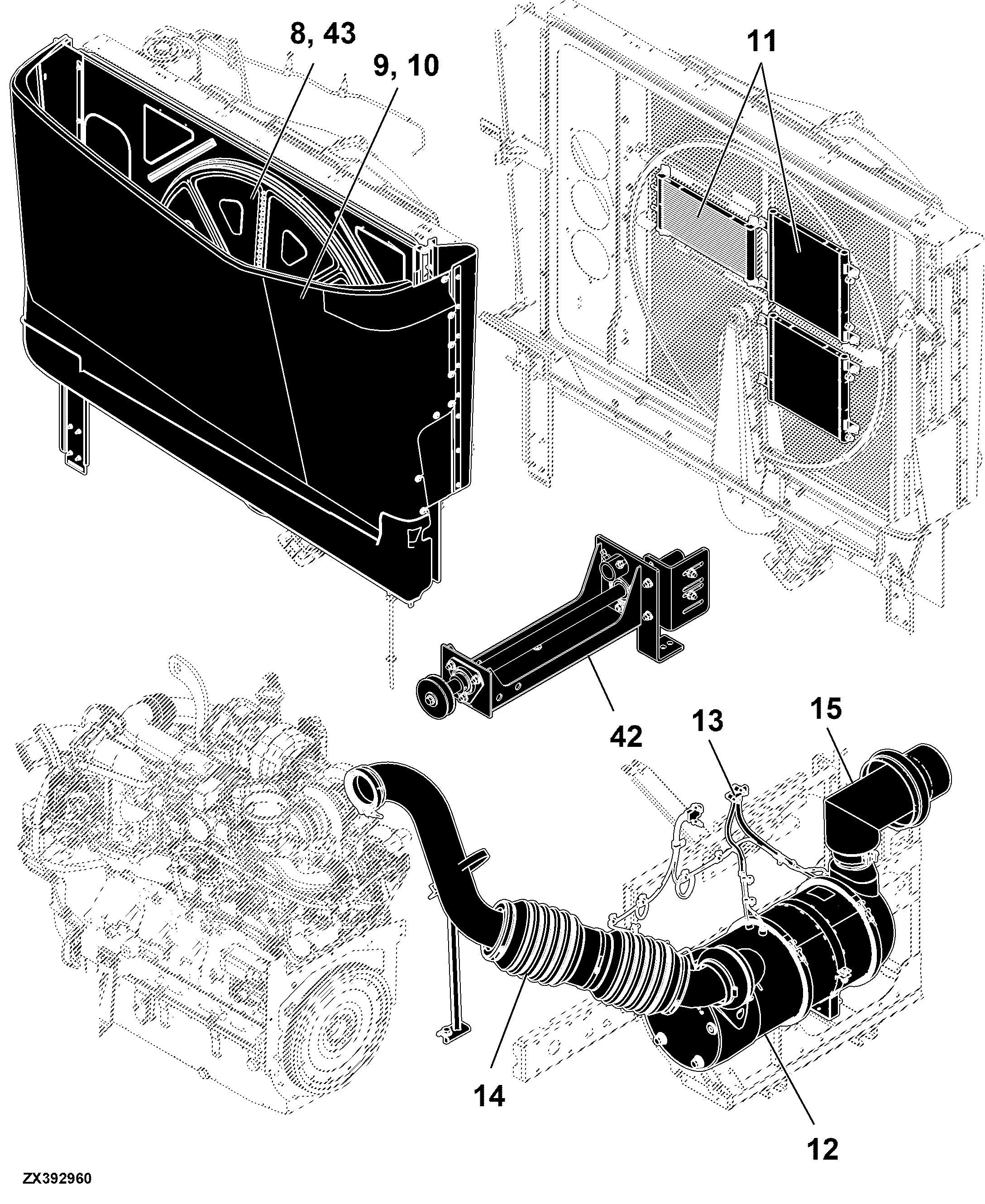

30 Engine Auxiliaries, Tank, Air System S685 - For Engine 6135HH003 - MY15

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Fuel Tank	-
-	-	1	Front Engine Drive, Final Tier 4	-
-	-	1	Fuel Lines, Hoses, Fittings and Clamps, Interim Tier 4	-
-	-	1	Fuel Pre-Filter, Optional	-
-	-	1	Fuel Pre-Filters, Premium Flex	-
-	-	1	Fuel System Hoses and Fittings, W/ Weight Restriction	-
-	-	1	Fuel System, 13.5 L Engine, 9 L Tank, Interim Tier 4 - Hoses, Fittings and Clamps	-
-	-	1	Fuel System, Diesel Exhaust Fluid Tank Assembly	-
-	-	1	Fuel System, Hose, Fittings and Clamps, Non Spreader Parts	-
-	-	1	Fuel System, Hoses, Fittings and Clamps, Non Spreader Parts	-
-	-	1	Fuel System, Hoses, Fittings and Clamps, Spreader Parts	-
-	-	1	Fuel System, Pre-Filters, Standard	-
-	-	1	Fuel System: Pre-Filters - STD Premium Flex	-
-	-	1	Fan Drive	-
-	-	1	Fuel Tank, 760 L (200.77 U.S. Gallon)	-
-	-	1	Fuel Tank, 950 L (250.96 U.S. gal.)	-
-	-	1	Heater Hoses	-
-	-	1	HVAC Condensers and Fuel Cooler	-
-	-	1	Oil Drain and Blow By Hoses and Clamps - Interim Tier 4	-
-	-	1	Rotary Screen Brush Kit	-
-	-	1	Rotary Screen Jackshaft	-
-	-	1	Support, Diesel Exhaust Fluid Tank Assembly	-
-	-	1	Surge Tank and Mounting Bracket	-
-	-	1	Torsional Damper	-
-	-	1	Vacuum Fan Drive	-
-	-	1	Vacuum Fan System	-
-	-	1	Cooling Package Screen Door	-
-	-	1	Air Intake Duct Plug	-
-	-	1	Air Intake Hose	-
-	-	1	Air Intake System	-
-	-	1	Air Intake System, Plumbing	-
-	-	1	Air Pre-cleaner and Filter	-
-	-	1	Aspiration Hoses, Air Intake System, 13.5 L	-
-	-	1	Blower, Debris Management Air Supply	-
-	-	1	Coolant Hoses, Final Tier 4, 13.5L	-
-	-	1	Coolant Hoses, Final Tier 4, 9L	-
-	-	1	Cooling Package Air Screen Drive, Engine Side	-
-	-	1	Cooling Package Air Screen Drive, Screen Side	-
-	-	1	Cooling Package Frame 13.5 L	-
-	-	1	Air Cleaner and Blower Hoses	-
-	-	1	Cooling Package Screen Door (1 of 2)	-
-	-	1	Cooling Package Screen Door (2 of 2)	-
-	-	1	Diesel Exhaust Fluid Dosing Unit, 12 V	-
-	-	1	Diesel Exhaust Fluid Lines W/ Weight Restriction	-
-	-	1	Diesel Exhaust Fluid Lines W/O Weight Restriction	-
-	-	1	Diesel Oxidation Catalyst / Diesel Particulate Filter Sensors, Exhaust Pipe, Interim Tier 4	-
-	-	1	Dosing Module, Diesel Exhaust Fluid	-
-	-	1	Engine Coolant Heater, 220 V, Final Tier 4	-
-	-	1	Engine Mounts, Diesel Engine - Interim Tier 4	-
-	-	1	Exhaust Outlet Tube, Exhaust Pipe, Interim Tier 4	-
-	-	1	Exhaust Pipe Diesel Oxidation Catalyst / Diesel Particulate Filter and Mounts, Interim Tier 4	-
-	-	1	Exhaust Pipe, Turbocharger, Interim Tier 4	-

30 Engine Auxiliaries, Tank, Air System S685 - For Engine 6135HH003 - MY15

Нет текстового описания
