Hydraulic and Electrical Components for Dual Speed Straw Spreader, Attachment, 2 of 2

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE10367	1	Drive	-
2	38H5005	2	Adapter Fitting	-
3	T77858	2	O-Ring	-
4	51M7047	2	O-Ring	23.600 X 2.900 mm
5	R77175	1	Cover	-
6	RE190805	1	Diagnostic Coupling	Spreader Diagnostic Receptacle X10
7	38H5027	1	Elbow Fitting	-
8	51M7045	4	O-Ring	19.300 X 2.200 mm
9	T77857	3	O-Ring	-
10	38H5004	1	Adapter Fitting	-
11	N305925	7	Plug	-
12	38H5076	1	Adapter Fitting	-
13	38H5018	1	Elbow Fitting	-
14	T77932	1	O-Ring	-
15	AT224864	2	Seal Kit	-
15	AH228048	2	Check Valve	Spreader D22
16	AXE16272	1	Pressure Relief Valve	Spreader Relief Valve V21
16	AT224864	1	Seal Kit	-
17	AH228035	2	Solenoid Valve	Left Spreader Speed Y101
17	AH228035	2	Solenoid Valve	Right Spreader Speed Y102
17	AN207423	2	Seal Kit	-
18	AH228045	1	Solenoid Valve Coil	-
19	AXE13831	1	Solenoid Valve Coil	-
20	H229535	2	Orifice	-
21	AXE15539	1	Valve	-
22	AXE12375	1	Hydraulic Pressure Valve	Spreader Primary Valve V118
22	AN261743	1	O-Ring Kit	-
23	AT380801	1	Hydraulic Pressure Valve	Spreader Compensation Valve V117
23	AT225085	1	Seal Kit	-
24	N304196	2	Plug	-
25	N223292	2	Nut	-
26	AXE37627	1	Wiring Harness	Dual Straw Spreader
27	57M10517	1	Elec. Connector Housing	Y102 Right Spreader Speed Solenoid
27	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
27	57M8022	1	Elec.Connect Locking Device	-
28	57M7254	1	Elec. Connector Housing	Y101 Left Spreader Speed Solenoid
28	57M9556	1	Elec. Connector Accessory	-
28	57M7494	2	Elec. Connector Terminal	Cavity A, B
28	57M7377	2	Elec. Connector Seal	Cavity A, B
29	H94433	1	Grommet	-
30	57M9940	1	Elec. Connector Accessory	-
30	57M10336	4	Elec. Connector Cavity Plug	Cavity 9, 10, 11, 12
30	57M9813	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8
30	57M9804	1	Elec. Connector Housing	Right Main Harness / Residue Harnesses
31	RE12364	1	Electrical Connector Assy	B60 Right Straw Spreader Speed Sensor
31	57M10924	3	Elec. Connector Terminal	Cavity A, B, C
31	57M9549	3	Elec. Connector Seal	Cavity A, B, C
32	R44302	2	Tie Band	-
33	AXE45421	1	Electrical Connector Cap	-
34	57M10233	3	Tie Band	-
35	AXE25732	1	Electrical Connector Cap	-
36	RE12364	1	Electrical Connector Assy	B50 Right Straw Spreader Speed Sensor
36	57M10924	3	Elec. Connector Terminal	Cavity A, B, C
36	57M9549	3	Elec. Connector Seal	Cavity A, B, C

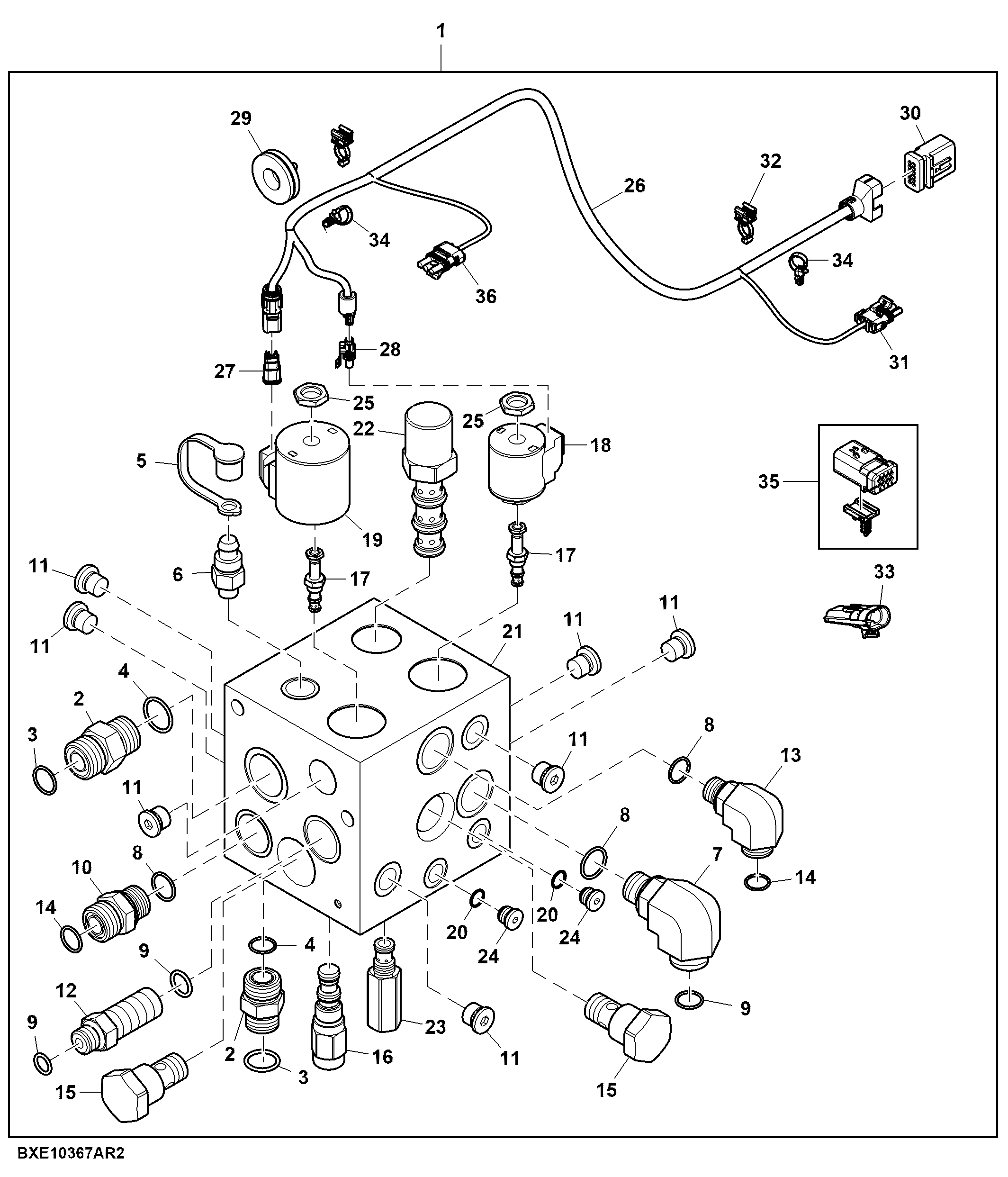

Hydraulic and Electrical Components for Dual Speed Straw Spreader, Attachment, 2 of 2
