Открытый узел

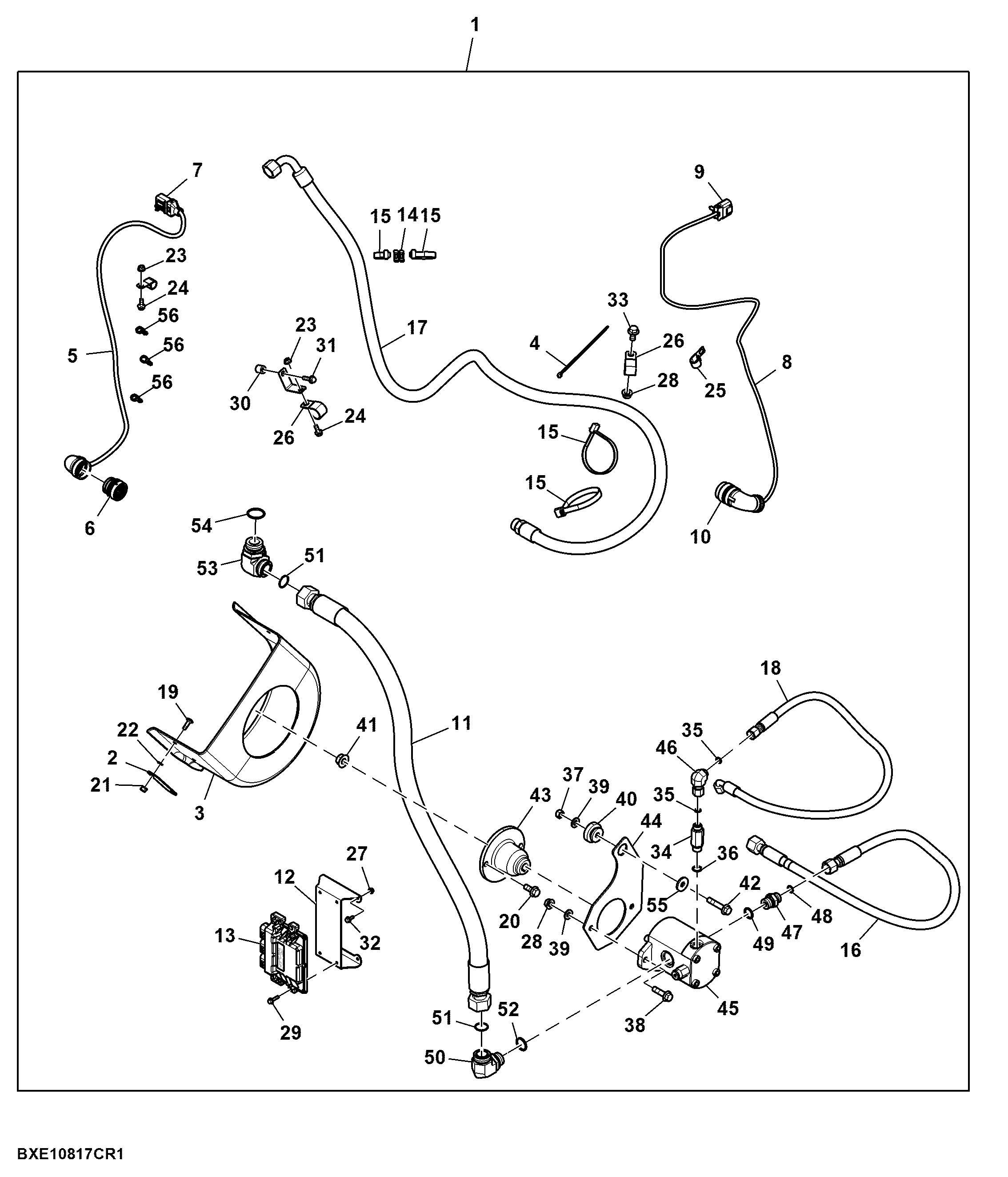

Hydraulic and Electric Components, Advanced PowerCast™, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE10817	1	Hydraulic Pump	-
2	H228693	2	Strap	-
3	HXE37184	1	Shield	-
4	R44302	1	Tie Band	-
5	AXE40915	1	Wiring Harness	Advanced PowerCast™ Tailboard Right Extension Harness
6	57M8794	1	Elec. Connector Housing	Advanced PowerCast™ Tailboard Right Extension Harness to Advanced PowerCast™ Tailboard Harness
6	57M9808	6	Elec. Connector Terminal	Cavity A, B, C, D, L, M
6	57M10321	1	Elec. Connector Terminal	Cavity K
6	57M8704	1	Elec. Connector Accessory	-
7	57M9804	1	Elec. Connector Housing	Right Main Harness to Spreader Harness
7	57M9812	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 11, 12
7	57M10322	1	Elec. Connector Terminal	Cavity 10
7	57M9844	1	Elec. Connector Accessory	-
7	57M9940	1	Elec. Connector Accessory	-
8	AXE40639	1	Wiring Harness	Advanced PowerCast™ Tailboard Left Extension Harness
9	57M10794	6	Elec. Connector Terminal	Cavity B, C, D, H, J, K
9	57M8910	1	Clip	-
9	57M9448	1	Elec.Connect Locking Device	-
9	57M9223	6	Elec. Connector Seal	Cavity B, C, D, H, J, K
9	57M8324	4	Elec. Connector Terminal	Cavity A, F, G, M
9	57M9220	1	Elec. Connector Housing	LC2 Harness to Advanced PowerCast™ Tailboard Left Extension Harness
9	57M8308	4	Elec. Connector Terminal	Cavity A, F, G, M
10	57M9513	1	Elec. Connector Housing	Advanced PowerCast™ Tailboard Left Extension Harness to Advanced PowerCast™ Tailboard Harness
10	57M9808	6	Elec. Connector Terminal	Cavity 1, 2, 4, 5, 6, 7
10	57M8569	4	Elec. Connector Terminal	Cavity 12, 14, 16, 18
10	57M8704	1	Elec. Connector Accessory	-
11	AXE47269	1	Hydraulic Hose	LGTH = 1280 mm, Residue Suction
12	HXE20104	1	Bracket	-
13	AH224250	1	Electronic Control Unit	-
14	AN209168	1	Swivel	-
15	H224073	4	Tie Band	-
16	AXE36333	1	Hydraulic Hose	LGTH = 1457 mm, Advanced PowerCast™ Residue Pressure
17	AXE36329	1	Hydraulic Hose	LGTH = 2640 mm, Advanced PowerCast™ Residue Return
18	AXE40878	1	Hydraulic Hose	LGTH = 1600 mm, Advanced PowerCast™ Residue, Case Drain
19	03M7185	4	Bolt	M8 X 25
20	19M7789	2	Screw	M12 X 30
21	H137328	4	Lock Nut	-
22	M84309	4	Nut	-
23	14M7298	2	Flange Nut	M8
24	19M7866	2	Screw	M8 X 20
25	AH96317	2	Clip	-
26	R46667	2	Clamp	-
27	14M7303	8	Flange Nut	M6
28	14M7299	3	Flange Nut	M12
29	19M7863	4	Screw	M6 X 25
30	H130269	1	Spacer	-
31	19M7798	1	Screw	M8 X 40
32	19M7775	4	Screw	M6 X 16
33	19M7788	1	Screw	M12 X 25
34	38H5240	1	Adapter Fitting	-
35	T77857	2	O-Ring	-
36	51M7045	1	O-Ring	19.300 X 2.200 mm
37	A31867	1	Lock Nut	-
38	19M7813	2	Screw	M12 X 45
39	24M7240	3	Washer	13 X 25 X 3 mm
40	T41770	1	Isolator	-
41	E92858	1	Nut	-
42	19M7815	1	Screw	M12 X 60
43	HXE104002	1	Hub	-
44	HXE39304	1	Bracket	-
45	AXE68347	1	Hydraulic Pump	-
45	AXE15528	1	Seal Kit	-
46	38H1095	1	Elbow Fitting	-
47	38H5152	1	Adapter Fitting	-
48	T77932	1	O-Ring	-
49	51M7047	1	O-Ring	23.600 X 2.900 mm
50	38H5149	1	Elbow Fitting	-
51	T78612	2	O-Ring	-
52	51M7048	1	O-Ring	29.600 X 2.900 mm
53	38H5021	1	Elbow Fitting	-
54	51M7049	1	O-Ring	38.600 X 2.900 mm
55	24H1077	1	Washer	17/32" X 1-7/16" X 0.180"
56	57M10233	5	Tie Band	-

Hydraulic and Electric Components, Advanced PowerCast™, Attachment
