Flex Residue Straw Spreader, Attachment (2 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE10358	1	Spreader	-
2	T77932	2	O-Ring	-
3	R26906	4	O-Ring	-
4	38H1174	2	Adapter Fitting	-
5	T77857	2	O-Ring	-
6	AXE66484	3	Vane	-
7	24M7298	24	Washer	8.400 X 25 X 2 mm
8	H137328	8	Lock Nut	-
9	14M7260	1	Nut	M16
10	14M7298	17	Flange Nut	M8
11	19M7819	1	Screw	M12 X 90
12	19M7866	6	Screw	M8 X 20
13	28H3449	2	Bushing	0.546" X 0.840" X 1/2"
14	AH203078	1	Structural Tube	-
15	H172174	1	Eyebolt	-
16	H137329	1	Lock Nut	-
17	AXE24501	1	Latch	-
18	14M7296	8	Flange Nut	M10
19	19M7785	8	Screw	M10 X 25
20	03M7184	46	Bolt	M8 X 20
21	AH162235	2	Structural Tube	-
22	AH214862	2	Ball Bearing	-
23	H103264	4	Pressed Flanged Housing	-
24	JD8554	2	Eccentric Locking Collar	-
25	19M7805	4	Screw	M10 X 45
26	AH163361	4	Pin	-
27	AH159872	2	Hub	-
28	H170374	8	Blade	-
29	H171890	2	Plate	-
30	H174163	8	Reinforcement	-
31	19M7867	5	Screw	M8 X 25
32	H154608	2	Quick Coupler	-
33	H167246	2	Pin	-
34	M64720	2	Rivet	-
35	37M7058	2	Screw	M8 X 20
36	H171599	1	Support	-
37	H171600	1	Bushing	-
38	AXE17375	1	Seal Kit	-
38	AH148944	1	Hydraulic Motor	Motor Residue Spreader
39	AXE16322	1	Hydraulic Hose	LGTH = 820 mm, Press To LH Motor
40	19M7784	8	Screw	M10 X 20
41	AXE24725	1	Bar	-
42	AH206453	1	Pin	-
43	HXE13210	1	Bracket	Strut Support
44	HXE34460	1	Bracket	Residue Latch Bracket Support
45	14M7518	6	Flange Nut	M10
46	19M10398	1	Cap Screw	M10 X 200
47	19M7786	4	Screw	M10 X 30
48	19M7800	1	Screw	M8 X 50
49	19M7803	2	Screw	M8 X 70
50	19M7863	4	Screw	M6 X 25
51	24M7024	2	Washer	9 X 28 X 3 mm
52	24M7134	2	Washer	10.500 X 22 X 2 mm
53	24M7178	4	Washer	10.500 X 30 X 2.500 mm
54	24M7629	4	Washer	12.500 X 45 X 3 mm
55	AH135290	1	Quick Lock Pin	-
56	HXE26737	1	Label	Model Designation; Deflector Vanes Adjustment
57	HXE38167	1	Bushing	-
58	HXE51791	4	Screw	-
59	KV13784	1	Latch	-
60	Z77770	1	Compression Spring	-
61	AXE24911	1	Structural Tube	-
62	28H1992	4	Spacer	0.364" X 0.540" X 2"
63	H165547	6	Plug	-
64	AXE40388	1	Tube	LH
65	AXE40389	1	Tube	RH
66	26H85	2	Shaft Key	1/4" X 1", SUB FOR 26H22
67	38H1162	2	Adapter Fitting	-
68	AXE72726	1	Hydraulic Motor	Short Shaft, Speed Pickup SUB FOR AH223112
68	AXE17375	1	Seal Kit	-
69	AH96317	6	Clip	-
71	22H897	1	Set Screw	1/4" X 1/4"
72	R78058	3	Elec. Connector Terminal	-
73	R78054	1	Electrical Connector Assy	-
74	51M7089	1	O-Ring	10.800 X 2.400 mm
70A	AH228007	1	Sensor	Speed Pickup Hall Effect
70B	AXE68069	1	Sensor	SUB FOR AH228007

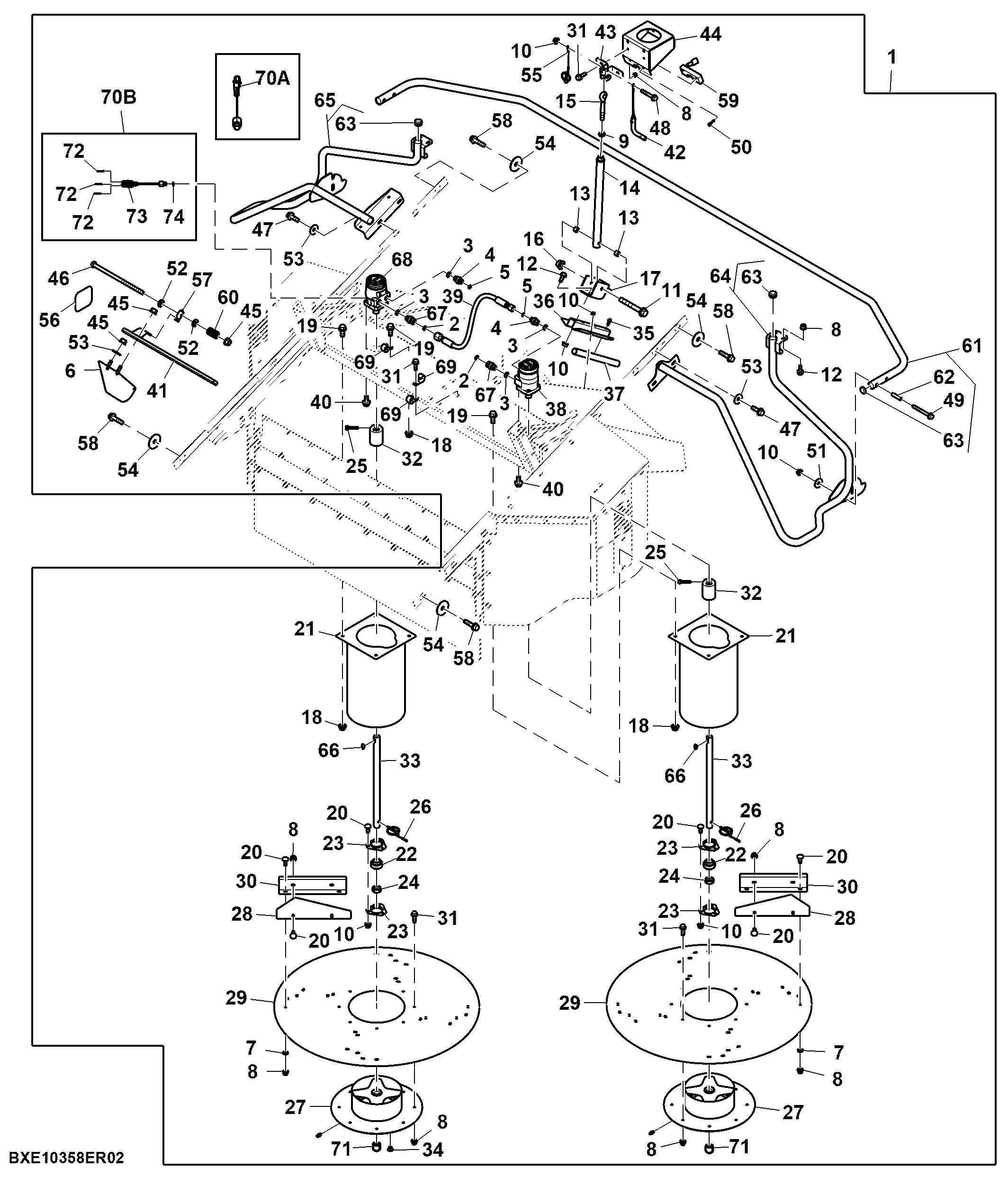

Flex Residue Straw Spreader, Attachment (2 of 2)
