Chaffer Frame Combine Shoe W/ Raised Center Front Extension

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7192	12	Bolt	M10 X 30
2	14M7296	55	Flange Nut	M10
3	14M7298	30	Flange Nut	M8
4	19M7784	17	Screw	M10 X 20
5	19M7785	10	Screw	M10 X 25
6	19M7789	4	Screw	M12 X 30
7	19M7843	2	Screw	M16 X 35
8	19M7866	44	Screw	M8 X 20
9	24M7101	4	Washer	11 X 34 X 3 mm
10	AH152122	1	Support	FRONT
11	AH223121	1	Chaffer	FRONT
12	AH223122	2	Bracket	FRONT
13	14M7299	4	Flange Nut	M12
14	AH233283	2	Seal	-
15	H174331	4	Reinforcement	-
16	M64720	131	Rivet	-
17	H154071	52	Nut	-
18	HXE12979	2	Sealing Trim	-
19	HXE25976	2	Strip	-
20	H148835	8	Bolt	-
21	H203497	2	Seal	-
22	H205727	3	Plate	-
23	H225940	3	Partition	-
24	AH164851	1	Channel	-
25	AXE51596	1	Pan	SUB FOR AXE11338
26	HXE26336	2	Reinforcement	-
27	AXE17210	1	Deflector	-
28	AH227148	1	Frame	FRONT
29	H205857	1	Isolator	-
30	H164715	1	Retainer	-
31	H205599	2	Seal	-
32	H205609	2	Reinforcement	-
33	R115466	12	Plug	-
34	AXE20200	1	Bracket	INCLUDES HXE30090 AND HXE35544
35	HXE30090	2	Strip	-
36	HXE46740	1	Sheet	SUB FOR HXE29886
37	AXE20201	1	Bracket	INCLUDES HXE30090 AND HXE35544
38	AXE21036	1	Seal	LH, INCLUDES HXE29896, HXE30899 AND (4) M64720
39	HXE29896	2	Seal	-
40	HXE30899	2	Seal	-
41	03M7307	4	Bolt	M10 X 25
42	19M7865	4	Screw	M8 X 16
43	AXE21035	1	Seal	RH, INCLUDES HXE29896, HXE30899 AND (4) M64720
44	HXE35544	2	Rivet	3.250 mm (0.128")
45	24H1254	4	Washer	17/32" X 1-1/8" X 0.105"

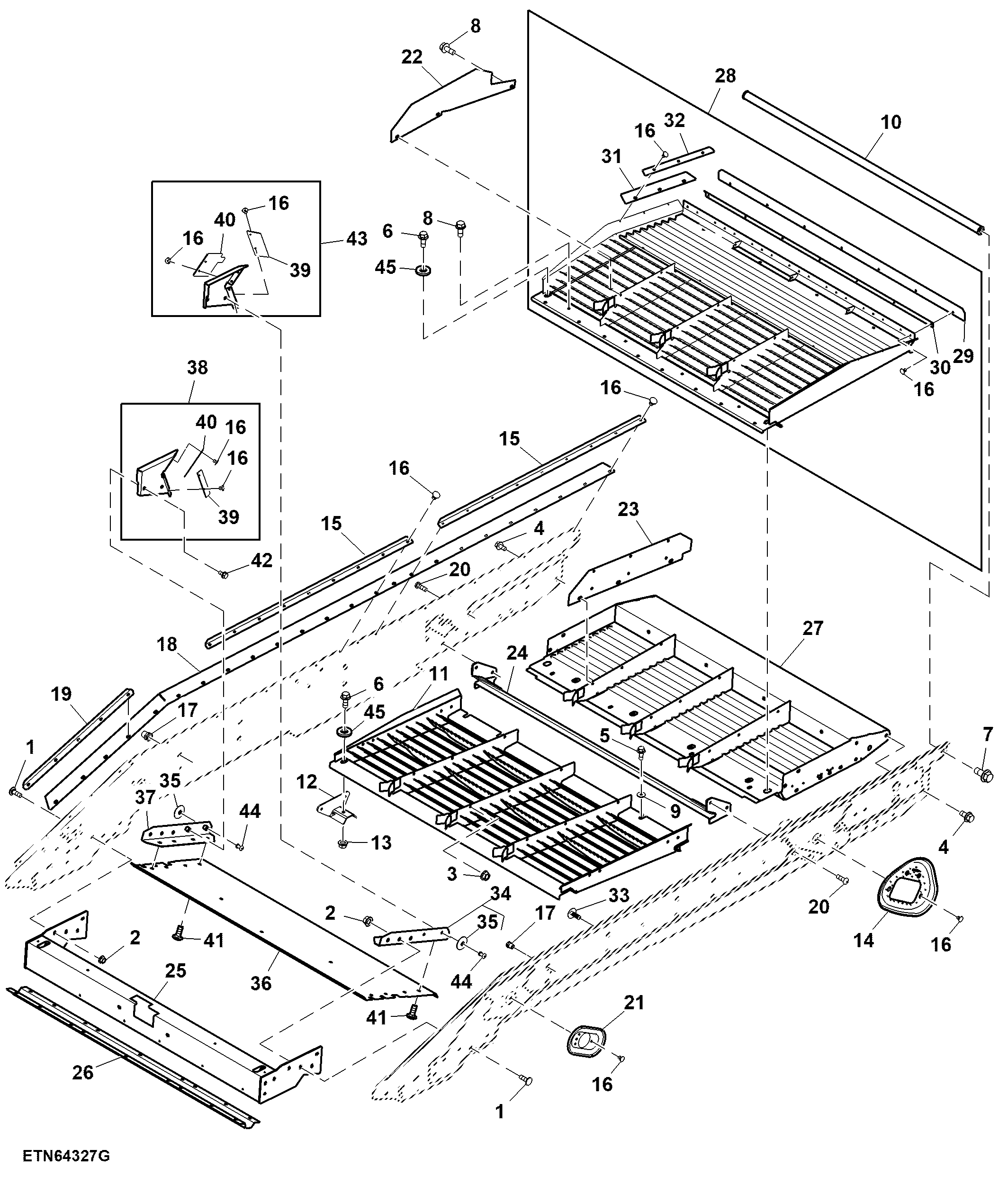

Chaffer Frame Combine Shoe W/ Raised Center Front Extension
