Loading Auger Housing, 400 Bushels, Power Fold

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7866	4	Screw	M8 X 20
2	14M7298	11	Flange Nut	M8
3	H236286	1	Bracket	-
4	HXE100164	1	Deflector	(For Rice Only)
4	HXE100163	1	Deflector	(Extended Wear) SUB FOR H236287
5	03M7307	2	Bolt	M10 X 25
6	14M7296	11	Flange Nut	M10
7	19M7815	1	Screw	M12 X 60, USE WITH HXE129958, HXE100161 OR HXE100162
7	19M7817	1	Screw	M12 X 70, USE WITH HXE137548
8	24M7180	1	Washer	13 X 37 X 3 mm
9	H137916	1	Shim	TK = 0.762 mm
10	HXE100162	1	Support	(For Rice Only)
10	HXE137548	1	Support	(Extended Wear) SUB FOR HXE100161 OR HXE129958; ALSO ORDER 19M7817 AND HXE127153
11	H236285	1	Bracket	-
12	JD10384	1	Bearing	-
13	N15764	2	Pressed Flanged Housing	-
14	24M7296	2	Washer	10.500 X 30 X 2.500 mm
15	A31869	1	Lock Nut	-
16	H229875	6	Bolt	-
17	AXE56594	1	Housing	-
18	AXE14164	1	Support	-
19	14M7299	1	Flange Nut	M12
20	AXE21201	1	Arm	-
21	H137328	2	Lock Nut	-
22	HXE13660	1	Bushing	-
23	14M7276	2	Nut	M16
24	H218049	1	Bracket	-
25	HXE98728	1	Channel	LH, SUB FOR HXE13659 APPL
26	H217449	1	Hinge	RH
27	45M7057	2	Pin Fastener	16 X 45 mm
28	11M7021	1	Cotter Pin	4 X 25 mm
29	19M7803	1	Screw	M8 X 70
30	19M7867	4	Screw	M8 X 25
31	19M7820	1	Screw	M12 X 100
32	H172174	1	Eyebolt	-
33	03M7184	2	Bolt	M8 X 20
34	H85184	1	Handle	-
35	AXE17977	1	Gas Operated Cylinder	-
36	11M7081	1	Cotter Pin	2.500 X 20 mm
37	HXE29370	1	Pin	-
38	H157762	1	Plate	-
39	19M7785	3	Screw	M10 X 25
40	TCU25076	1	Spring Locking Pin	-
41	AH85494	1	Link Chain	-
42	HXE99951	1	Pin	-
43	H141123	4	Push Nut	-
44	14M7589	1	Lock Nut	M16
45	24M7241	2	Washer	17 X 34 X 4 mm
46	HXE127153	1	Deflector	USE WITH HXE137548

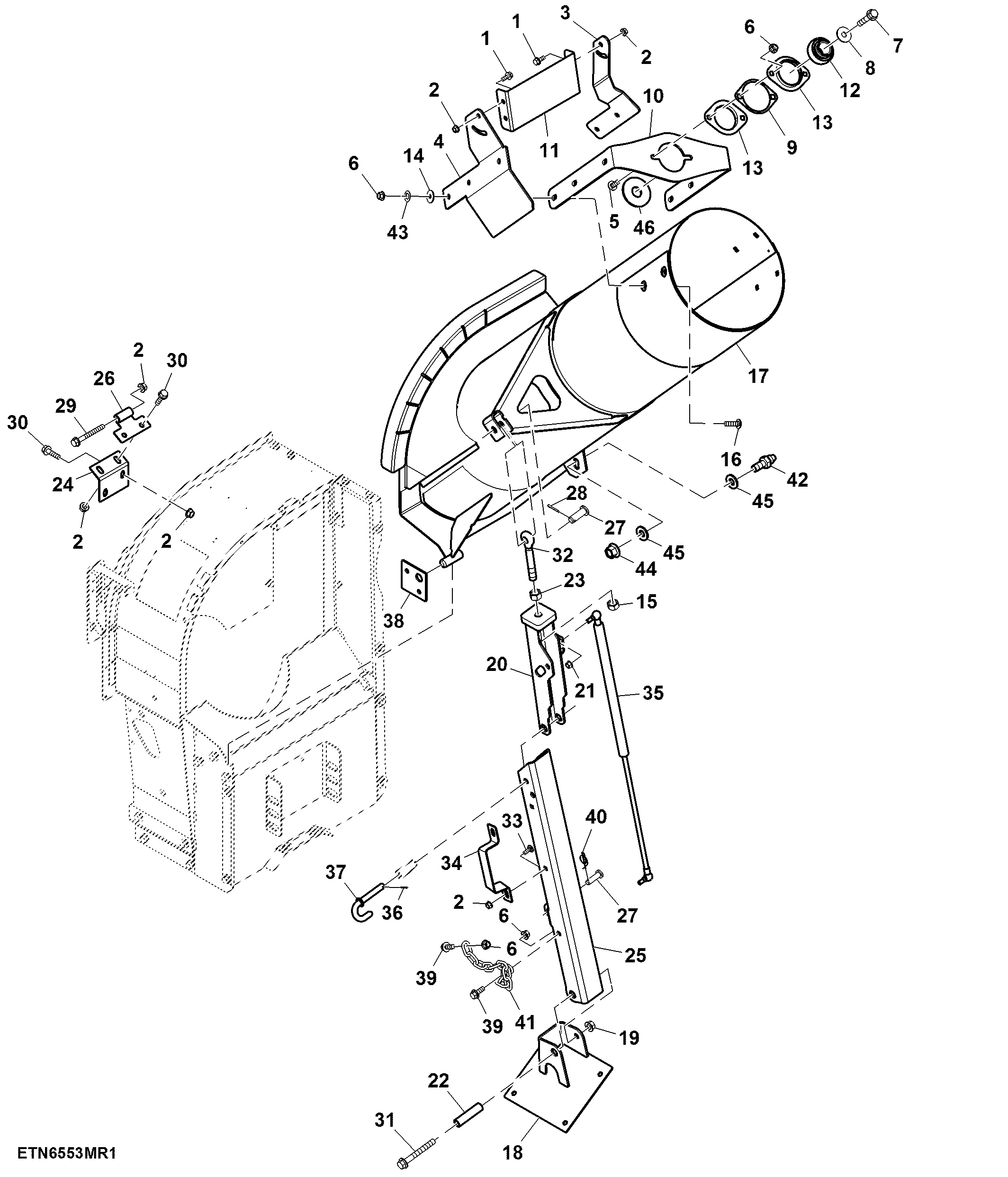

Loading Auger Housing, 400 Bushels, Power Fold
