Left Control Unit 1 Main Wiring Harness (1 of 6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE52726	1	Wiring Harness	-
2	57M11372	1	Elec. Connector Housing	Cab Roof / Vehicle Harness
2	57M8593	8	Elec. Connector Terminal	-
2	57M8569	2	Elec. Connector Terminal	-
2	R78069	6	Elec. Connector Cavity Plug	-
2	57M8704	1	Elec. Connector Accessory	-
3	R78069	1	Elec. Connector Cavity Plug	-
3	57M10429	1	Elec. Connector Accessory	-
3	57M8569	1	Elec. Connector Terminal	-
3	57M8593	6	Elec. Connector Terminal	-
3	57M9656	1	Elec. Connector Terminal	Cab Roof / Vehicle Harness
4	57M11371	1	Elec. Connector Housing	Cab Main / Vehicle Harness
4	57M8537	10	Elec. Connector Terminal	-
4	57M9526	1	Elec. Connector Terminal	-
4	R78069	1	Elec. Connector Cavity Plug	-
4	57M8009	1	Elec.Connect Locking Device	-
5	57M7905	2	Electrical Connector Assy	-
5	57M8704	1	Elec. Connector Accessory	-
5	R78069	4	Elec. Connector Cavity Plug	-
5	57M8569	2	Elec. Connector Terminal	-
5	57M9379	1	Elec. Connector Housing	e-Seat / CPMB / Vehicle Harness
5	57M8593	1	Elec. Connector Terminal	-
6	57M9817	1	Elec. Connector Housing	ADU 02 (A118)
6	57M10631	4	Elec. Connector Terminal	-
6	57M9840	1	Elec. Connector Accessory	-
6	57M11335	1	Elec. Connector Accessory	-
7	57M9817	1	Elec. Connector Housing	ADU 03 (A119)
7	57M10631	2	Elec. Connector Terminal	-
7	57M10321	2	Elec. Connector Terminal	-
7	57M9840	1	Elec. Connector Accessory	-
7	57M11335	1	Elec. Connector Accessory	-
8	57M8267	1	Elec. Connector Housing	Video Power Inline Fuse 2
8	R104933	2	Elec. Connector Terminal	-
8	57M8487	1	Electrical Connector Cap	-
8	99M7064	1	Fuse	-
9	57M8603	3	Elec. Connector Seal	-
9	57M8324	2	Elec. Connector Terminal	-
9	57M8329	2	Electrical Connector Assy	-
9	57M11996	1	Elec. Connector Accessory	-
9	57M8613	2	Elec. Connector Terminal	-
9	57M8304	2	Elec. Connector Terminal	-
9	57M8300	1	Elec. Connector Terminal	-
9	57M8618	9	Elec. Connector Terminal	-
9	57M8156	1	Elec. Connector Housing	LC1 Main Harness / Automatic Steering Harness
9	57M9223	9	Elec. Connector Seal	-
10	57M8746	1	Elec. Connector Housing	LC1 Main / Transmission Controller Harness
10	57M10321	2	Elec. Connector Terminal	-
10	57M9808	4	Elec. Connector Terminal	-
10	57M10663	1	Elec. Connector Terminal	-
10	R78069	1	Elec. Connector Cavity Plug	-
10	57M11288	1	Elec. Connector Accessory	-
10	57M7632	1	Electrical Connector Assy	-
11	57M9844	1	Elec. Connector Accessory	-
11	57M10336	1	Elec. Connector Cavity Plug	-
11	57M10321	4	Elec. Connector Terminal	-
11	57M9809	2	Elec. Connector Terminal	-
11	57M9802	1	Elec. Connector Housing	LC1 Main / Transmission Controller Harness
11	57M10631	5	Elec. Connector Terminal	-
12	57M9800	1	Elec. Connector Housing	LC1 Main / Transmission Harness
12	57M10631	1	Elec. Connector Terminal	-
12	57M9809	2	Elec. Connector Terminal	-
12	57M10336	9	Elec. Connector Cavity Plug	-
12	57M9844	1	Elec. Connector Accessory	-
13	AH225363	1	Clip	-
14	57M10528	17	Elec. Connector Accessory	-
15	57M10421	1	Elec. Connector Accessory	-
16	AH130222	1	Clamp	-
17	H130269	1	Spacer	-
18	19M7867	9	Screw	M8 X 25
19	37M7149	1	Screw	M8 X 50
20	19M7866	2	Screw	M8 X 20
21	HXE42953	1	Bracket	-
22	HXE98637	1	Sheet	-
23	GX22456	19	Screw	-
24	M84309	1	Nut	-

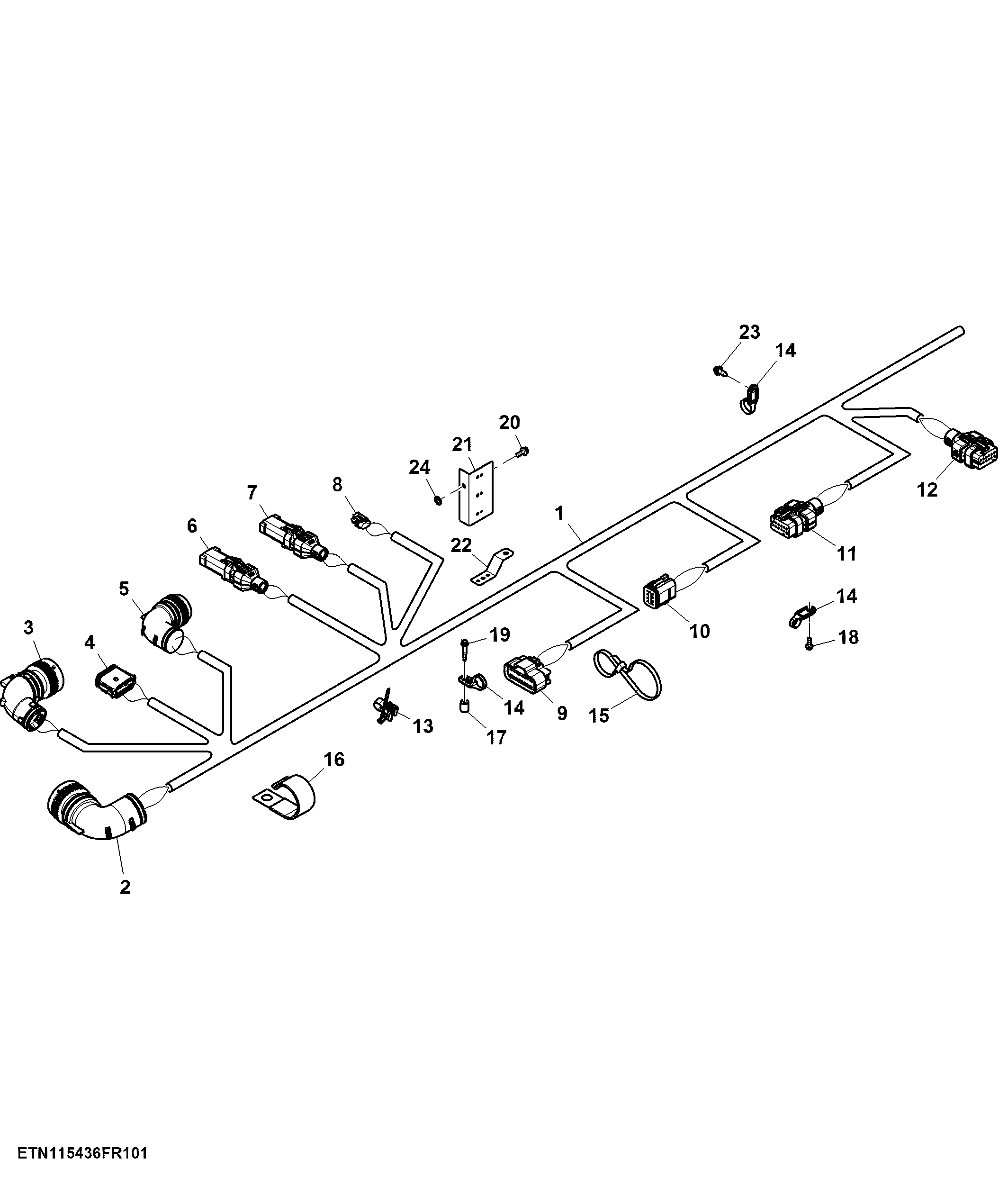

Left Control Unit 1 Main Wiring Harness (1 of 6)
