Открытый узел

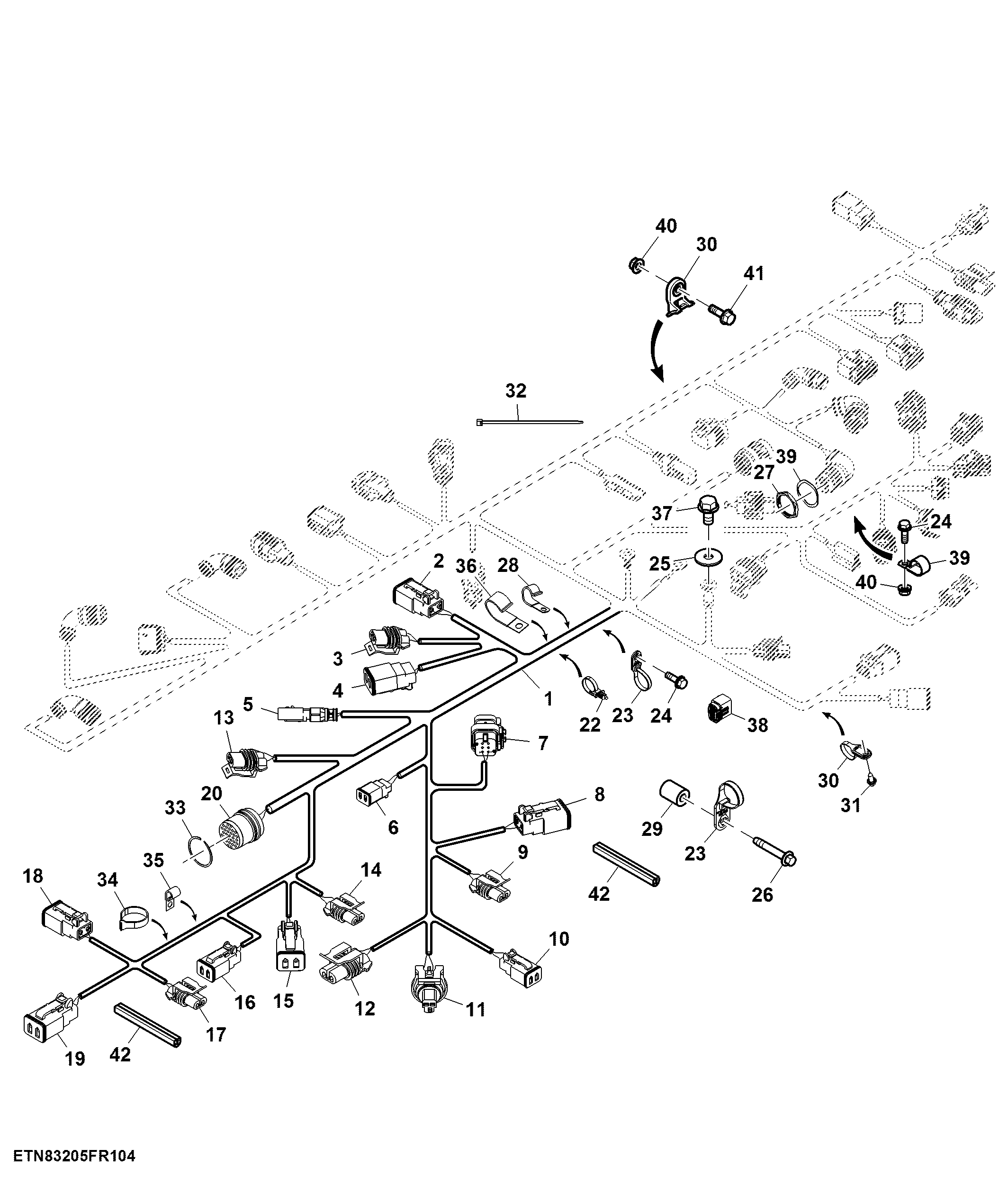

Wiring Harness, Left Control Unit 1, (4/4) ( - 775000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE39489	1	Wiring Harness	SUB FOR AXE37771
2	57M10517	1	Elec. Connector Housing	Reel Reverse Solenoid
3	57M7254	1	Elec. Connector Housing	Reel Speed Adjust Solenoid
4	57M10517	1	Elec. Connector Housing	Feeder House Reverse Solenoid
5	57M9784	1	Elec. Connector Housing	LC1 Main Harness / Left Front Lights Extension Harness
5	57M10602	2	Elec. Connector Terminal	-
6	57M10517	1	Elec. Connector Housing	Feed Accelerator Speed Sensor
7	57M9786	1	Elec. Connector Housing	Feeder House Raise / Lower Position Sensor
7	57M10230	1	Elec. Connector Accessory	-
8	57M10517	1	Elec. Connector Housing	Feeder House Lift Pressure Solenoid
9	57M7254	1	Elec. Connector Housing	Feeder House Flow Raise Solenoid CCH
10	57M10517	1	Elec. Connector Housing	Feeder House Flow Lower Solenoid CCH
11	57M8603	3	Elec. Connector Seal	-
11	57M11405	1	Elec. Connector Accessory	-
11	57M8560	3	Elec. Connector Terminal	-
11	57M10431	1	Elec. Connector Housing	Feeder House Lift Cylinder Pressure Sensor CCH
12	57M7254	1	Elec. Connector Housing	Float Enable Solenoid
13	57M7344	1	Elec. Connector Housing	Left Stubble Light
13	57M7297	1	Elec. Connector Terminal	-
13	57M7371	2	Electrical Connector Assy	-
14	57M7254	1	Elec. Connector Housing	Feeder House Lateral Tilt Left Solenoid CCH
15	57M10517	1	Elec. Connector Housing	Feeder House Lateral Tilt Right Solenoid CCH
16	57M10517	1	Elec. Connector Housing	Reel Raise Solenoid CCH
17	57M7254	1	Elec. Connector Housing	Reel Extend Solenoid CCH
18	57M10517	2	Elec. Connector Housing	Reel Retract Solenoid CCH
19	57M10517	1	Elec. Connector Housing	Reel Lower Solenoid CCH
20	57M11368	27	Elec. Connector Terminal	-
20	57M11369	4	Elec. Connector Terminal	-
20	57M11370	1	Elec. Connector Housing	LC1 Main Harness / Header Harness
21	57M10517	1	Elec. Connector Housing	Cleaning Fan Speed Sensor
22	57M10233	1	Tie Band	-
23	57M10528	3	Elec. Connector Accessory	-
24	19M7867	13	Screw	M8 X 25
25	24M7207	2	Washer	8.400 X 24 X 2 mm
26	37M7149	1	Screw	M8 X 50
27	57M8035	3	Nut	-
28	AH130222	1	Clamp	-
29	H130269	1	Spacer	-
30	H224072	7	Clamp	-
31	GX22456	20	Screw	-
32	R44302	2	Tie Band	-
33	H175881	1	Snap Ring	-
34	H224073	10	Tie Band	-
35	AH89557	1	Clip	-
36	AH96317	1	Clip	-
37	19M7865	2	Screw	M8 X 16
38	57M9061	3	Elec.Connect Locking Device	-
39	AH90990	1	Clip	-
40	14M7298	17	Flange Nut	M8
41	19M7800	1	Screw	M8 X 50
42	-	2	Part 51	CTL 150 mm, MF AH122244

Wiring Harness, Left Control Unit 1, (4/4) ( - 775000)

Нет текстового описания
