Main Wiring Harness, Left Control Unit 2 (3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
34	AH225366	1	Clip	-
35	57M9800	1	Elec. Connector Housing	LC2 Main Harness / Shoe Harness
35	57M9844	1	Elec. Connector Accessory	-
36	57M7254	1	Elec. Connector Housing	Shoe Service Light Switch
36	57M9712	2	Elec. Connector Accessory	-
37	57M7254	1	Elec. Connector Housing	Gullwing Service Light Switch
37	R104846	2	Elec. Connector Terminal	-
37	57M9215	10	Elec. Connector Seal	-
38	RE12365	1	Electrical Connector Assy	Chopper Raise / Lower Switch
38	57M7883	3	Elec. Connector Terminal	-
38	57M10924	1	Elec. Connector Terminal	-
38	R78063	3	Elec. Connector Seal	-
39	57M7260	1	Elec. Connector Housing	Chaffer Adjust Switch
39	57M7291	3	Electrical Connector Assy	-
40	57M7260	1	Elec. Connector Housing	Sieve Adjust Switch
41	57M9961	1	Elec. Connector Housing	Left Chopper Raise / Lower Actuator
41	57M9962	1	Elec.Connect Locking Device	-
42	57M7344	1	Elec. Connector Housing	LC2 Main / Premium Flex Residue Harness
43	57M8865	1	Elec. Connector Terminal	VC Ring Left Rear Chassis Ground (0010P_0010R)
44	57M9535	1	Elec. Connector Terminal	LC2 Electronics Ground (0040)
45	57M9536	1	Elec. Connector Terminal	Flex Residue Chassis Ground
46	57M8677	1	Elec. Connector Housing	LC2 Main Harness / Battery Box Harness
46	57M7613	1	Elec. Connector Terminal	-
46	57M9525	2	Elec. Connector Terminal	-
46	R78069	3	Elec. Connector Cavity Plug	-
46	Z78008	10	Elec. Connector Seal	-
47	57M11406	1	Elec. Connector Accessory	-
48	57M7263	1	Elec. Connector Housing	LC2 Main / Trailer Extension Harness
48	57M7252	8	Elec. Connector Terminal	-
48	57M11342	3	Elec. Connector Terminal	-
48	57M7495	3	Elec. Connector Terminal	-
48	57M7258	3	Elec. Connector Seal	-
48	57M11407	1	Elec. Connector Accessory	-
49	57M7261	1	Elec. Connector Housing	-
49	57M7296	1	Elec. Connector Accessory	-
49	57M7264	1	Elec. Connector Housing	LC2 Main / 2WD OR 4WD Harness
49	57M9555	1	Clip	-
50	57M10492	1	Elec. Connector Accessory	-
51	57M10517	1	Elec. Connector Housing	Grain Elevator Speed Sensor
52	57M9792	1	Elec. Connector Housing	LC2 / Hill Master Valve Harness
52	57M9843	1	Elec. Connector Accessory	-
52	57M9939	1	Elec. Connector Accessory	-
52	57M11337	1	Elec. Connector Accessory	-
52	57M10631	6	Elec. Connector Terminal	-
52	57M10336	2	Elec. Connector Cavity Plug	-
53	H229171	1	Weatherstrip	-
54	GX22456	3	Screw	-
55	R44302	4	Tie Band	-
56	24M7207	3	Washer	8.400 X 24 X 2 mm
57	AH90990	9	Clip	-
58	H224072	7	Clamp	-
59	H224073	8	Tie Band	-
60	19M7865	3	Screw	M8 X 16
61	19M7866	13	Screw	M8 X 20
62	19M7867	1	Screw	M8 X 25
63	H113197	1	Tie Band	-
64	AH89557	2	Clip	-
65	AH130222	3	Clamp	-
66	AH225363	2	Clip	-
67	AH96317	3	Clip	-
68	14M7298	11	Flange Nut	M8
69	H130269	1	Spacer	-
70	H218743	1	Clip	-
71	57M9061	1	Elec.Connect Locking Device	-
72	57M8035	1	Nut	-
73	57M9783	1	Elec. Connector Housing	-
73	57M9808	3	Elec. Connector Terminal	-
73	57M9847	1	Elec. Connector Accessory	-
74	14M7688	1	Flange Nut	M12
75	RE345761	1	Swivel	-
76	-	2	Part 71	CTL 150 mm, MF AH122244

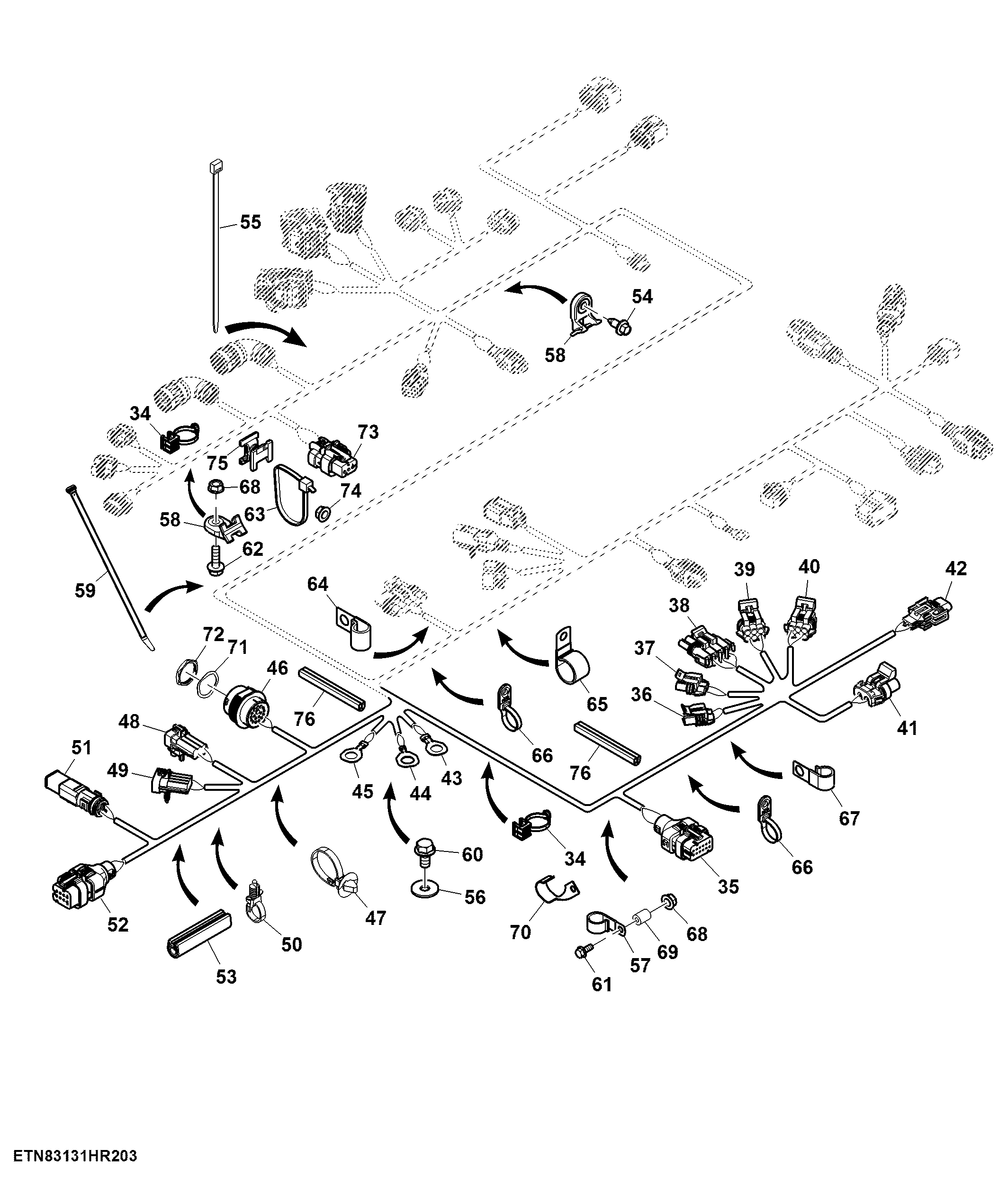

Main Wiring Harness, Left Control Unit 2 (3/3)
