Открытый узел

Powered Rear Wheel Motor Valve, C Frame and Pivot

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE47163	2	Bushing Kit	USE WITH BXE10717
1	AXE12312	2	Bushing Kit	-
2	H175439	6	Screw	-
2	H232626	6	Socket Head Screw	-
3	H175441	4	Screw	-
3	H232631	4	Socket Head Screw	-
4	T77613	4	O-Ring	-
5	AH169194	1	Plug	M33 X 2
6	AH169195	1	Valve Spool	-
7	JD7806	2	Lubrication Fitting	-
8	AH209121	1	Seal Kit	-
9	AH209120	1	Valve	-
10	AXE45240	1	Solenoid Valve Coil	SUB FOR AH219822
11	AXE46088	1	Valve	SUB FOR AH219807
12	19M8513	4	Screw	M6 X 40
13	AH169205	1	Seal Kit	-
14	AH169200	1	Oil Tube	-
15	AH169201	1	Oil Tube	-
16	19M8532	8	Screw	M6 X 35
17	AXE19557	1	Pivot	Upper LH and RH Motor
18	HXE18195	1	Pivot	Lower LH Motor
18	HXE82823	1	Pivot	Lower RH Motor USE WITH BXE10717
18	HXE18196	1	Pivot	Lower RH Motor
18	HXE82822	1	Pivot	Lower LH Motor USE WITH BXE10717
19	19M8440	9	Screw	M10 X 25
20	AXE12311	1	Seal	-
21	H227051	1	Steering Arm	Motor, LH 1886CC
21	H227050	1	Steering Arm	Motor, RH 1886CC
21	HXE28386	1	Steering Arm	Motor, RH 2096CC
21	HXE28387	1	Steering Arm	Motor, LH 2096CC
22	H175446	1	Valve Cover	-
23	19M7946	4	Cap Screw	M20 X 40
24	H75423	2	Pin Fastener	-
25	H163561	10	Spacer	-
26	19M7889	10	Cap Screw	M24 X 80
27	HXE14302	1	Yoke	1886CC
27	HXE28385	1	Yoke	2096CC
28	19M9492	2	Screw	M8 X 12
29	AH169196	1	Dowel Pin	-
30	24H1452	1	Washer	1-1/32" X 1-3/4" X 0.105", Motor, LH
31	N375572	1	Bolt	Motor, LH

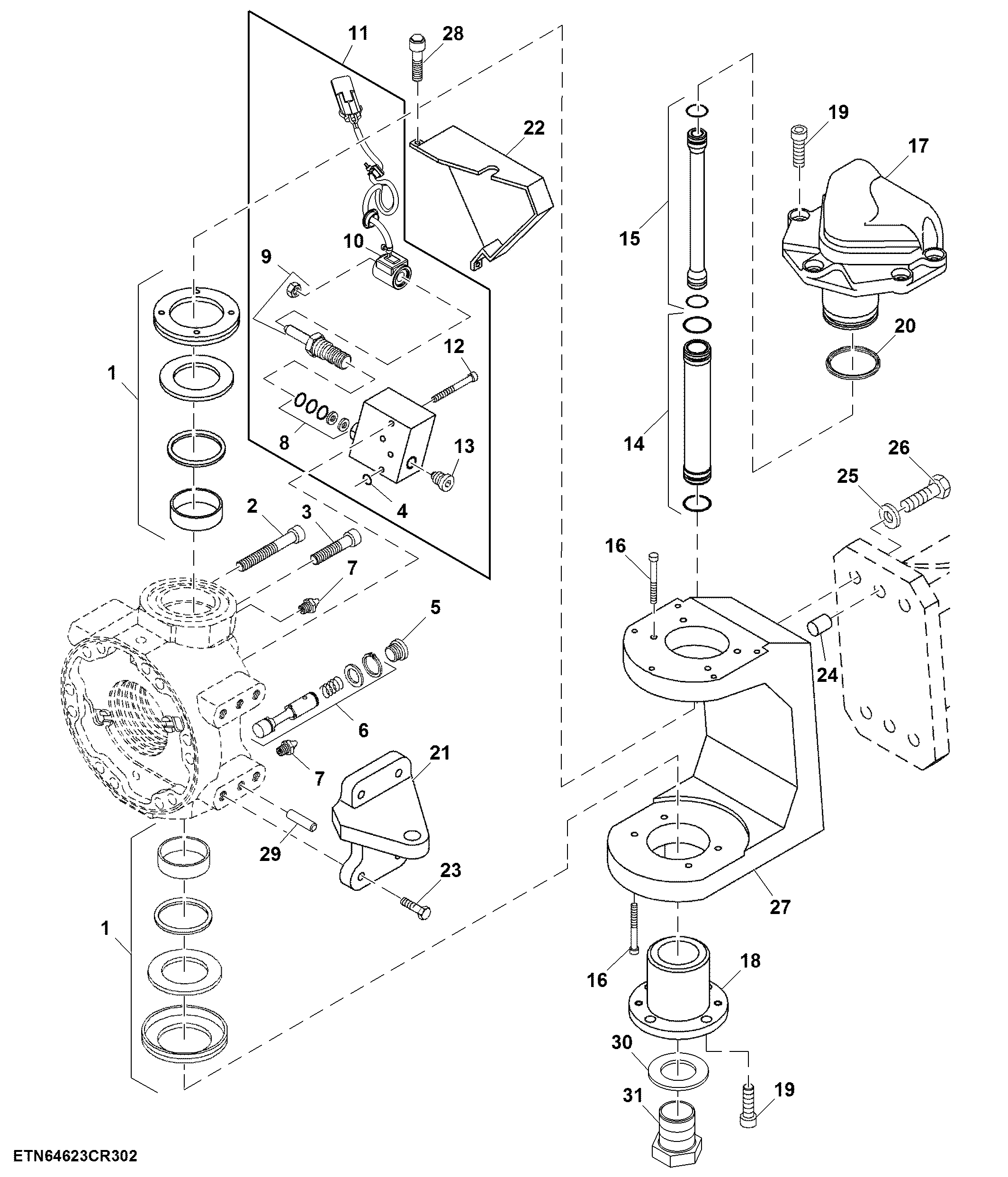

Powered Rear Wheel Motor Valve, C Frame and Pivot

Нет текстового описания
