Открытый узел

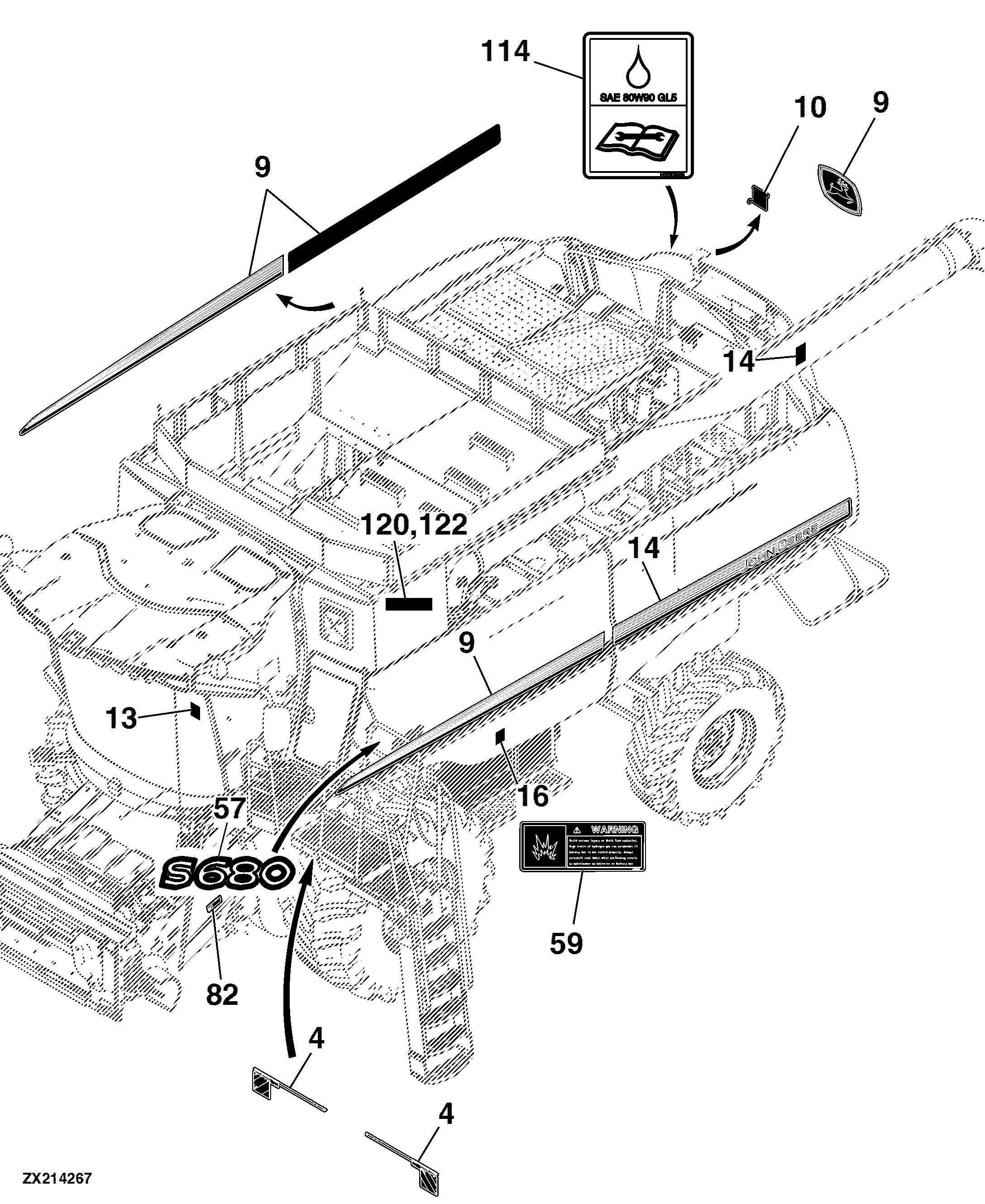

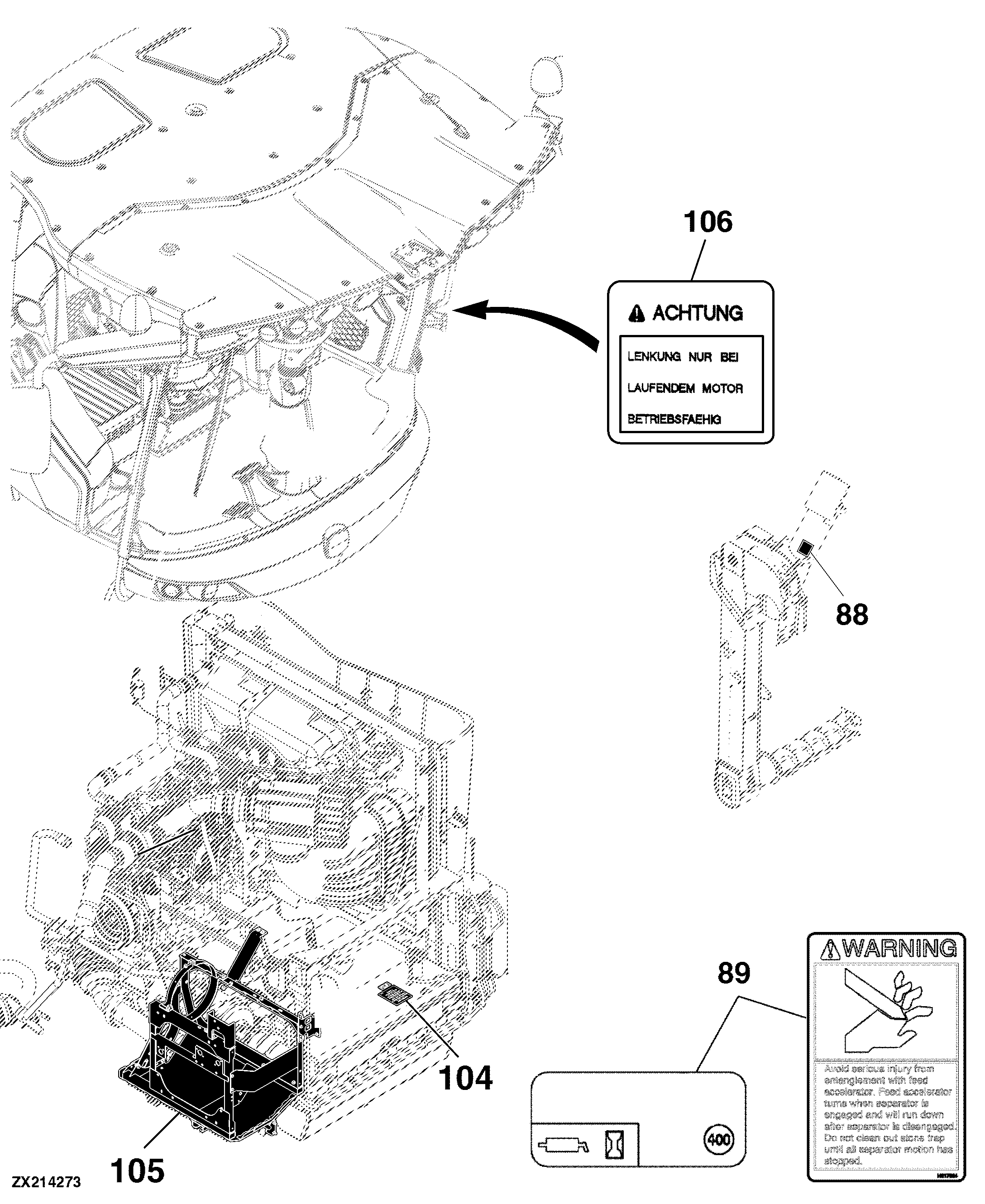

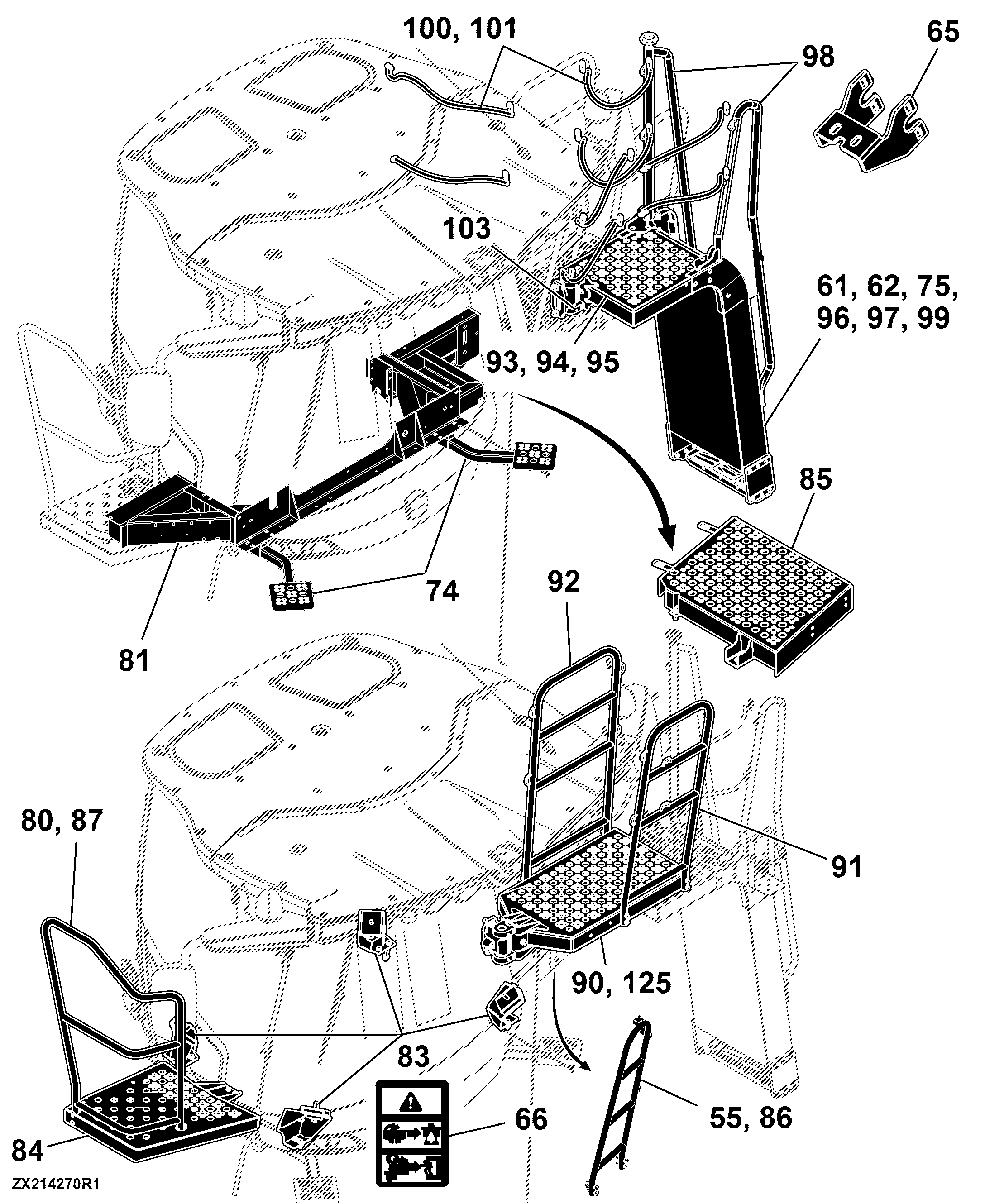

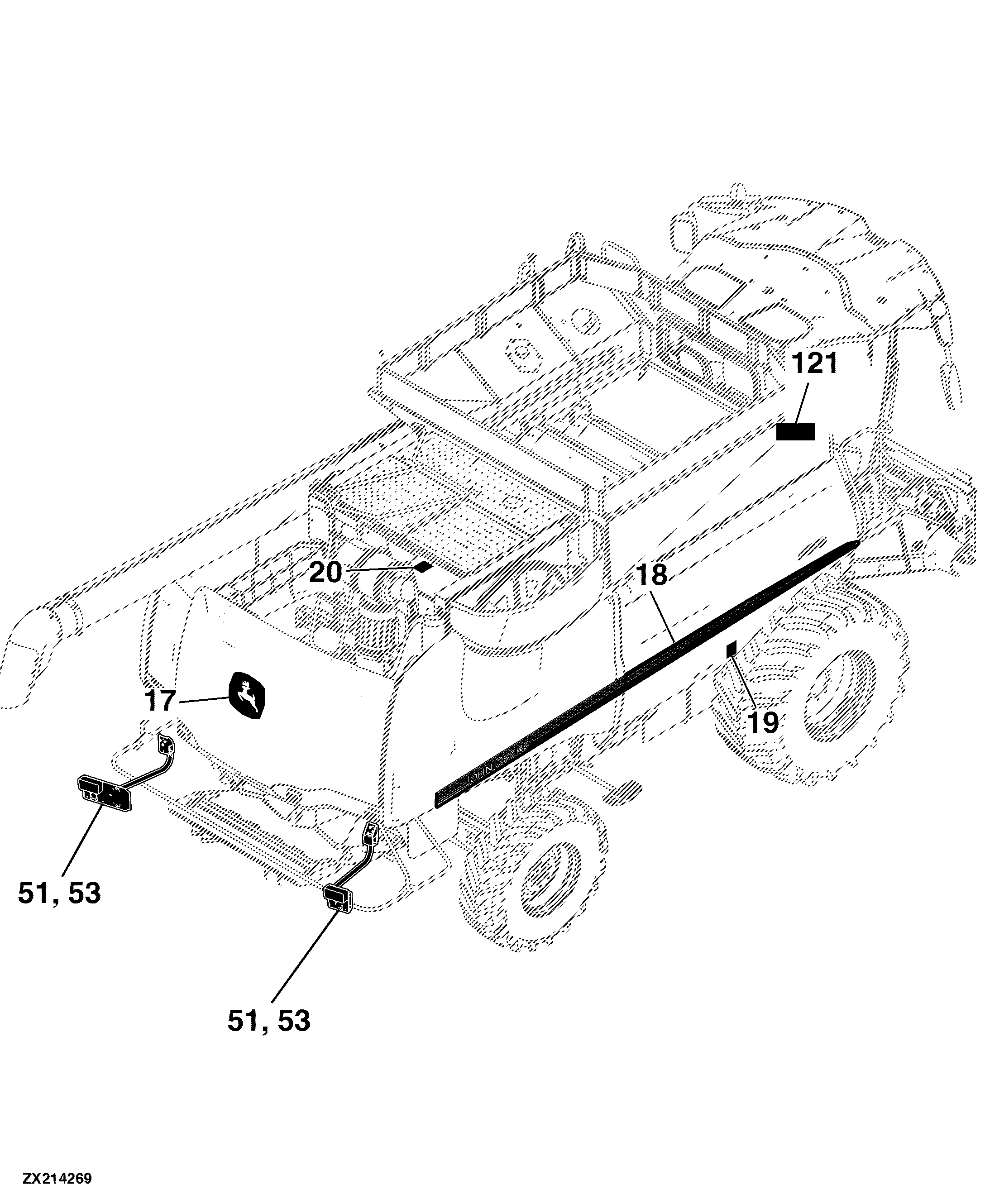

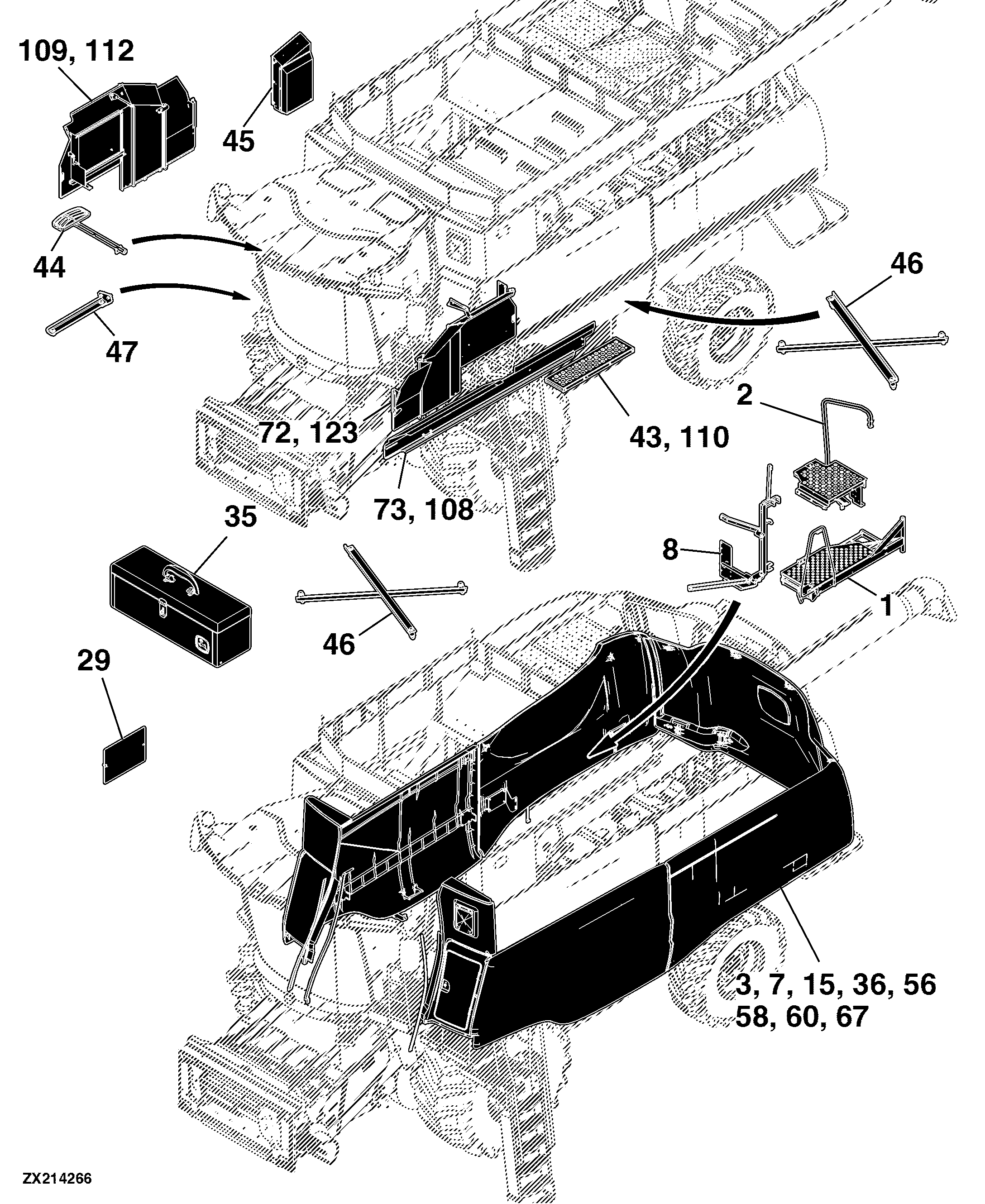

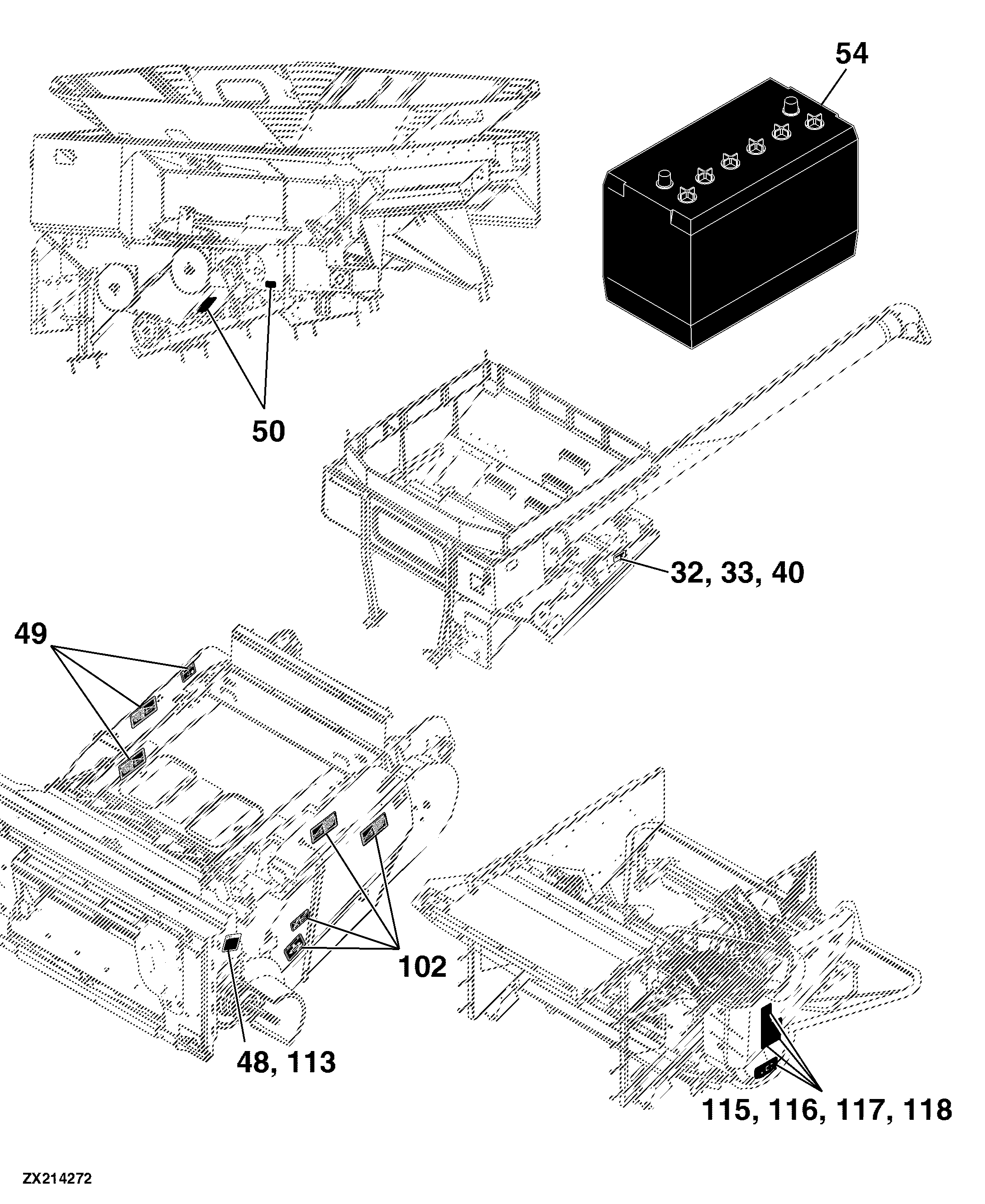

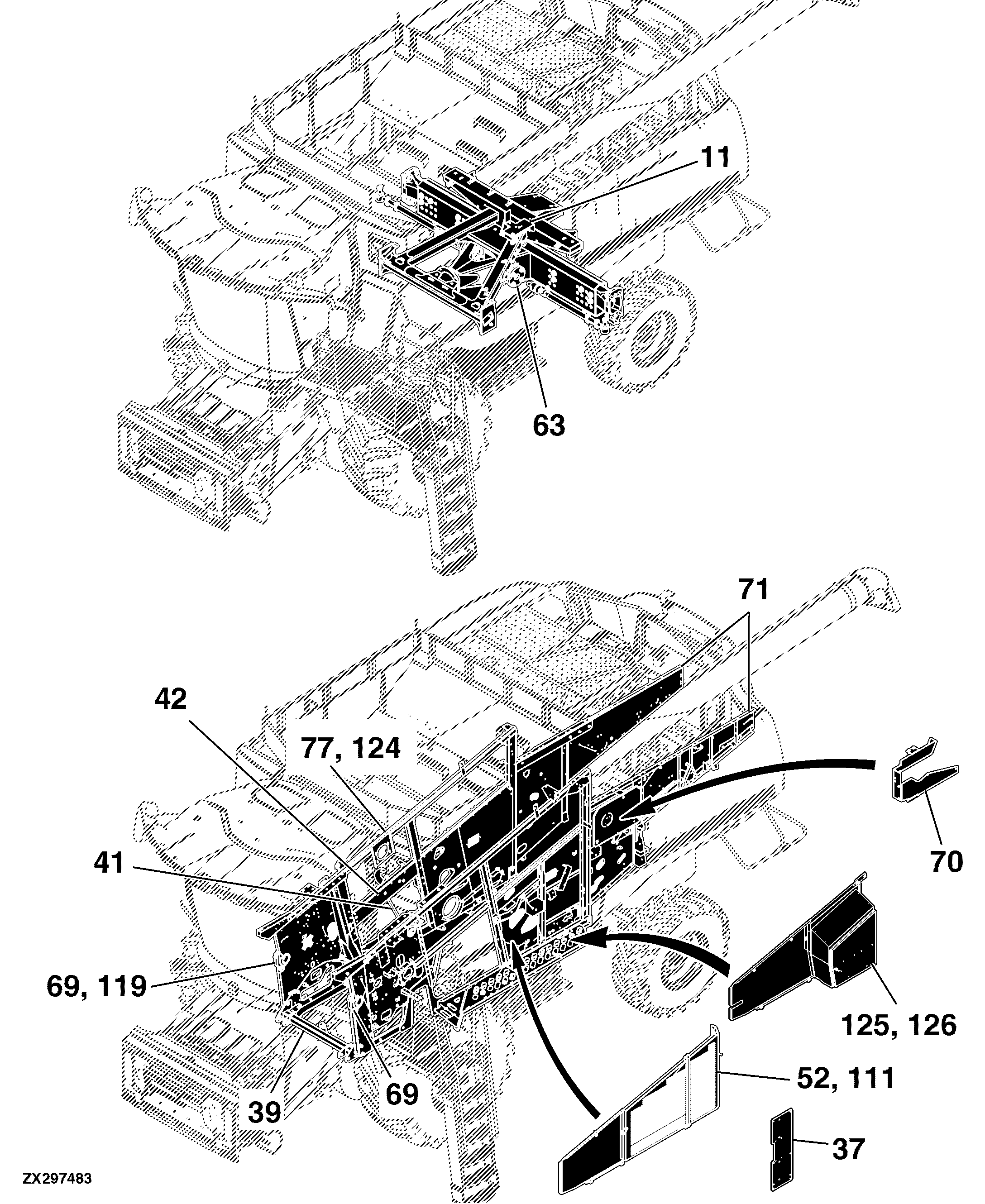

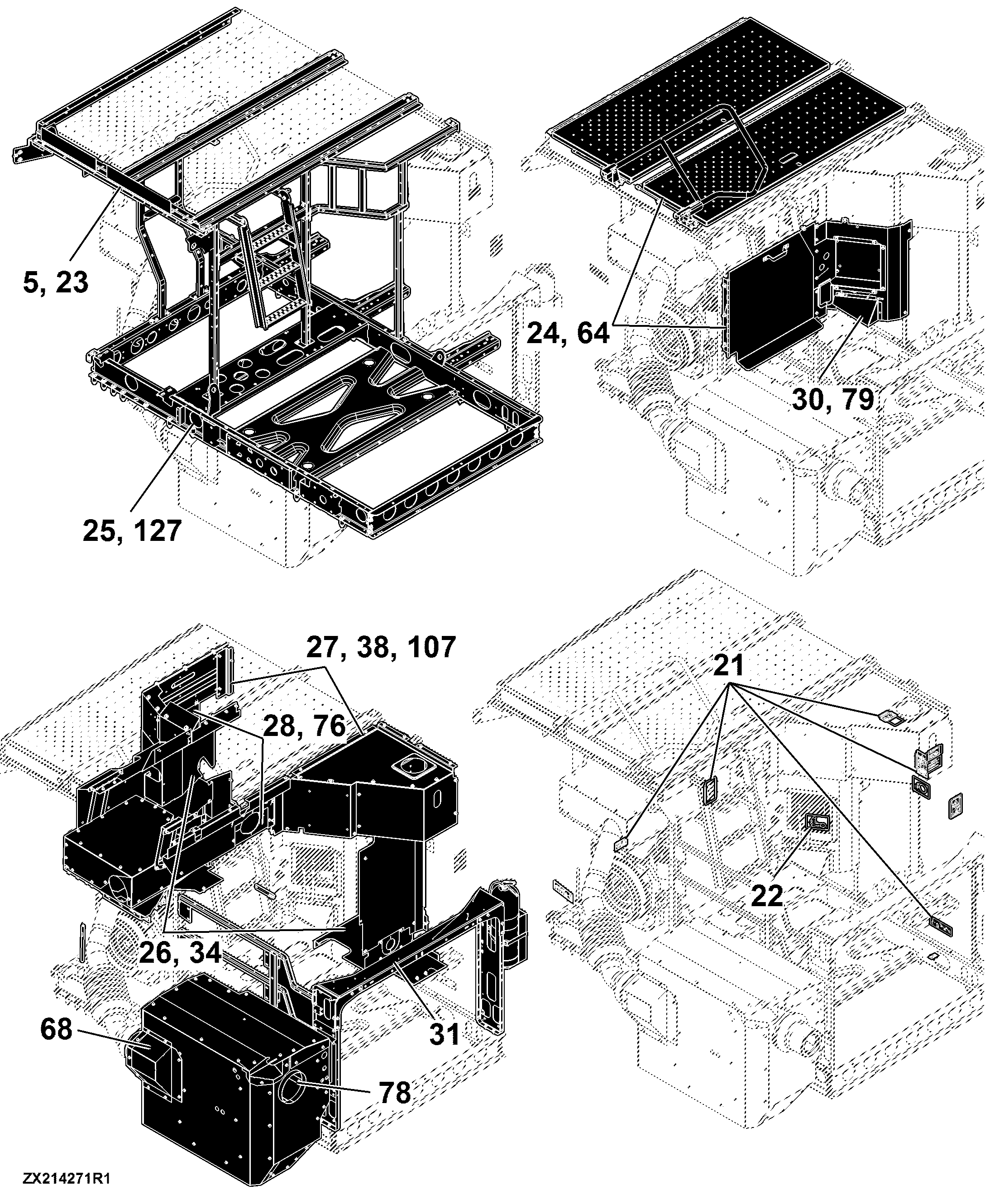

80 Frame, Miscellaneous Combine S680 - MY15

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Platform Extension, 230 mm, 9"	-
-	-	1	Main Frame - Premium Residue Sidesheet Extension	-
-	-	1	Main Frame Sidesheet Hardware	-
-	-	1	Main Frame Sidesheet Hardware	-
-	-	1	Midsill Reinforcement	-
-	-	1	Model Decal	-
-	-	1	Model Number Decal	-
-	-	1	Mounting Brackets Kit, Main Engine Gear Case	-
-	-	1	Panel, Manifold Deflectors	-
-	-	1	Lower Shield, LH	-
-	-	1	Platform Extension, 330 mm	-
-	-	1	Platform, Dual Tire Extension	-
-	-	1	Platform, Ladder Pivot and Pivot Receiver	-
-	-	1	Ram Support Frame	-
-	-	1	Rear Fixed Ladder Landing	-
-	-	1	Rear Rail Support	-
-	-	1	Rear Wall Bracket	-
-	-	1	Rear Wall Bracket Styling Attachment	-
-	-	1	Lower Shield, 26" Track, LH	-
-	-	1	Level Land Drive Shield, RH	-
-	-	1	Large Toolbox, Attachment	-
-	-	1	Large Toolbox	-
-	-	1	Landing Platform Assembly RH	-
-	-	1	Landing Platform Assembly LH, Single Tire	-
-	-	1	Ladder, Double Hanger Step, Short	-
-	-	1	Ladder, Double Hanger Step, Long	-
-	-	1	Ladder Label, Text Free	-
-	-	1	Ladder Handrail	-
-	-	1	Label, Premium, Extra Fine Cut, Electrical Tailboard, For Europe	-
-	-	1	Label, Caution No Power Steering	-
-	-	1	Label Kit, Text Free	-
-	-	1	Label Kit, Premium Advanced Power (For Europe)	-
-	-	1	Label Kit (For Europe)	-
-	-	1	Steering Cylinder Mounting Parts	-
-	-	1	Upper Shilelds, Level Land, LH	-
-	-	1	Upper Shield, LH	-
-	-	1	Toolbox	-
-	-	1	Text Free Separator Decal W/ Rethresher	-
-	-	1	Text Free Hydraulic Label, ProDrive™	-
-	-	1	Text Free Decal, Folding Unloading Auger, 6.9 m (22.6 ft)	-
-	-	1	Swing-Out Ladder Landing	-
-	-	1	Supports / Panels / Covers, Interim Tier 4 / Final Tier 4	-
-	-	1	Support Structure, Exhaust Pipe, 13.5 L	-
-	-	1	Styling, Flagpole Supports, RH	-
-	-	1	Styling Panels	-
-	-	1	Styling Decals	-
-	-	1	Styling Decal, HillMaster™	-
-	-	1	Styling Attachment, Wide Body, Final Tier 4	-
-	-	1	Step Assembly	-
-	-	1	ISO Ladder, Long, Extended Hanger	-
-	-	1	Speed Decals, 30 km/h	-
-	-	1	Speed Decals, 25 km/h	-
-	-	1	Speed Decals, 20 km/h	-
-	-	1	Shoe Light Switch Bracket	-
-	-	1	Shoe Drive Support, RH	-
-	-	1	Shield Support Anchor	-
-	-	1	Serial Number Plate Hardware - Europe	-
-	-	1	Safety Sign, Rear Warning / Parking	-
-	-	1	Safety Sign, Front Warning / Parking	-
-	-	1	Safety Decals And Locations	-
-	-	1	Safety Decal - Text Free	-
-	-	1	Right Hand Shields	-
-	-	1	Rethresher Step	-
-	-	1	Rear Warning Reflectors And Arms, Wide Body, Long Arms, Europe	-
-	-	1	Rear Warning Reflectors / Arms, Wide Body, Short Arms, Europe	-
-	-	1	Decals, LH, Non Text	-
-	-	1	Dual Tire Platform Extension, Attachment	-
-	-	1	Dual Tire Extension Handrail, Rear	-
-	-	1	Dual Tire Extension Handrail, Front	-
-	-	1	Dual Extension Platform Safety Chain, Single Tire W/ Wedge	-
-	-	1	Dual Extension Platform Safety Chain	-
-	-	1	Discharge Beater Shielding	-
-	-	1	Deflectors, Engine Manifold, Final Tier 4	-
-	-	1	Deflector, Tier 2	-
-	-	1	Deflector / Covers, 9 L, Tier 2	-
-	-	1	Decals, Top, Non Text	-
-	-	1	Decals, RH, Non Text	-
-	-	1	Decals, RH, Non Text	-
-	-	1	Decals, RH, Non Text	-
-	-	1	Decals, Rear, Non Text	-
-	-	1	Decals, LH, Non Text	-
-	-	1	Electrical Chassis Mounting Bracket	-
-	-	1	Decals, LH, Non Text	-
-	-	1	Decals, Front, Non Text	-
-	-	1	Decals - Engine Platform Text Free	-
-	-	1	Cross Tie Support	-
-	-	1	Covers, After Treatment Enclosure, 13.5 L, Interim Tier 4	-
-	-	1	Cover, Hot Air Recirculation - 13.5 L, Final Tier 4 / Interim Tier 4	-
-	-	1	Cover / Support / Panel, Tier 2	-
-	-	1	Clean Grain Elevator Decals	-
-	-	1	Catwalk Step Assembly-Tracks	-
-	-	1	Cab Support, Strut Support, and Hardware	-
-	-	1	Cab Mounting Bracket	-
-	-	1	Bracket, Lower Side Sheet Extension	-
-	-	1	Body Shield Locking Hardware (For Europe)	-
-	-	1	Battery Label Safety Decal	-
-	-	1	Battery Box, Dual, Vertical	-
-	-	1	Feeder house Step Assembly	-
-	-	1	ISO Ladder, Extended Hanger, Short	-
-	-	1	ISO Ladder, Extended Hanger	-
-	-	1	ISO Ladder Support	-
-	-	1	Hose Bundle Shields, HillMaster™	-
-	-	1	Hose Bundle Shields	-
-	-	1	Handrail, Front, LH	-
-	-	1	Handrail, Cab Support, Platform	-
-	-	1	Handrail Assembly, RH	-
-	-	1	Grain Tank Text Free Decals w/ Extensions	-
-	-	1	Grain Tank Text Free Decals	-
-	-	1	Grain Tank Cover Mounted Decals, Text Free	-
-	-	1	Gear Lubrication Decal, ProDrive™	-
-	-	1	Fuel Type Decal	-
-	-	1	Feeder House Tilt Frame Labels (For Europe)	-
-	-	1	Feeder House Tilt Frame Decals	-
-	-	1	Air Recirculation Covers	-
-	-	1	Feeder House Pivot Retainer	-
-	-	1	Feeder House Pivot Retainer	-
-	-	1	Feeder House Labels (For Europe)	-
-	-	1	Feeder House Labels (For Brazil)	-
-	-	1	Engine Top Doors and Handrail	-
-	-	1	Engine Platform Top Covers	-
-	-	1	Engine Platform Top Covers	-
-	-	1	Engine Platform Panels	-
-	-	1	Engine Platform Belt Routing Decals - Interim Tier 4	-
-	-	1	Engine Deck	-
-	-	1	Engine Covers, Support Structure	-
-	-	1	Engine Covers, Support Structure	-
-	-	1	Engine Covers, Interim Tier 4	-
-	-	1	Engine Covers, Doors, and Handrail	-
-	-	1	Engine Covers / Rear Wall Support	-

80 Frame, Miscellaneous Combine S680 - MY15

Нет текстового описания
