Left Control Unit 2, Main Wiring Harness (2 of 5)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
14	57M9218	1	Elec. Connector Seal	-
14	57M9217	1	Elec. Connector Seal	-
14	57M9219	1	Elec. Connector Seal	-
14	R78064	5	Elec. Connector Cavity Plug	-
14	57M7299	1	Elec. Connector Terminal	-
14	57M7491	1	Elec. Connector Terminal	-
14	57M9083	1	Elec. Connector Accessory	-
14	57M8983	1	Elec. Connector Housing	LH , Power Module 2B (J2 Black)
15	57M8294	2	Elec. Connector Terminal	-
15	57M7491	3	Elec. Connector Terminal	-
15	57M9083	1	Elec. Connector Accessory	-
15	57M9216	3	Elec. Connector Seal	-
15	R78064	3	Elec. Connector Cavity Plug	-
15	57M8985	1	Elec. Connector Housing	LH , Power Module 2B (J1 GREEN)
16	57M7309	1	Elec. Connector Housing	RH , Main Harness / LC2 Main Harness
16	57M7306	1	Elec.Connect Locking Device	-
16	57M7299	2	Elec. Connector Terminal	-
16	57M9217	2	Elec. Connector Seal	-
17	AXE22032	1	Electrical Connector Assy	LF Fuse Center (J7)
17	57M8543	3	Elec. Connector Terminal	-
17	57M8565	1	Elec. Connector Terminal	-
17	57M8572	6	Elec. Connector Cavity Plug	-
18	AXE22037	1	Electrical Connector Assy	LF Fuse Center (J8)
18	57M8543	11	Elec. Connector Terminal	-
18	57M8565	1	Elec. Connector Terminal	-
18	57M8572	2	Elec. Connector Cavity Plug	-

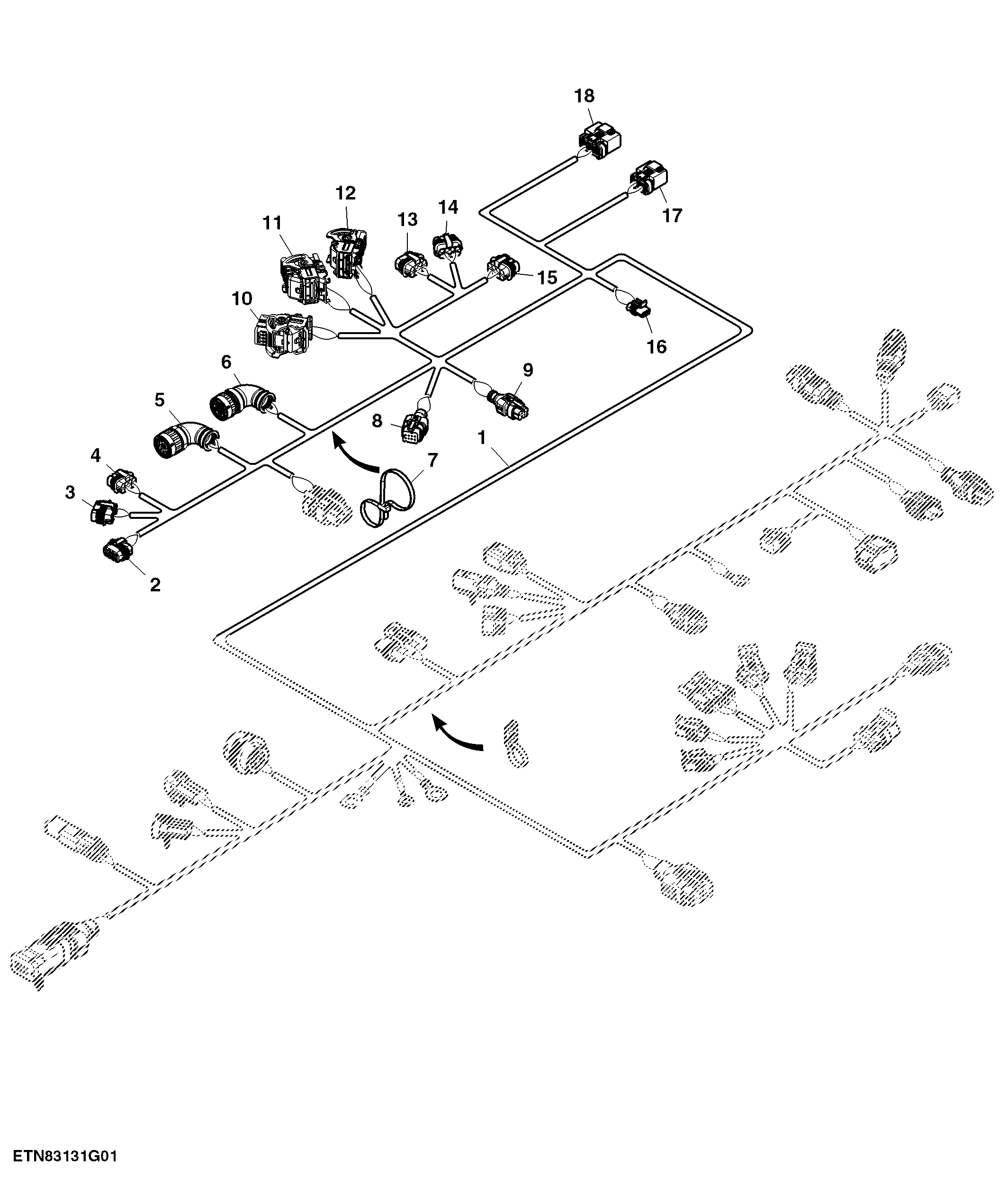

Left Control Unit 2, Main Wiring Harness (2 of 5)

Нет текстового описания
