Открытый узел

Wiring Harness, Left Control Unit 1 (5 of 5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE34182	1	Wiring Harness	SUB FOR AXE21312 AND AXE22365
2	57M7144	1	Elec. Connector Housing	Washer Pump
2	57M9215	2	Elec. Connector Seal	-
3	57M9217	1	Elec. Connector Seal	-
3	57M9219	1	Elec. Connector Seal	-
3	57M9549	2	Elec. Connector Seal	-
3	57M9216	3	Elec. Connector Seal	-
3	57M9083	1	Elec. Connector Accessory	TPA
3	57M7297	1	Elec. Connector Terminal	-
3	57M7299	1	Elec. Connector Terminal	-
3	57M7491	5	Elec. Connector Terminal	-
3	57M7491	1	Elec. Connector Terminal	LPC1 J3 (BL)
4	57M8983	1	Elec. Connector Housing	LPC1 J2 (BK)
4	57M7299	6	Elec. Connector Terminal	-
4	57M9217	6	Elec. Connector Seal	-
4	57M9083	1	Elec. Connector Accessory	TPA
5	57M7299	3	Elec. Connector Terminal	-
5	57M9083	1	Elec. Connector Accessory	TPA
5	57M8294	2	Elec. Connector Terminal	-
5	57M7491	3	Elec. Connector Terminal	-
5	57M8985	1	Elec. Connector Housing	LPC1 J1 (GN)
6	57M10606	1	Elec. Connector Housing	LCU 1 J3 (BL)
6	57M10514	4	Elec. Connector Terminal	-
6	57M10488	18	Elec. Connector Terminal	-
6	57M10330	2	Elec. Connector Terminal	-
6	57M10604	1	Elec. Connector Housing	CMC Wire Cap
7	57M10420	1	Elec. Connector Housing	LCU 1 J2 (Gray)
7	57M10488	18	Elec. Connector Terminal	-
7	57M10330	4	Elec. Connector Terminal	-
7	57M10330	1	Elec. Connector Terminal	-
7	57M10617	2	Elec. Connector Housing	-
7	57M10613	1	Elec. Connector Housing	-
8	57M10604	1	Elec. Connector Housing	CMC Wire Cap
8	57M10514	3	Elec. Connector Terminal	-
8	57M10330	4	Elec. Connector Terminal	-
8	57M10420	1	Elec. Connector Housing	LCU1 J1 (BN)
8	57M10488	19	Elec. Connector Terminal	-
9	57M7260	1	Elec. Connector Housing	Can Terminator
9	57M7494	4	Elec. Connector Terminal	-
9	57M7291	1	Electrical Connector Assy	Secondary Lock (Gray)
9	-	1	Part 41	Terminator
10	57M10421	4	Elec. Connector Accessory	-
11	57M10528	35	Elec. Connector Accessory	-
12	57M10233	21	Tie Band	-
13	24M7207	2	Washer	8.400 X 24 X 2 mm
14	H94433	1	Grommet	-
15	57M9188	3	Clip	-
16	14M7298	17	Flange Nut	M8
17	14M7303	1	Flange Nut	M6
18	19M7865	1	Screw	M8 X 16
19	19M7866	3	Screw	M8 X 20
20	19M7867	12	Screw	M8 X 25
21	19M7798	1	Screw	M8 X 40
22	19M8040	1	Screw	M6 X 60
23	37M7149	1	Screw	M8 X 50
24	57M8035	4	Nut	-
25	57M9061	4	Elec.Connect Locking Device	-
26	H130269	1	Spacer	-
27	H224072	6	Clamp	-
28	AH89557	3	Clip	-
29	H224073	8	Tie Band	-
30	AH130222	1	Clamp	-
31	R44302	5	Tie Band	-
32	H175881	1	Snap Ring	-
33	-	1	Part 65	CTL 90 mm, MF AH122244
34	19M7800	1	Screw	M8 X 50
35	M81210	1	Clamp	-
36	GX22456	20	Screw	-
37	-	2	Part 69	CTL 150 mm, MF AH122244

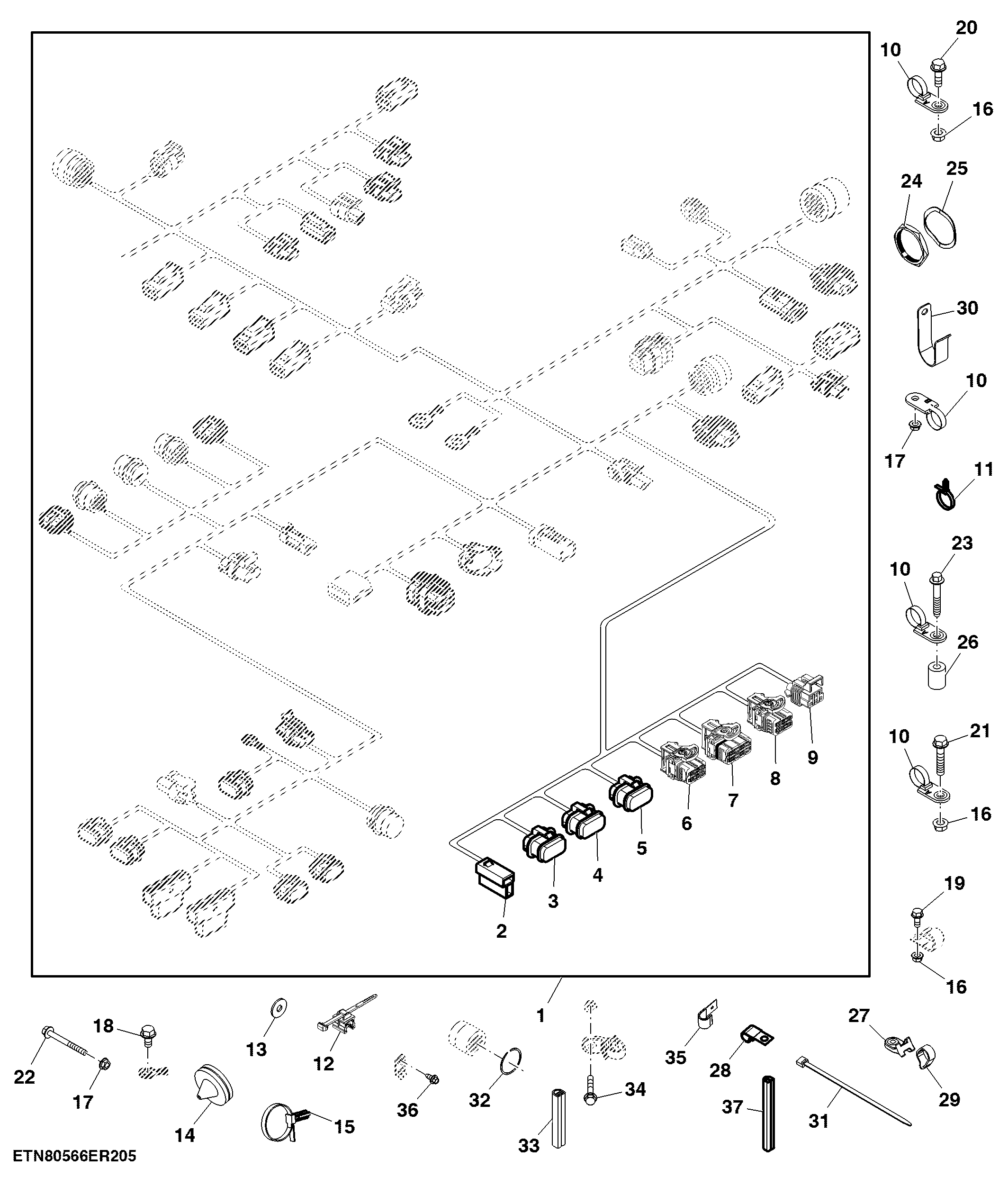

Wiring Harness, Left Control Unit 1 (5 of 5)
