Wiring Harness, 30 KPH, Prodrive™

Wiring Harness, 30 KPH, Prodrive™

Wiring Harness, 30 KPH, Prodrive™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Wiring Harness, 30 KPH, Prodrive™

Нет текстового описания

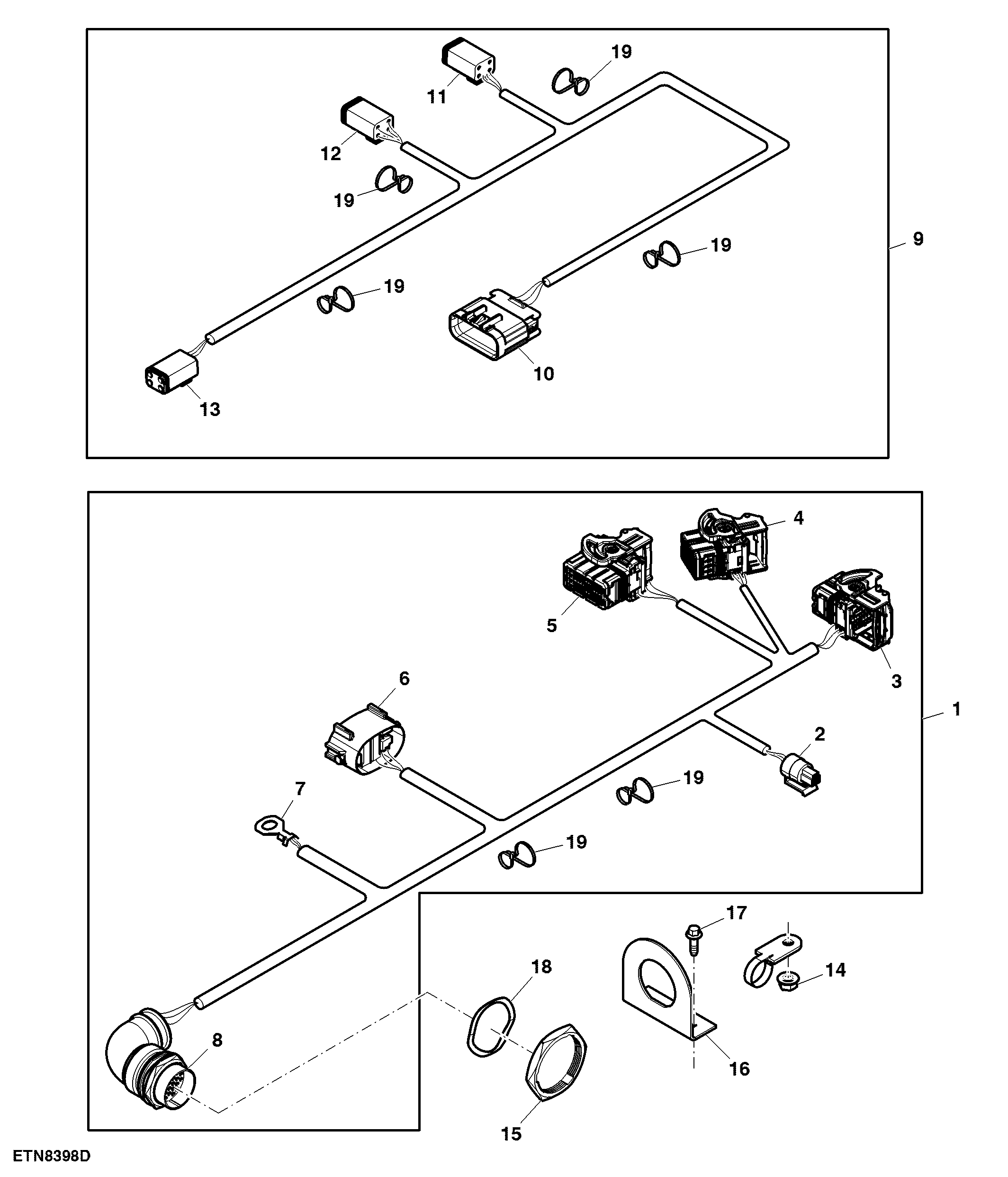

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE18327	1	Wiring Harness	ProDrive™ Controller
2	57M9652	1	Elec. Connector Terminal	Accumulator Charge Pressure Sensor
2	57M7496	3	Elec. Connector Terminal	Cavity A, B, C
3	57M8519	1	Elec. Connector Housing	J1, PTP Black
3	57M10514	11	Elec. Connector Terminal	Cavity B2, B4, C1, C4, D4, E4, F4, G2, G4, H3, H4
3	57M10330	2	Elec. Connector Terminal	Cavity E1, E2
3	57M10604	1	Elec. Connector Housing	-
4	57M8527	1	Elec. Connector Housing	J2, PTP Brown
4	57M10514	23	Elec. Connector Terminal	Cavity A1, B1, B4, D1, D3, E3, E4, F3, H4, J1, J2, K1, K2, K3, K4, L1, L2, L3, L4, M1, M2, M3, M4
4	57M10330	2	Elec. Connector Terminal	Cavity A4, D4
4	57M10613	1	Elec. Connector Housing	-
5	57M10604	1	Elec. Connector Housing	-
5	57M10330	1	Elec. Connector Terminal	Cavity E1
5	57M10514	10	Elec. Connector Terminal	Cavity A3, B2, D3, E4, F2, F3, G1, G2, G4, H1
5	57M10607	1	Elec. Connector Housing	J3, PTP Gray
6	57M10409	1	Elec. Connector Housing	Inline to LC1
6	57M8324	3	Elec. Connector Terminal	Cavity 1, 38, 39
6	57M9223	17	Elec. Connector Seal	Cavity 4, 5, 6, 9, 15, 16, 17, 18, 19, 25, 29, 30, 32, 33, 34, 35, 40
6	57M8300	2	Elec. Connector Terminal	Cavity 4, 25,
6	57M8561	10	Elec. Connector Terminal	Cavity 5, 9, 15, 18, 19, 29, 30, 32, 33 40
6	57M8304	3	Elec. Connector Terminal	Cavity 6, 38, 39
6	57M8302	2	Elec. Connector Terminal	Cavity 34, 35
6	57M8915	2	Elec. Connector Terminal	Cavity 16, 17
7	57M9535	1	Elec. Connector Terminal	Transmission Ground
8	57M8704	1	Elec. Connector Accessory	-
8	57M8164	20	Elec. Connector Terminal	Cavity 1, 2, 4, 5, 6, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 20, 24, 26, 27, 29
8	57M9512	1	Elec. Connector Housing	PTP Transmission
8	57M9812	6	Elec. Connector Terminal	Cavity 3, 7, 18, 21, 22, 23
9	AXE18220	1	Wiring Harness	AST Valve Harness
10	57M9522	1	Elec. Connector Housing	Left Control Unit 2
10	57M9223	8	Elec. Connector Seal	Cavity A, B, C, D, F, G, K, L
10	57M8306	2	Elec. Connector Terminal	Cavity A, G
10	57M9539	3	Elec. Connector Terminal	Cavity B, C, D
10	57M10794	3	Elec. Connector Terminal	Cavity F, K, L
10	57M8910	1	Clip	-
11	57M10530	1	Elec. Connector Housing	Forward Hydro Pressure
11	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 4
11	57M8016	1	Elec.Connect Locking Device	-
12	57M10530	1	Elec. Connector Housing	Reverse Hydro Pressure
12	57M8016	1	Elec.Connect Locking Device	-
12	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 4
13	57M10530	1	Elec. Connector Housing	Hydro Pump Valve
13	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
13	57M8016	1	Elec.Connect Locking Device	-
13	57M10475	1	Elec. Connector Accessory	-
14	14M7298	1	Flange Nut	M8
15	57M8035	1	Nut	-
16	H224063	1	Plate	-
17	37M7131	5	Screw	M6 X 20
18	57M9061	1	Elec.Connect Locking Device	-
19	H224073	6	Tie Band	-
