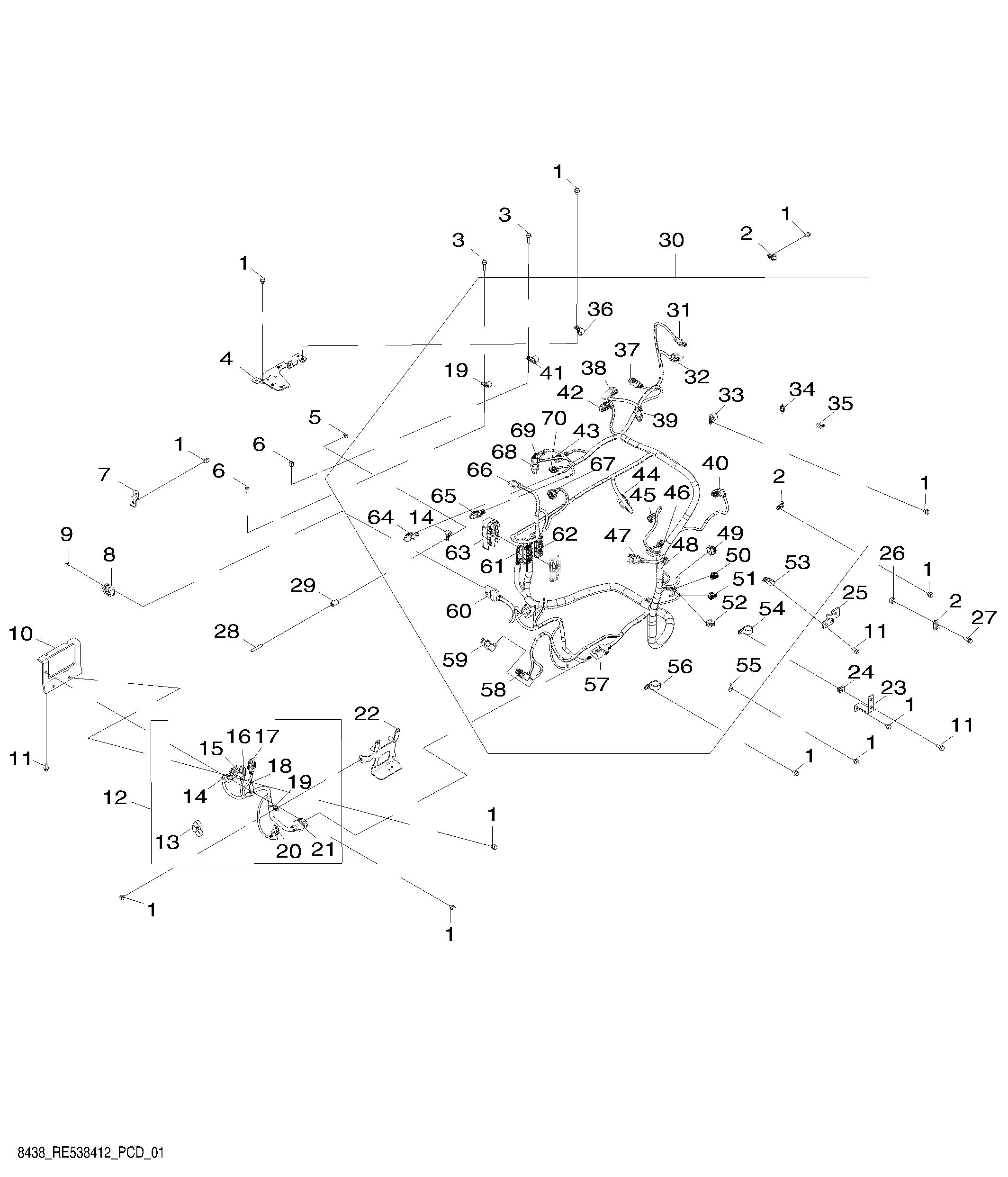

8438 Engine Wiring Harness ( - 047937)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE524730	19	Cap Screw	-
2	57M10947	3	Clamp	-
3	19M7868	2	Screw	M8 X 30
4	RE567241	1	Bracket	SUB FOR R531498 AND RE548665
5	14M7524	1	Flange Nut	M8
6	28H3376	2	Spacer	0.364" X 0.540" X 9/16"
7	R531632	1	Bracket	-
8	57M9800	1	Elec. Connector Housing	-
9	57M9814	12	Elec. Connector Cavity Plug	-
10	R529290	1	Bracket	-
11	19M7866	5	Screw	M8 X 20
12	RE545525	1	Wiring Harness	-
13	R213663	2	Clamp	-
14	57M10828	4	Clamp	-
15	57M9787	1	Elec. Connector Housing	-
15	57M9841	1	Elec. Connector Accessory	-
16	57M9774	1	Elec. Connector Housing	-
16	57M9837	1	Elec. Connector Accessory	-
17	57M9780	1	Elec. Connector Housing	-
17	57M9838	1	Elec. Connector Accessory	-
18	57M10841	1	Clamp	-
19	57M10822	4	Clamp	-
20	57M9772	1	Elec. Connector Housing	-
20	57M10155	1	Elec. Connector Accessory	-
21	57M9802	1	Elec. Connector Housing	-
21	57M9844	1	Elec. Connector Accessory	-
22	RE551464	1	Bracket	-
23	R529289	1	Bracket	-
24	M84971	1	Nut	-
25	RE546090	1	Bracket	-
26	R127155	1	Spacer	-
27	19M7867	1	Screw	M8 X 25
28	Z37478	1	Stud	-
30	RE545577	1	Wiring Harness	ORDER RE552416 AND RE551464
30	RE552416	1	Wiring Harness	SUB FOR RE545577
31	57M9773	1	Elec. Connector Housing	-
31	57M10155	1	Elec. Connector Accessory	-
32	57M9786	1	Elec. Connector Housing	-
33	57M10823	1	Clamp	-
34	RE258807	4	Tie Band	-
35	57M9940	2	Elec. Connector Accessory	-
36	57M10829	1	Clamp	-
37	57M9774	1	Elec. Connector Housing	-
37	57M9837	1	Elec. Connector Accessory	-
38	57M9786	1	Elec. Connector Housing	-
39	57M9773	1	Elec. Connector Housing	-
39	57M9837	1	Elec. Connector Accessory	-
40	57M9781	1	Elec. Connector Housing	-
40	57M10156	1	Elec. Connector Accessory	-
41	57M10837	2	Clamp	-
42	57M9780	1	Elec. Connector Housing	-
42	57M10156	1	Elec. Connector Accessory	-
43	57M9773	1	Elec. Connector Housing	-
43	57M9837	1	Elec. Connector Accessory	-
44	57M9792	1	Elec. Connector Housing	-
44	57M9843	1	Elec. Connector Accessory	-
45	57M8407	1	Elec. Connector Housing	-
46	57M9828	1	Elec. Connector Housing	-
47	57M9788	1	Elec. Connector Housing	-
47	57M9841	1	Elec. Connector Accessory	-
48	57M9775	1	Elec. Connector Housing	-
49	57M9144	1	Elec. Connector Housing	-
50	57M10317	1	Elec. Connector Housing	-
51	57M10315	1	Elec. Connector Housing	-
52	57M10318	1	Elec. Connector Housing	-
53	57M10824	3	Clamp	-
54	57M10825	1	Clamp	-
55	57M8868	1	Elec. Connector Terminal	-
56	57M10826	1	Clamp	-
57	57M9844	1	Elec. Connector Accessory	-
57	57M9825	1	Elec. Connector Housing	-
58	57M9775	1	Elec. Connector Housing	-
59	57M9782	1	Elec. Connector Housing	-
59	57M10156	1	Elec. Connector Accessory	-
60	57M9804	1	Elec. Connector Housing	-
60	57M9844	1	Elec. Connector Accessory	-
61	RE538504	1	Elec. Connector Accessory	-
62	RE538503	1	Elec. Connector Accessory	-
63	R528122	2	Elec. Connector Accessory	-
64	57M9838	1	Elec. Connector Accessory	-
64	57M9780	1	Elec. Connector Housing	-
65	57M9772	1	Elec. Connector Housing	-
65	57M9837	1	Elec. Connector Accessory	-
66	57M9774	1	Elec. Connector Housing	-
66	57M9837	1	Elec. Connector Accessory	-
67	57M9144	1	Elec. Connector Housing	-
68	57M9781	1	Elec. Connector Housing	-
68	57M10156	1	Elec. Connector Accessory	-
69	57M9782	1	Elec. Connector Housing	-
69	57M9838	1	Elec. Connector Accessory	-
70	57M10205	1	Elec. Connector Housing	-

8438 Engine Wiring Harness ( - 047937)
