Brake Drum, Push Button Shift Transmission, LH

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DE30237	1	Brake	-
2	DE30316	1	Spider	-
3	-	1	Part 3	Included In DE30308
4	-	4	Part 4	M8, ORDER DE30237
5	-	2	Part 5	M8 X 1.25 X 16, ORDER DE30237
6	DE30318	1	Cylinder Kit	-
7	-	2	Part 7	M8 X 1.25 X 20, ORDER DE30237
8	DE30306	2	Anchor	-
9	DE30313	2	Push Rod	-
10	DE30314	2	Shoe Kit	-
11	-	1	Part 11	Included In DE30312
12	-	1	Part 12	Included In DE30312
13	-	1	Part 13	Included In DE30305
14	-	1	Part 14	Included In DE30305
15	-	1	Part 15	Included In DE30305
16	-	3	Part 16	Included In DE30310
17	-	3	Part 17	Included In DE30310
18	-	1	Part 18	Included In DE30305
19	-	1	Part 19	Included In DE30305
20	-	1	Part 20	Included In DE30305
21	-	1	Part 21	Included In DE30305
22	-	2	Part 22	Included In DE30312
23	-	1	Part 23	Included In DE30317
24	-	1	Part 24	Included In DE30317
25	-	1	Part 25	Included In DE30317
26	-	1	Part 26	Included In DE30308
..	DE30305	1	Adjuster Kit	Included In DE30305
..	DE30310	1	Holder Kit	-
..	DE30312	1	Linkage Kit	-
..	DE30317	1	Spring Kit	-
..	DE30308	1	Plate Kit	-
..	DE30309	1	Bleed Valve	-

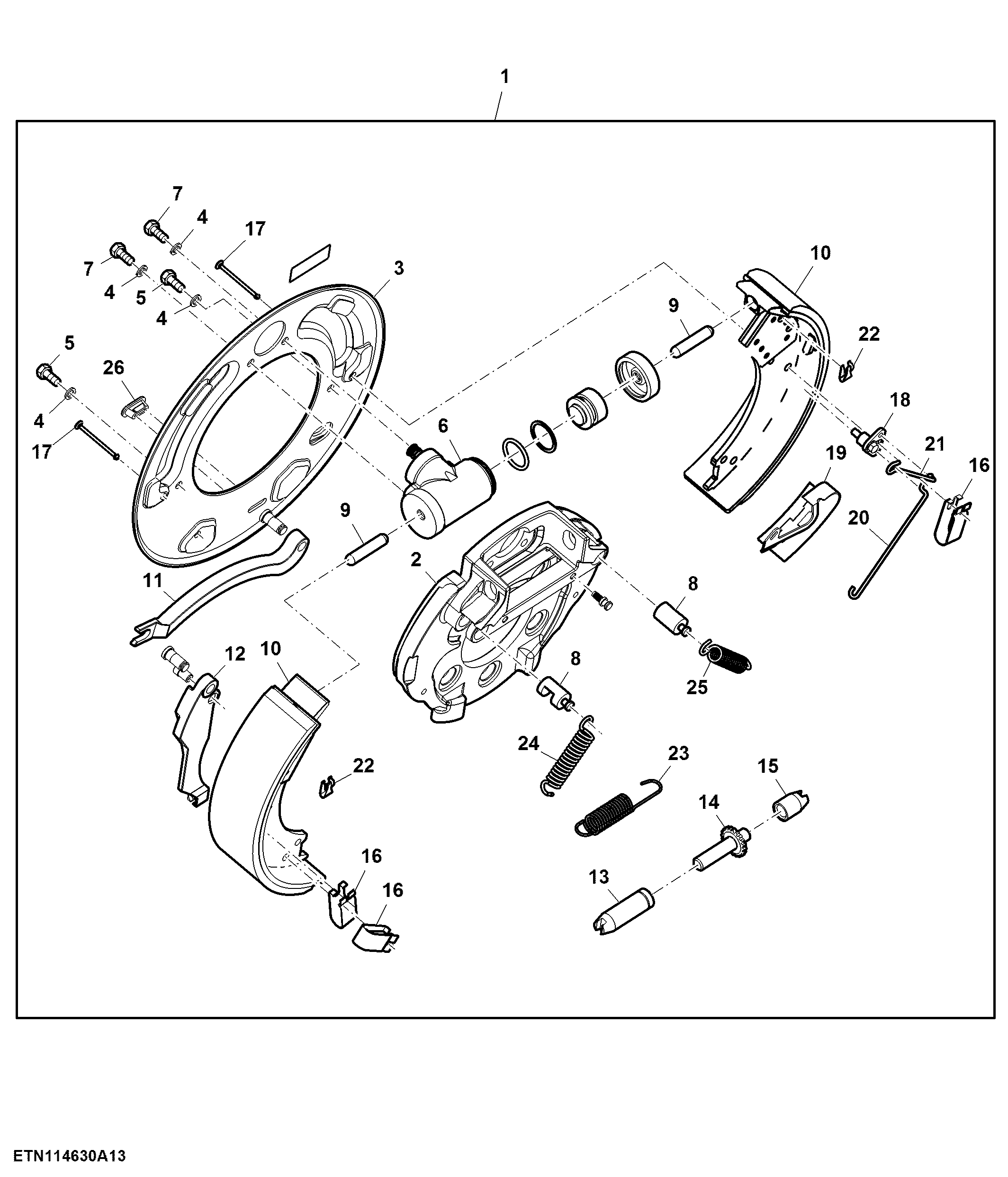

Brake Drum, Push Button Shift Transmission, LH

Нет текстового описания
