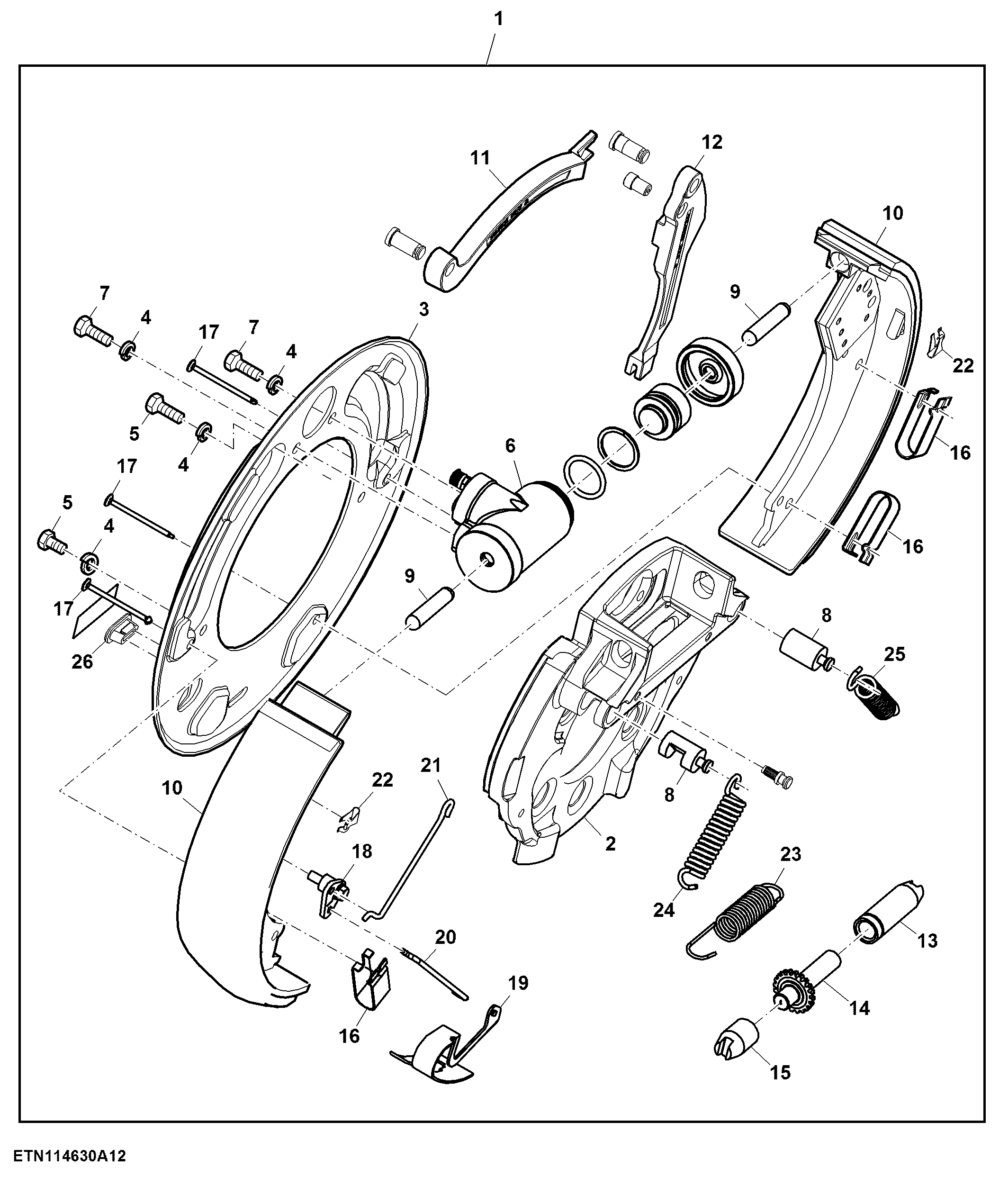

Brake Drum, Push Button Shift Transmission, RH

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DE30236	1	Brake	-
2	DE30315	1	Spider	-
3	-	1	Part 3	(Included In DE30307)
4	-	4	Part 4	M8
5	-	2	Part 5	M8 X 1.25 X 16
6	DE30318	1	Cylinder Kit	-
7	-	2	Part 7	M8 X 1.25 X 20
8	DE30306	2	Anchor	-
9	DE30313	2	Push Rod	-
10	DE30314	2	Shoe Kit	-
11	-	1	Part 11	(Included In DE30311)
12	-	1	Part 12	(Included In DE30311)
13	-	1	Part 13	(Included In DE30304)
14	-	1	Part 14	(Included In DE30304)
15	-	1	Part 15	(Included In DE30304)
16	-	3	Part 16	(Included In DE30310)
17	-	3	Part 17	(Included In DE30310)
18	-	1	Part 18	(Included In DE30304)
19	-	1	Part 19	(Included In DE30304)
20	-	1	Part 20	(Included In DE30304)
21	-	1	Part 21	(Included In DE30304)
22	-	2	Part 22	(Included In DE30311)
23	-	1	Part 23	(Included In DE30317)
24	-	1	Part 24	(Included In DE30317)
25	-	1	Part 25	(Included In DE30317)
26	-	1	Part 26	(Included In DE30307)
..	DE30304	1	Adjuster Kit	-
..	DE30310	1	Holder Kit	-
..	DE30311	1	Linkage Kit	-
..	DE30317	1	Spring Kit	-
..	DE30307	1	Plate Kit	-

Brake Drum, Push Button Shift Transmission, RH
